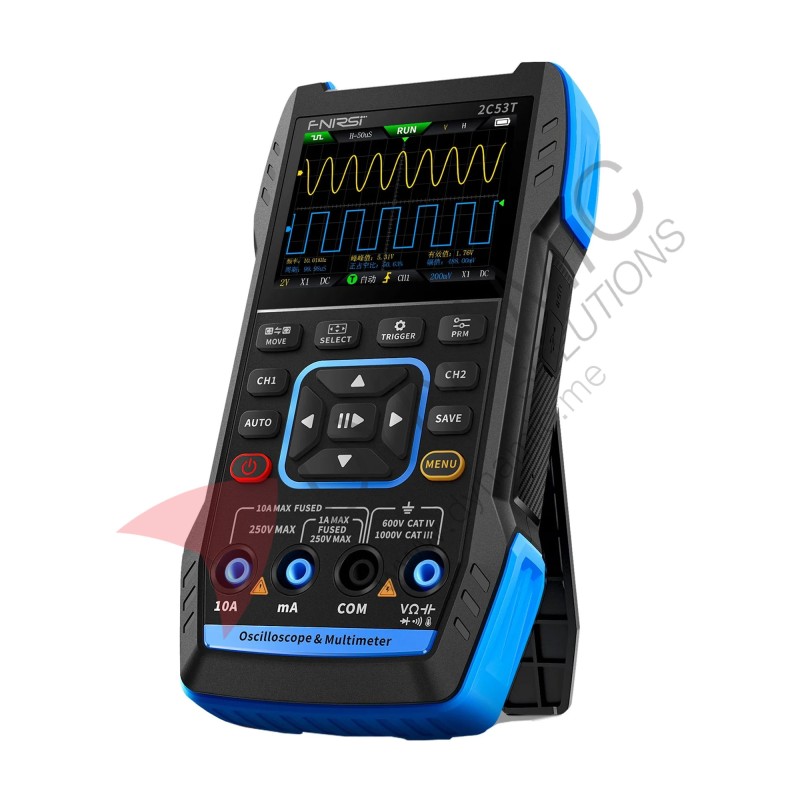

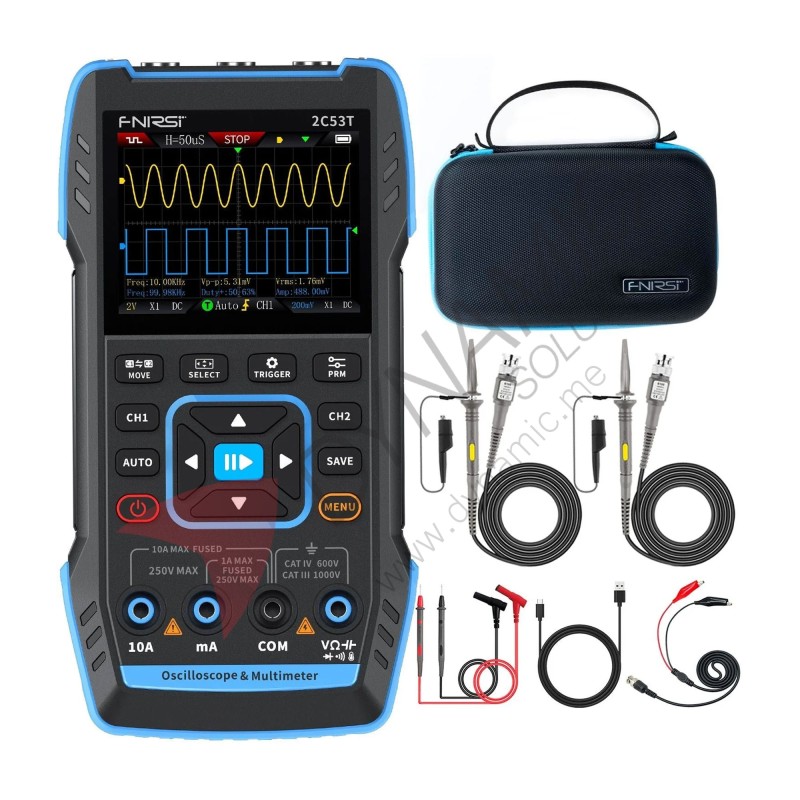

FNIRSI 3in1 Oscilloscope Multimeter Signal Generator 2C53T

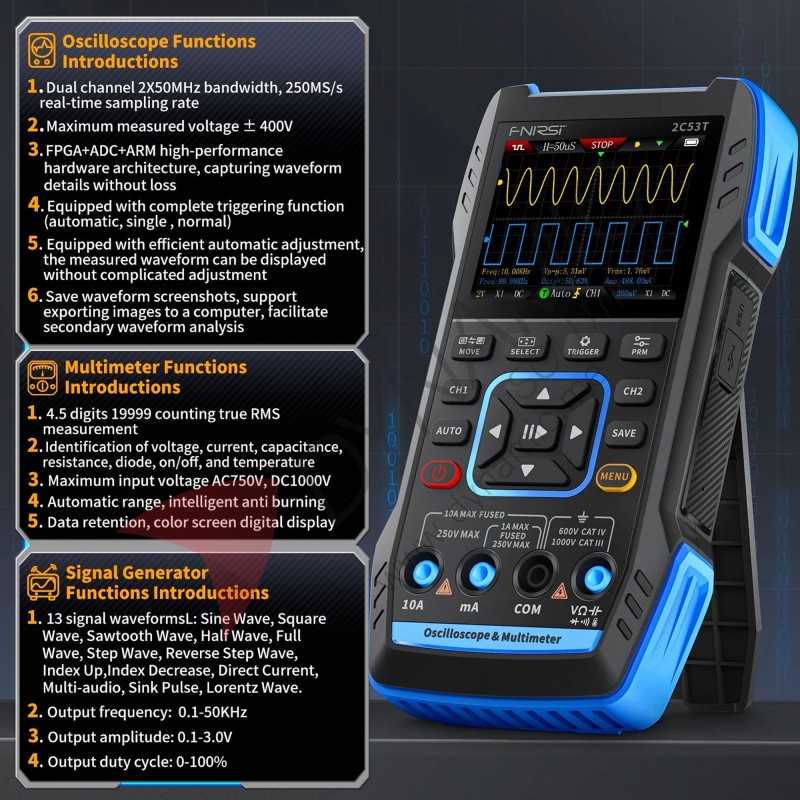

Features:

All-in-One 3-in-1: Combines a 2-channel oscilloscope, a 4.5-digit 20000-count multimeter, and a signal generator in one handheld unit.

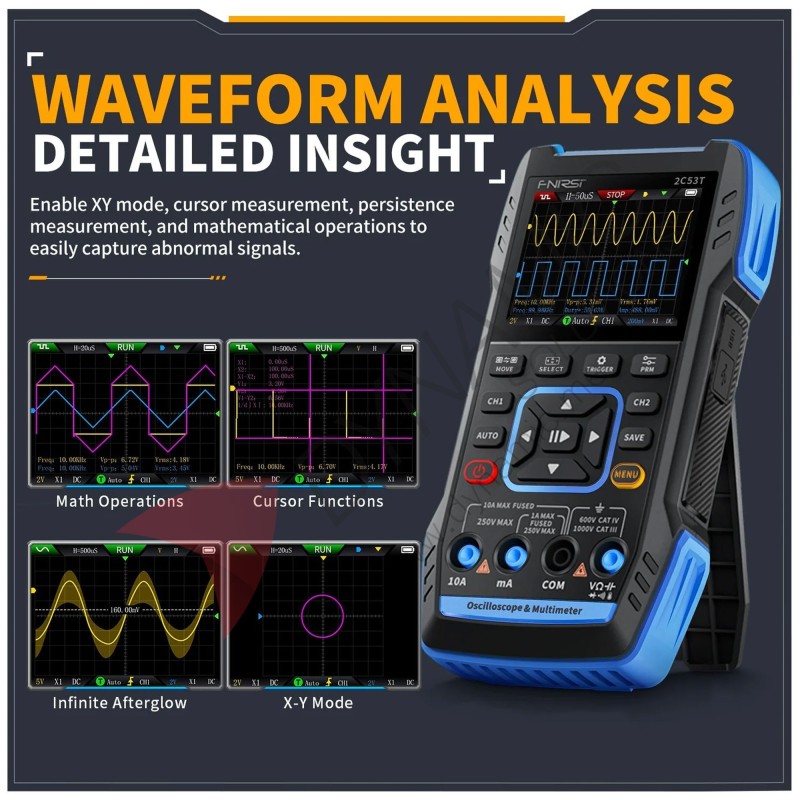

Oscilloscope Power: Delivers 50MHz bandwidth, 250MSa/s sampling, 1Kpts record depth, up to 400V max voltage, plus math ops, cursor measurement, persistence, and XY mode.
Generator + Waveforms: Outputs up to 50kHz with 1Hz steps and supports 13 waveform types for quick signal injection and checks.
Save & Share: One-click waveform/image saving with on-screen comparison, and Type-C PC transfer, backed by a 2.8" LCD and 3000mAh battery (up to ~6h standby).

Basic parameters

• Display: 2.8" HD color screen, 320×240
• Charging: USB Type-C (5V/1A)
• Battery: 3000mAh Li-ion
• Standby time: Up to 6h (lab theoretical max)
• Functions: Oscilloscope + Signal Generator + Multimeter
• Language: Chinese / English
• Size: 167 × 89 × 35 mm
• Weight: 300 g

Oscilloscope parameters

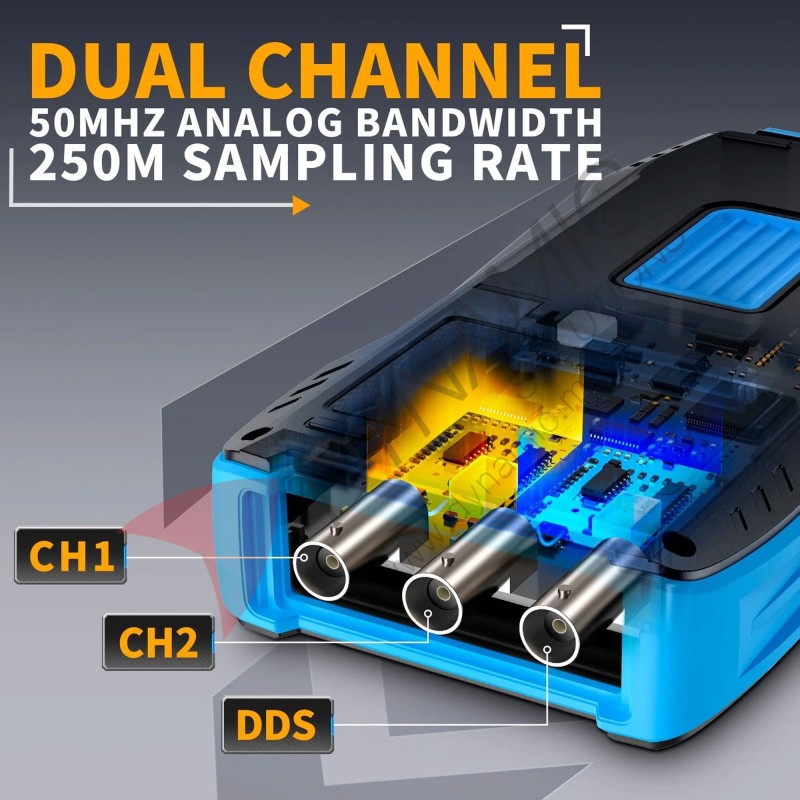

• Channels: Dual channel
• Sample rate: 250 MS/s
• Analog bandwidth: 50 MHz
• Record length (storage depth): 1 Kpts
• Input impedance: 1 MΩ
• Time base range: 10 ns – 20 s
• Vertical sensitivity: 10 mV/div – 10 V/div (×1)
• Max measured voltage: ±400 V
• Trigger: AUTO / Normal / Single, edge trigger (rising/falling)
• Display modes: Y-T / Rolling / X-Y
• Coupling: AC/DC
• Persistence: OFF / 500 ms / 1 s / ∞
• Math: 8 basic operations + FFT
• Screenshot save / image export / cursor measurement / infinite afterglow: Supported

Function signal generator parameters

• Waveforms: 13 types (sine, square, sawtooth, half/full wave, steps, exp rise/fall, DC, etc.)
• Frequency: 0–50 kHz
• Amplitude: 0–3 V
• Duty cycle: 0–100%

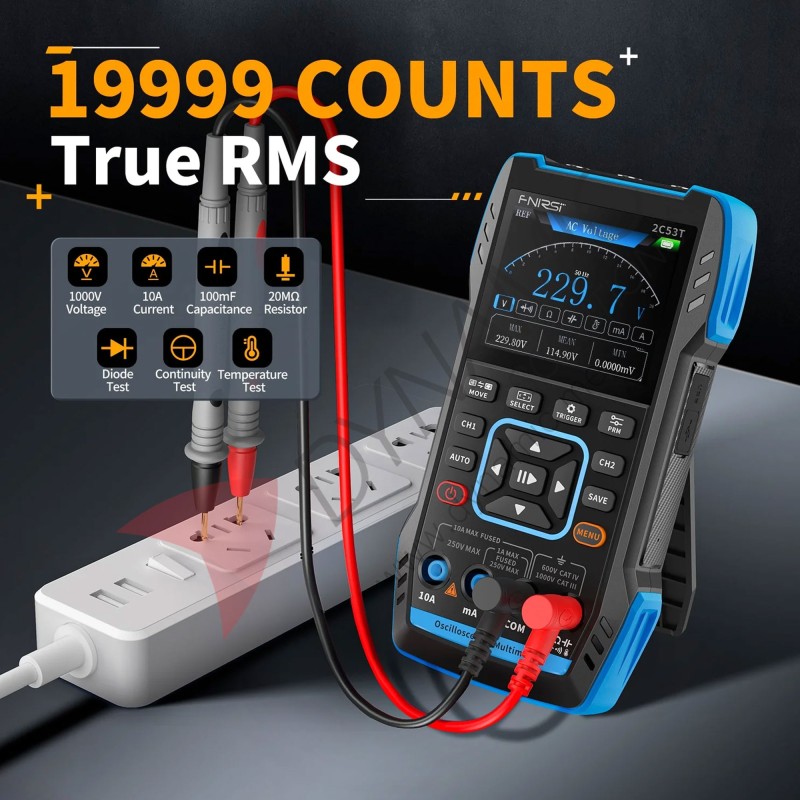

Multimeter parameters

• DC voltage ranges: 1.9999V / 19.999V / 199.99V / 1000V
• AC voltage ranges: 1.9999V / 19.999V / 199.99V / 750.0V
• DC current ranges: 19.999 mA / 199.99 mA / 1.9999 A / 9.999 A
• AC current ranges: 19.999 mA / 199.99 mA / 1.9999 A / 9.999 A
• Resistance ranges: 199.99Ω / 1.9999kΩ / 19.999kΩ / 199.99kΩ / 1.9999MΩ / 19.999MΩ
• Capacitance ranges: 99.99 nF → 99.99 mF (multiple steps listed on page)
• Temperature: −55 to 1300°C (−67 to 2372°F)
• Diode test: Yes
• Continuity test: Yes
