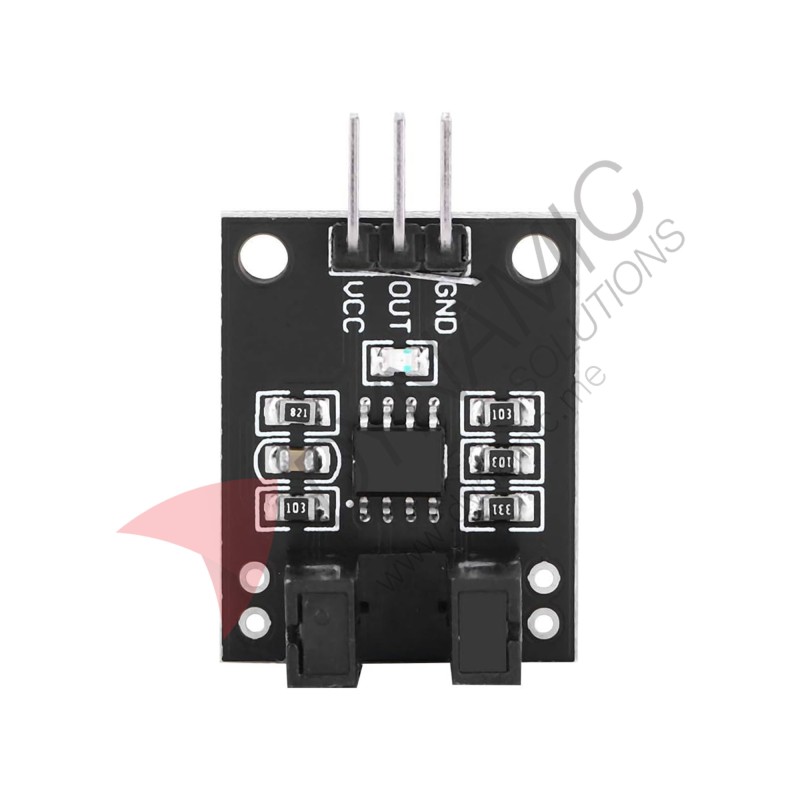

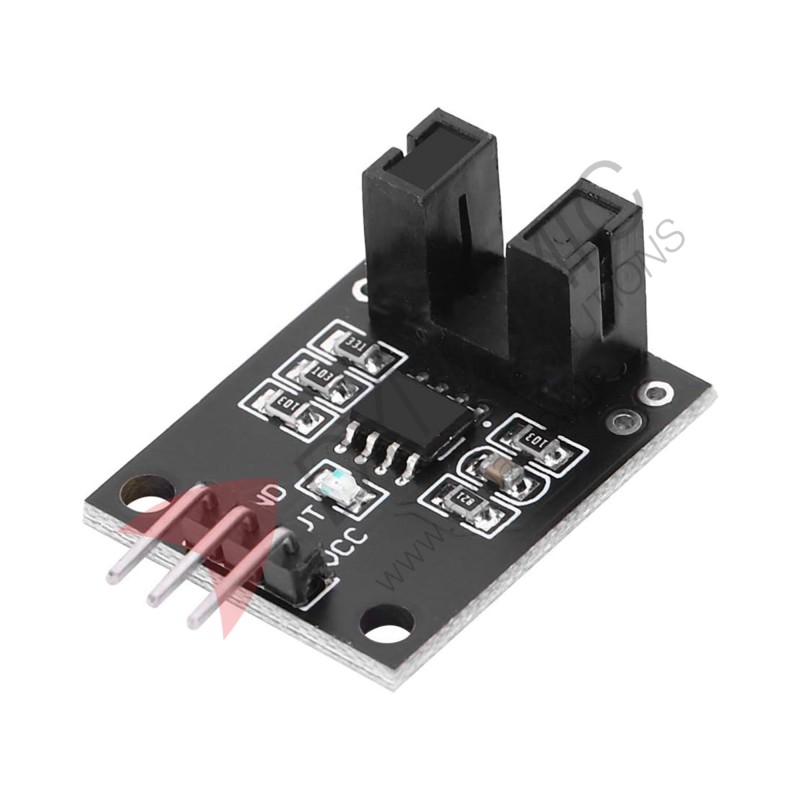

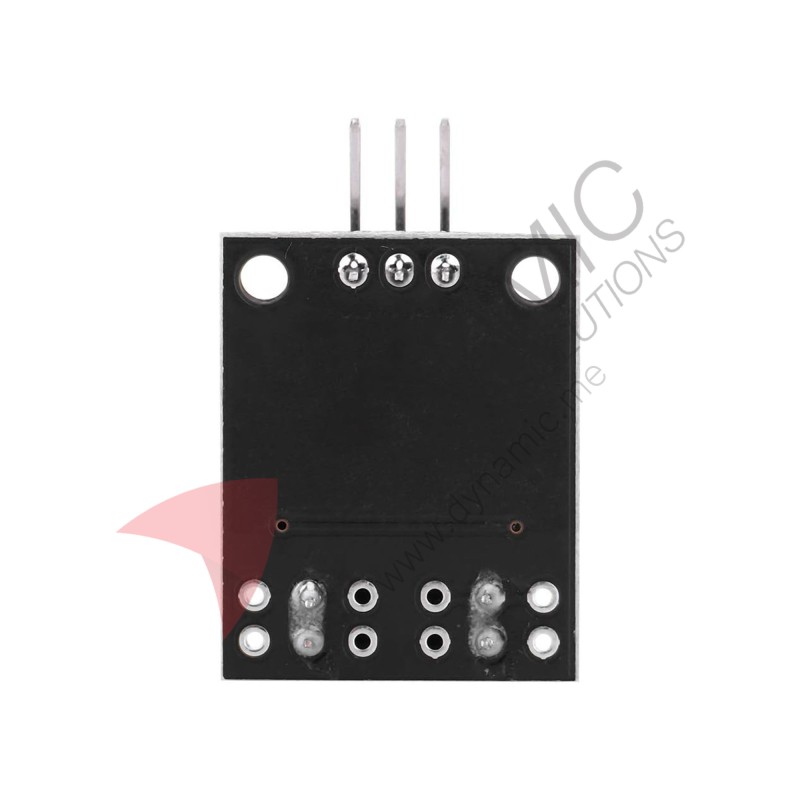

Infrared Beam Sensor/Encoder Module

Infrared Beam Sensor/Encoder Module
Infrared Beam Sensor/Encoder Module
Infrared Beam Sensor/Encoder Module
Infrared Beam Sensor/Encoder Module
Infrared Beam Sensor/Encoder Module
Infrared Beam Sensor/Encoder Module
Infrared Beam Sensor/Encoder Module
  • Availability: In Stock
  • Weight: 0.00kg
  • Package Size: 8.50cm x 6.00cm x 2.00cm
  • SKU: ELE-SEN-152
$1.00
Ex Tax: $1.00
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The Infrared Beam Sensor / Encoder Module uses an IR transmitter/receiver pair and LM393 comparator for precise object counting and detection. LED indicator shows beam status, making it ideal for counting wheels, chutes, feeders, or as an optical limit switch in embedded projects. Compatible with 3.3V and 5V systems.

Specifications:
  • Operating Voltage: 3.3–5V
  • Output: Normally LOW, goes HIGH when IR beam is broken
  • Logic High (Vcc = 5V): > 3.5V
  • Logic Low: < 0.2V
  • PCB Dimensions: 25 x 20mm
  • U-Channel Height: 15mm
  • U-Channel Inner Dimensions (H x W): 12 x 10mm
  • LED Detection Indicator: Yes
  • Usage: Object counting, RPM measurement, limit switch, optical detection
