Double Speed Measuring Encoder Sensor Module

Availability: In Stock
Weight: 0.02kg
Package Size: 12.00cm x 8.00cm x 1.50cm
SKU: ELE-SEN-130

$6.25

Ex Tax: $6.25

Qty

Description

Features:

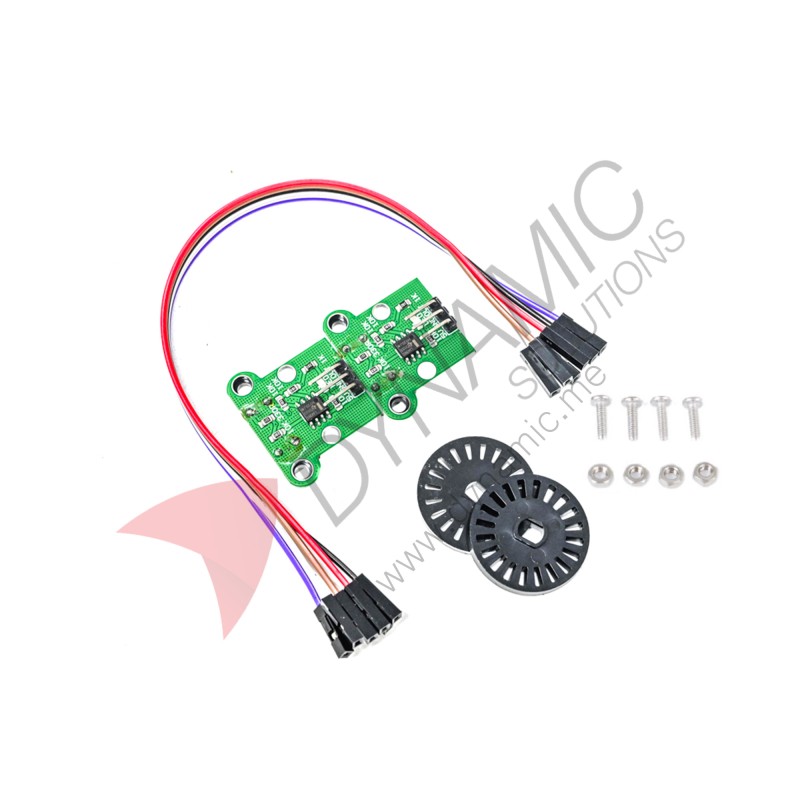

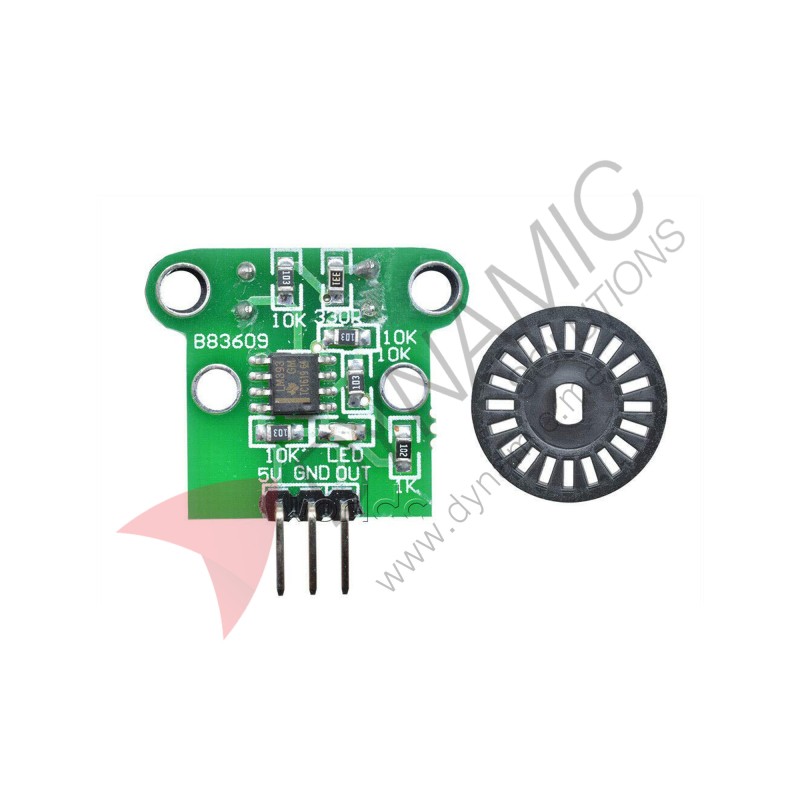

The Double Speed Measuring Encoder Sensor Module is a kit designed to accurately measure motor speed and distance in robotics and wheeled vehicles. It includes 2 HC-020K sensors and 2 code disks with 20 lines each. Ideal for Arduino and other microcontrollers, the module outputs precise TTL-level pulse signals for speed and mileage calculations.

Specifications:

Operating voltage: 4.5V–5.5V DC
Transmitter voltage drop: 1.6V
Transmitter current: <20mA
Output signal: A, B channels; TTL level
Resolution accuracy: 0.01mm
Measuring frequency: 100kHz
Code disk resolution: 20 lines
Code disk diameter: 24mm
Code disk D-hole diameter: 4mm

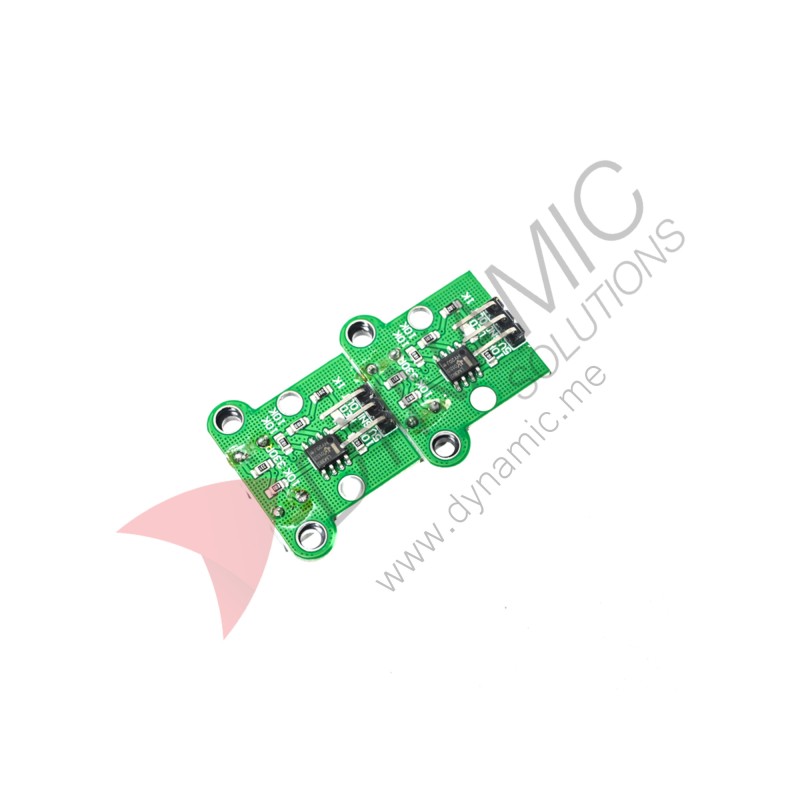

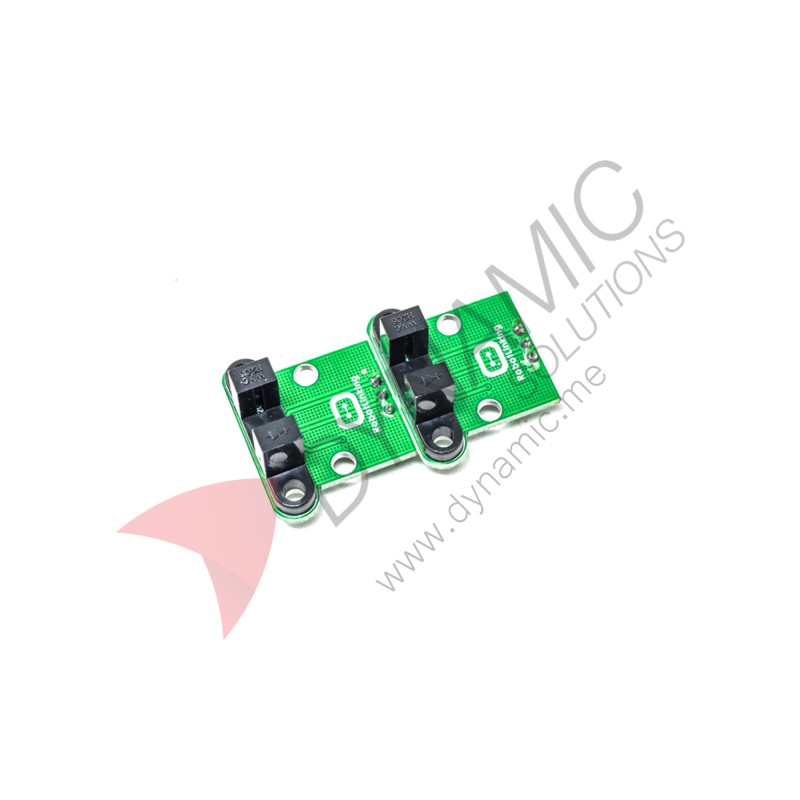

Included sensors: 2 × HC-020K
Included code disks: 2 × 20-line disks
Includes: 6x Dupont cables 20cm Female to Female, 4x M3 screws, 4x M3 nuts
