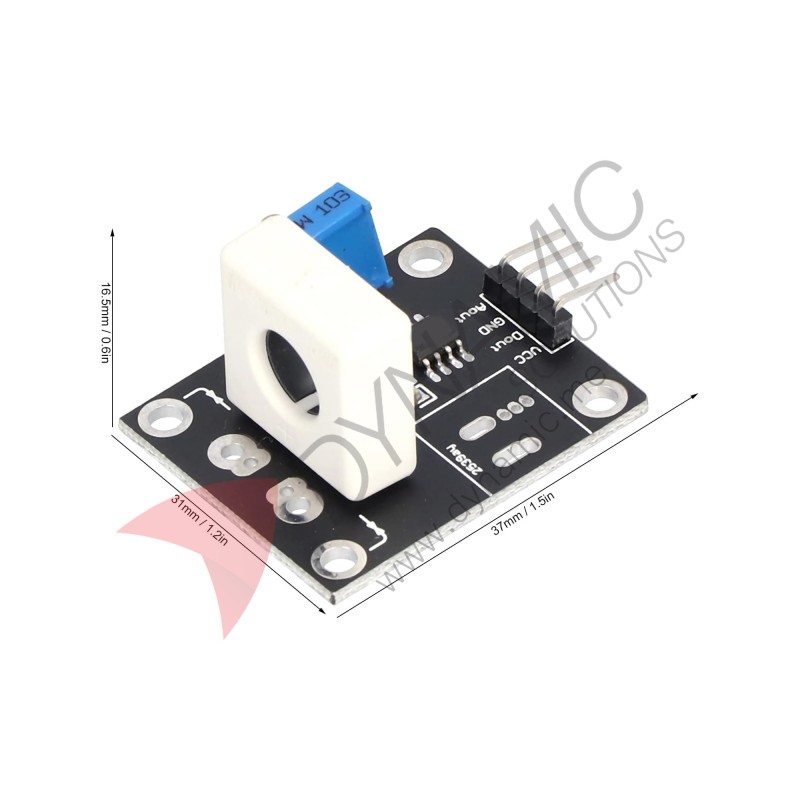

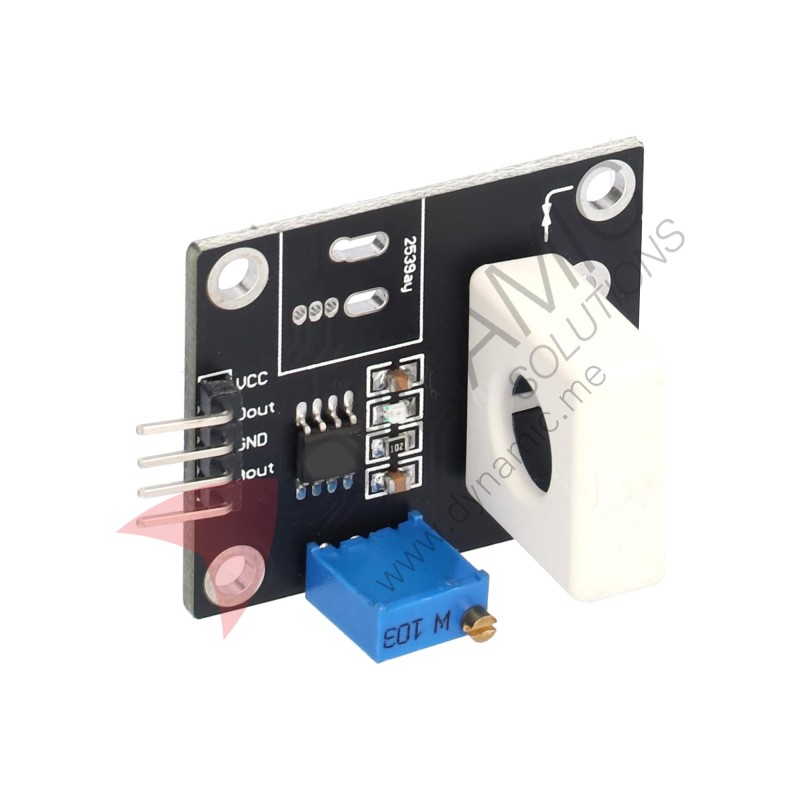

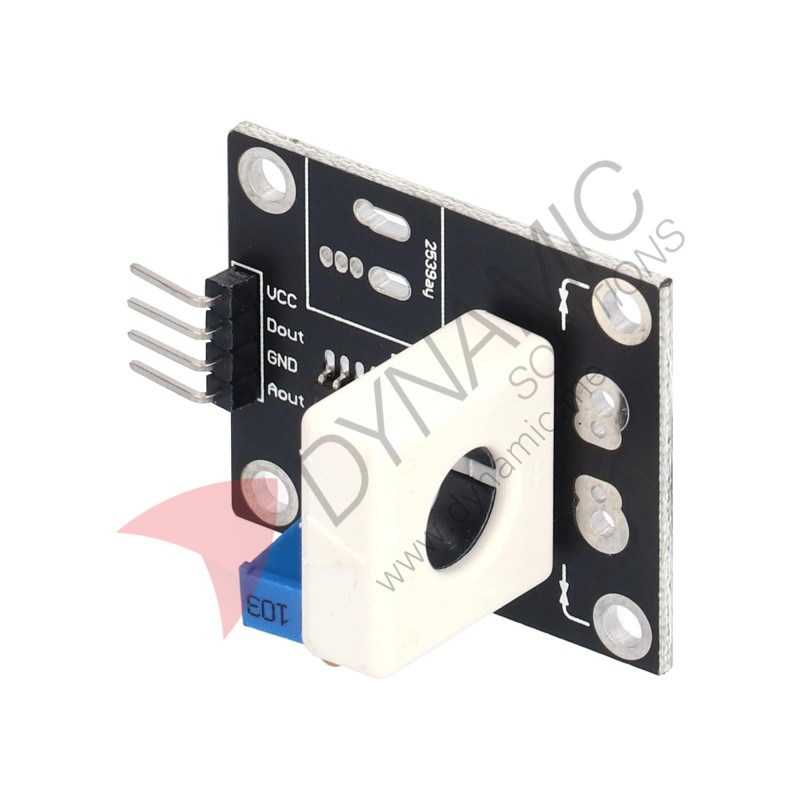

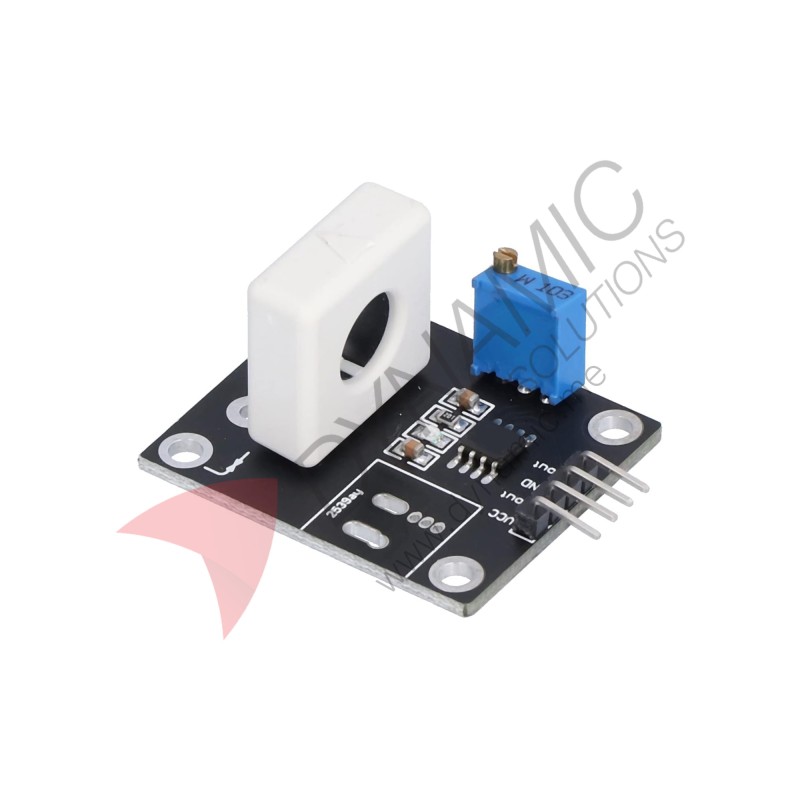

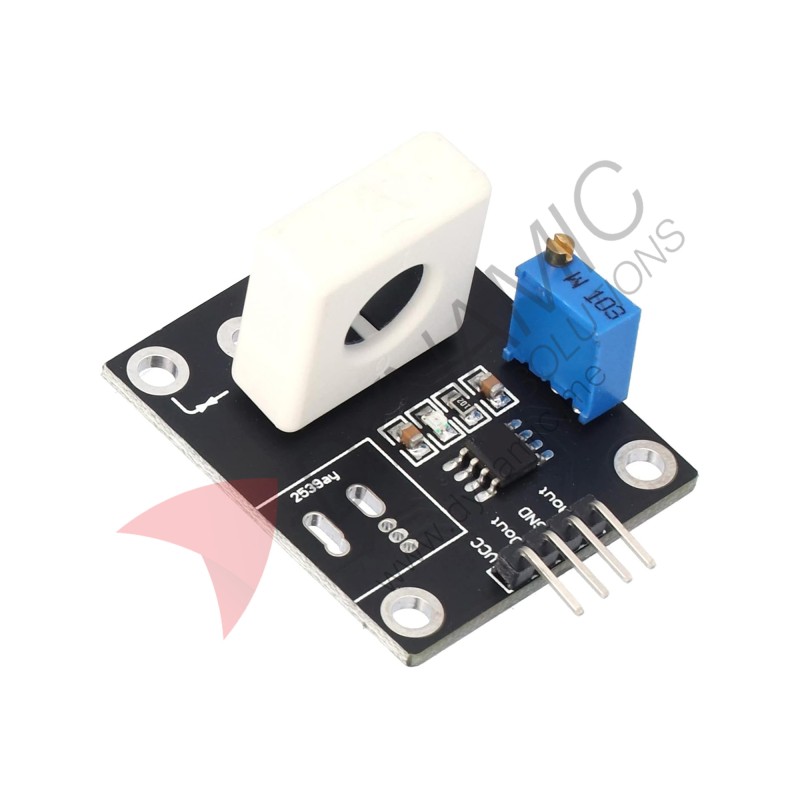

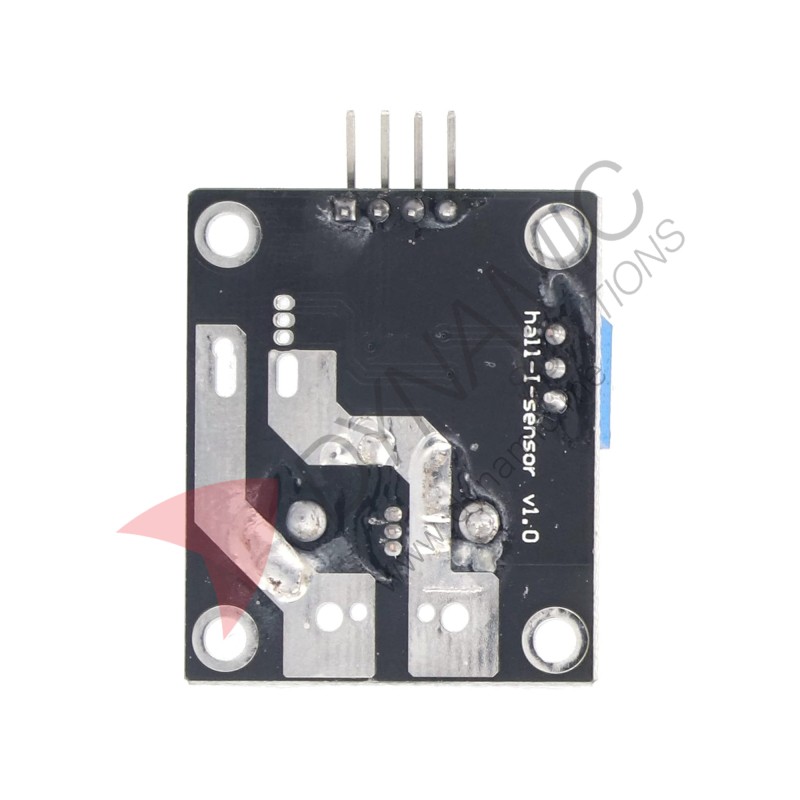

Hall Current Sensor Module WCS1700 – 70A

Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
Hall Current Sensor Module WCS1700 – 70A
  • Availability: In Stock
  • Weight: 0.01kg
  • Package Size: 12.00cm x 8.00cm x 2.00cm
  • SKU: ELE-SEN-139
$12.00
Ex Tax: $12.00
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The WCS1700 is a compact, non-intrusive Hall effect current sensor capable of measuring up to ±70 A DC or 50 A AC through a 9 mm conductor hole. Featuring high 36 mV/A sensitivity and wide supply voltage (3–12 V), it offers ratiometric output, 4 kV isolation, and minimal power consumption—ideal for accurate current monitoring in industrial and robotics projects.

Specifications:
  • Conductor through-hole diameter: 9 mm
  • Current sensing range: ±70 A DC / 50 A AC RMS (at 5 V supply)
  • Sensitivity: 36 mV/A (typical)
  • Supply voltage range: 3–12 V
  • Supply current: ~3.5 mA typical
  • Bandwidth: 23 kHz
  • Isolation voltage: 4000 V
  • Ratiometric linear output relative to supply voltage
  • Operating temperature: –20 °C to +125 °C

We offer fast worldwide shipping with reliable service. Orders are processed within 12h and delivered in:

  • Lebanon:
    1–3 working days via Aramex ($4 fee, extra for machines).

  • International:
    3–10 working days (fees depend on weight/volume).

You'll receive an email with tracking details once your order ships. Import taxes may apply and are the customer's responsibility.
