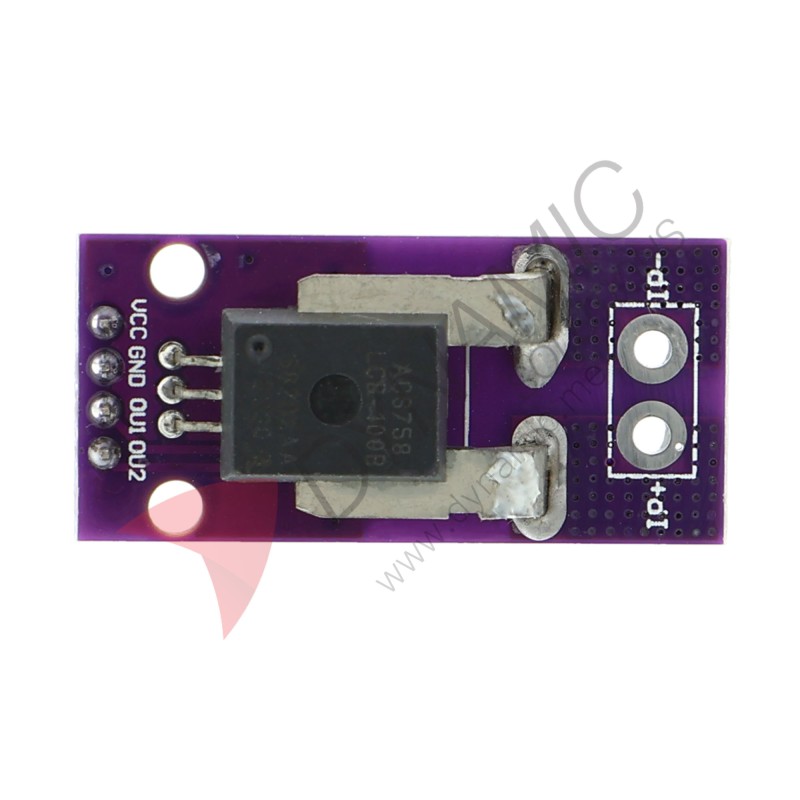

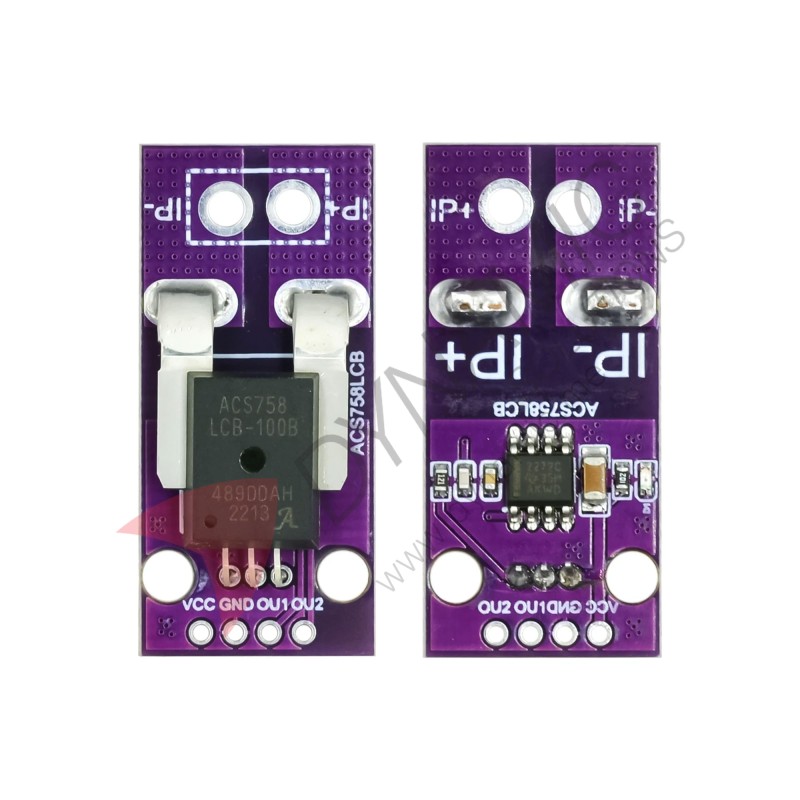

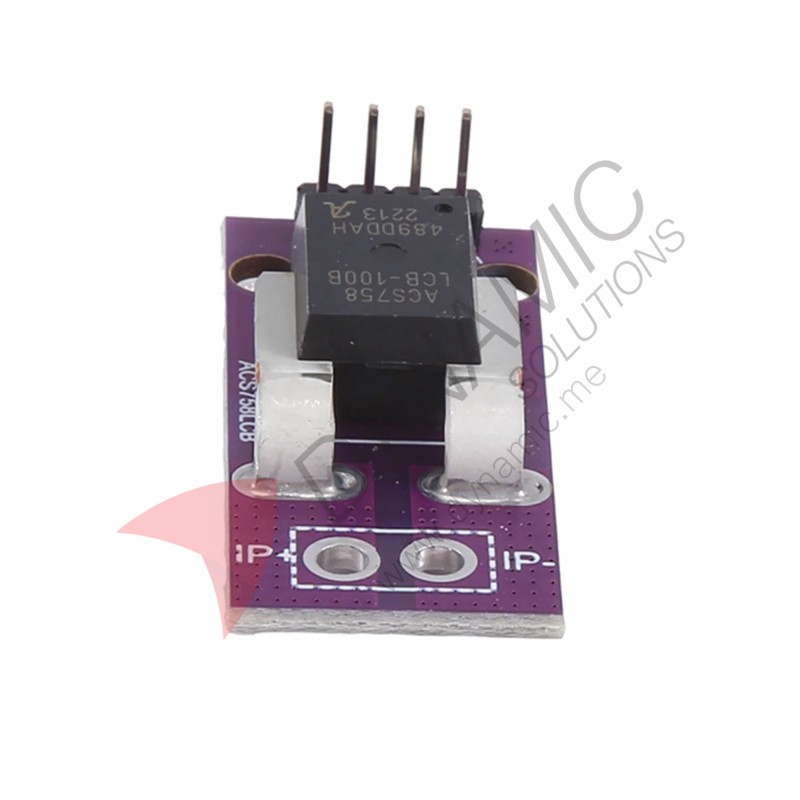

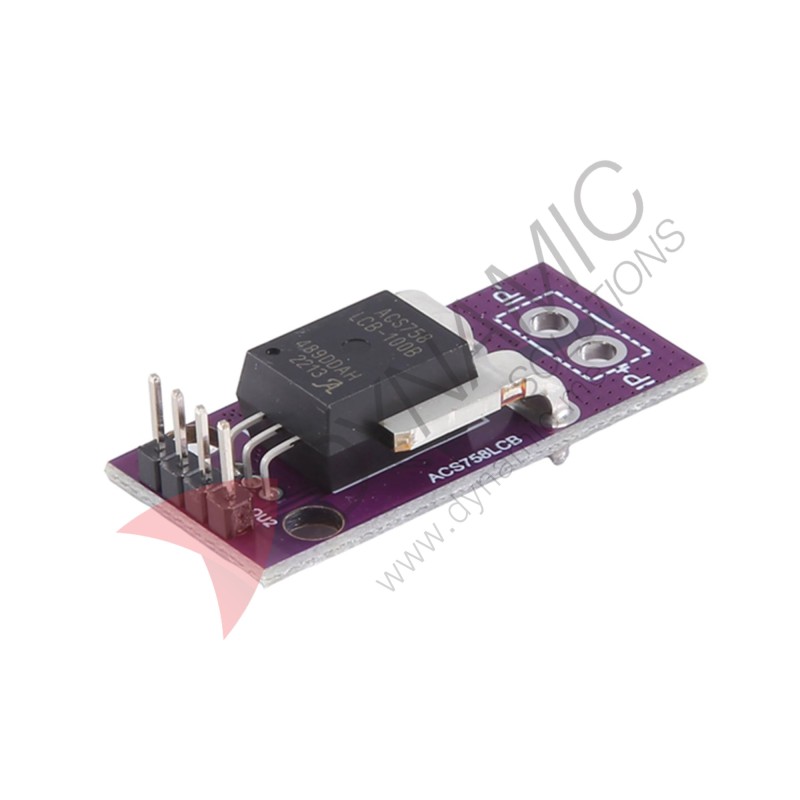

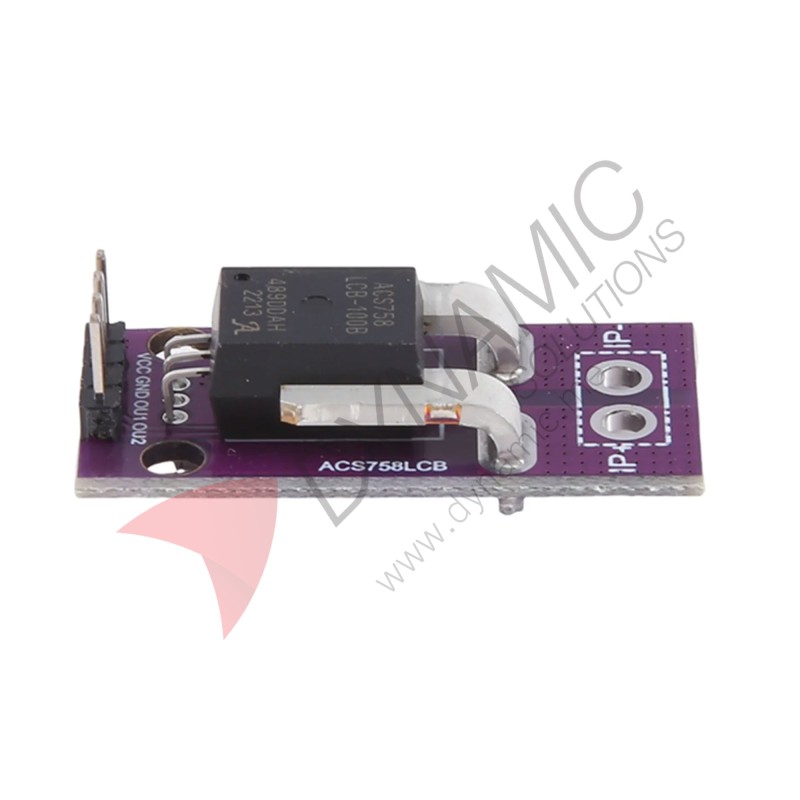

ACS758 Linear Current Sensor Module

ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
ACS758 Linear Current Sensor Module
  • Availability: In Stock
  • Weight: 0.01kg
  • Dimensions: 8.00cm x 5.00cm x 1.00cm
  • SKU: ELE-SEN-114
$7.00
Ex Tax: $7.00

Available Options

Add to Cart
Buy Now Question?
Add to Wish List

Features:
High-side, isolated current sensing using Hall-effect technology. Ratiometric analog output, factory calibrated for accuracy. Minimal power loss (100µΩ internal conductor). Works with AC or DC currents, and operates up to 120kHz bandwidth.

Options:
ACS758LCB‑100B‑PFF‑T — ±100A (20mV/A)
ACS758ECB‑200B‑PFF‑T — ±200A (10mV/A)

Specifications:
  • Supply Voltage: 3–5.5V
  • Output Type: Ratiometric analog — VOUT = VCC/2 ± (I × Sensitivity)
  • Isolation: Galvanic, 4800Vrms withstand, 1358 V working voltage
  • Bandwidth: ~120kHz (3µs rise time)
  • Conductor Resistance: 100µΩ (low loss)
  • Operating Temp: –40°C to +150°C (range depends on variant)
  • Linearity/Accuracy: ~±1.25% / ±2.4%
