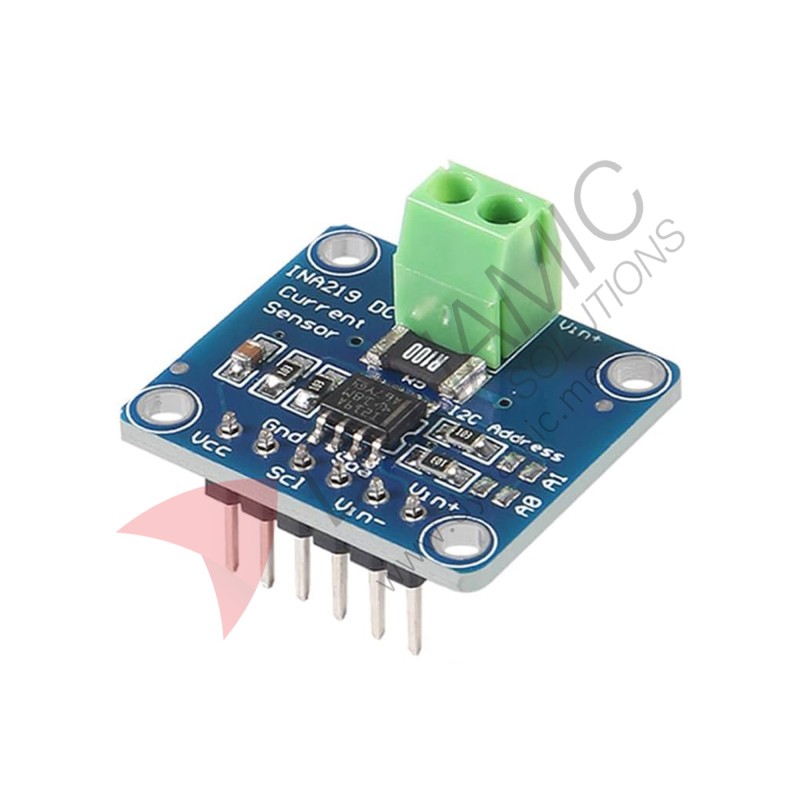

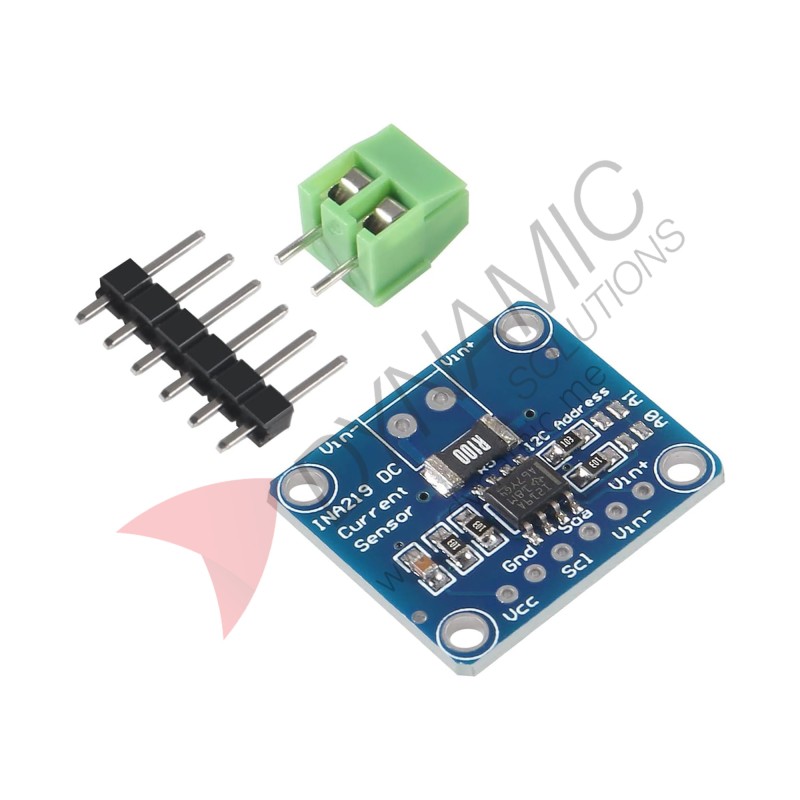

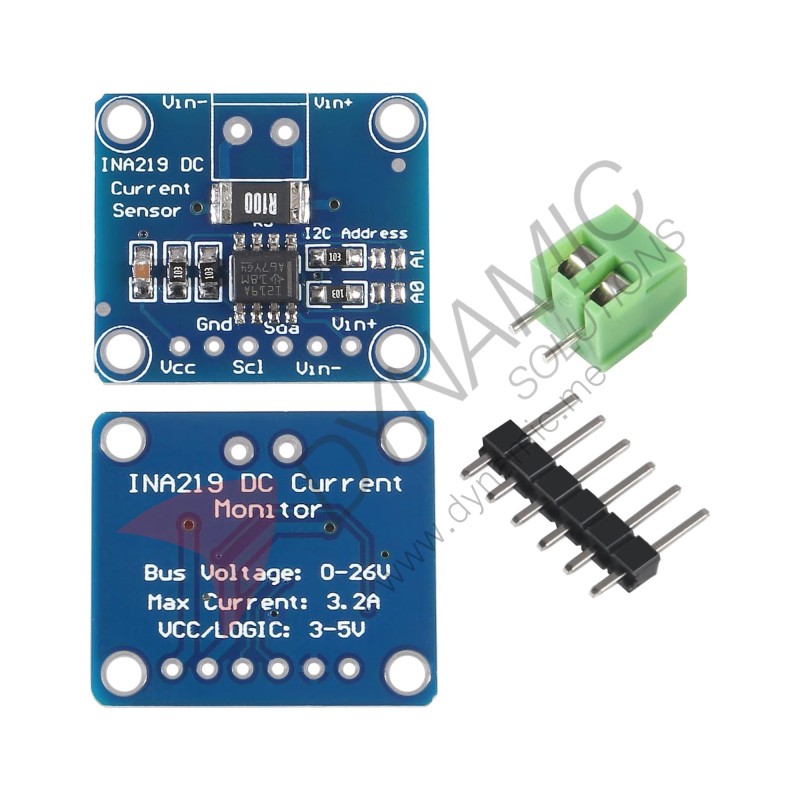

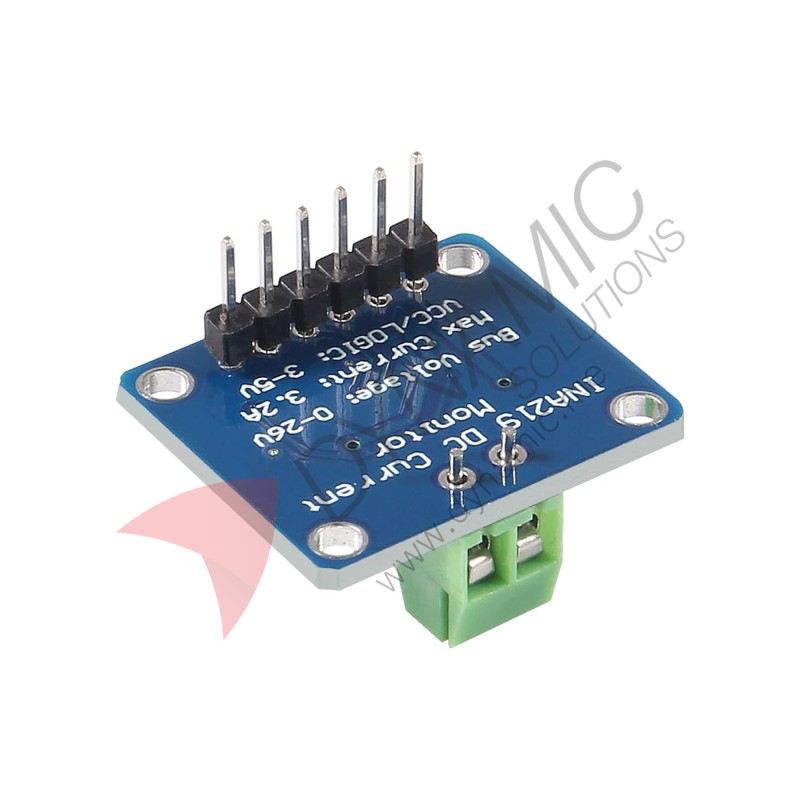

INA219 DC Current Measurement Sensor Module

Out Of Stock

INA219 DC Current Measurement Sensor Module

Availability: Out Of Stock
Weight: 0.00kg
Package Size: 9.70cm x 8.50cm x 0.50cm
SKU: ELE-SEN-166

$1.25

Ex Tax: $1.25

Qty

Description

Features:

The INA219 DC Current Measurement Sensor Module is a high side current and voltage monitoring board designed for accurate DC load measurement up to 3.2A and 26V. Featuring an I2C interface and 3.3V and 5V logic compatibility, it is ideal for battery monitoring, power management systems, solar projects and embedded applications using Arduino, ESP and other microcontrollers.

Specifications:

Measurement Type: High Side Current and Voltage
Maximum Current: 3.2A
Current Resolution: 0.8mA
Maximum Load Voltage: 26V DC
Interface: I2C
Default I2C Address: 0x40
Selectable I2C Addresses: 0x40, 0x41, 0x44, 0x45
Logic Voltage: 3.3V to 5V
Shunt Resistor: 0.1 Ohm, 1 percent, 2W
Header: 6 Pin
Power Terminal: 2 Pin Screw Terminal
Application: Battery monitoring, power measurement, embedded systems
