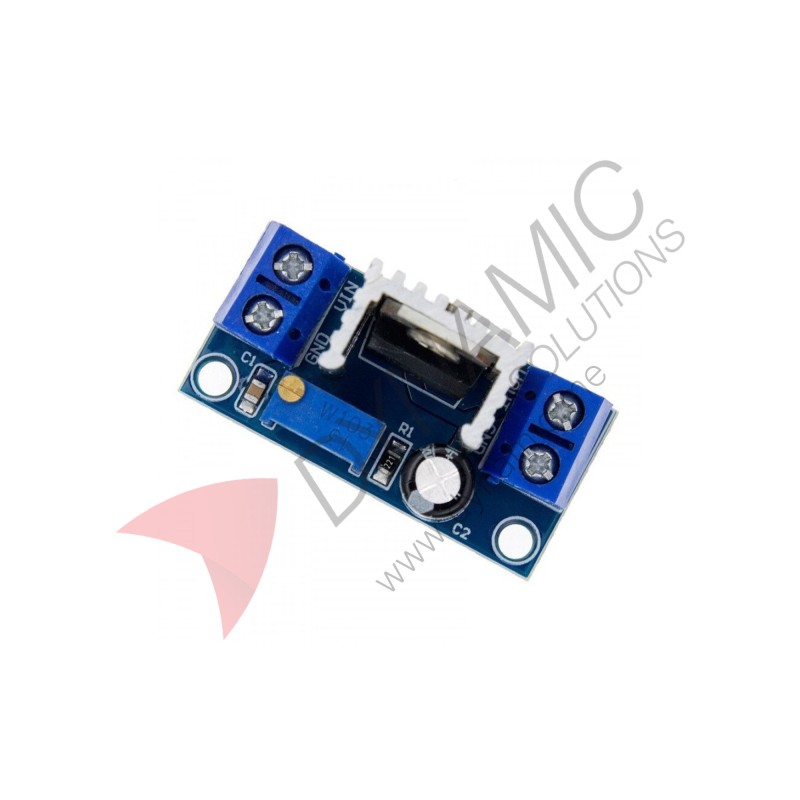

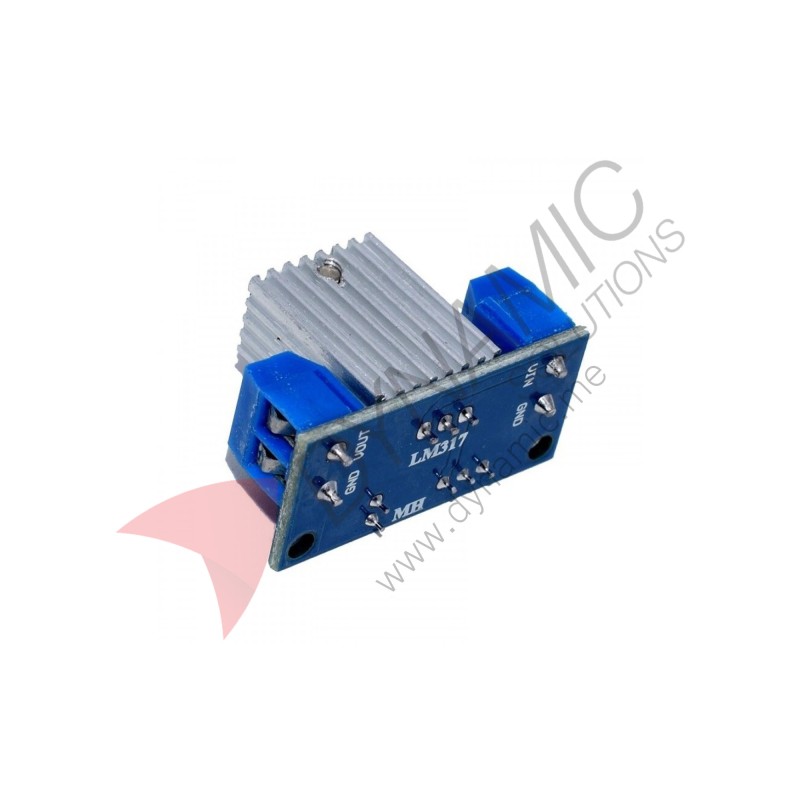

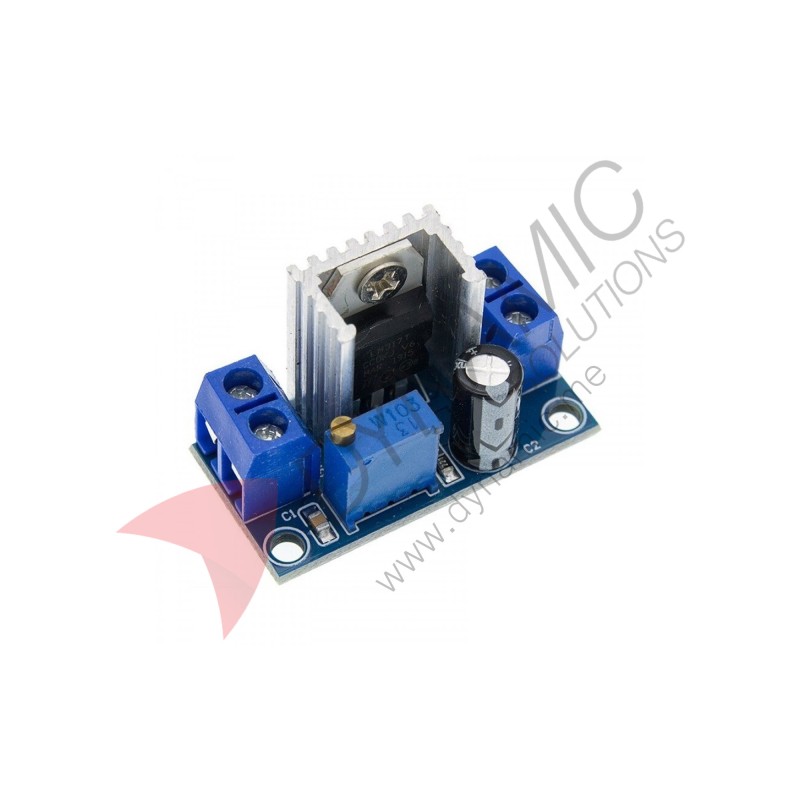

LM317 DC-DC Step Down Converter Module

LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
LM317 DC-DC Step Down Converter Module
  • Availability: In Stock
  • Weight: 0.01kg
  • Package Size: 9.50cm x 5.00cm x 1.70cm
  • SKU: ELE-SEN-148
$1.25
Ex Tax: $1.25
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The LM317 DC-DC Step Down Converter Module provides adjustable voltage output from 1.25V to 37V with up to 1.5A current. Using a compact linear regulator IC with heatsink, it is ideal for powering portable devices, battery-powered electronics, and low-noise circuits. The on-board potentiometer allows easy voltage tuning, and the module’s compact design makes it suitable for embedding into DIY electronics or prototyping setups.

Specifications:
  • Input Voltage: 4.5–40V DC
  • Output Voltage: 1.25–37V DC (adjustable)
  • Output Current: 0.01–1.5A (typ 1.5A, max 2.2A peak)
  • Input-Output Differential: 3V min, 40V max
  • Characteristic Frequency: 100 MHz
  • Operating Temperature: 0℃ ~ 125℃

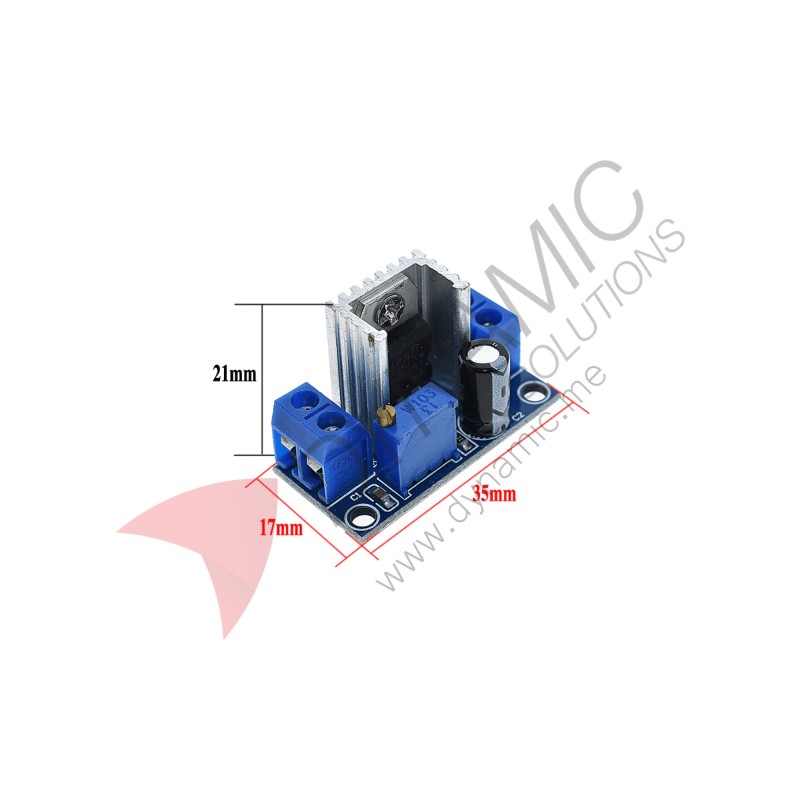

  • Module Size: 35 × 17 × 23 mm
  • Mounting Hole Distance: 30 mm
  • Input/Output Method: Screw terminals, VIN/GND and VOUT/GND
  • Usage: Battery-powered devices, portable electronics, low-noise power circuits
