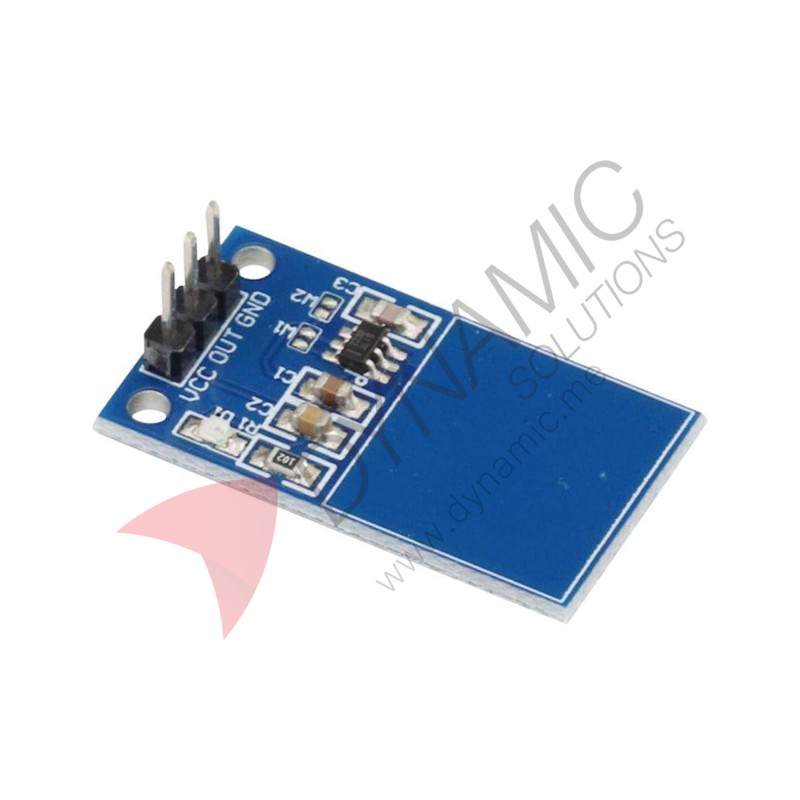

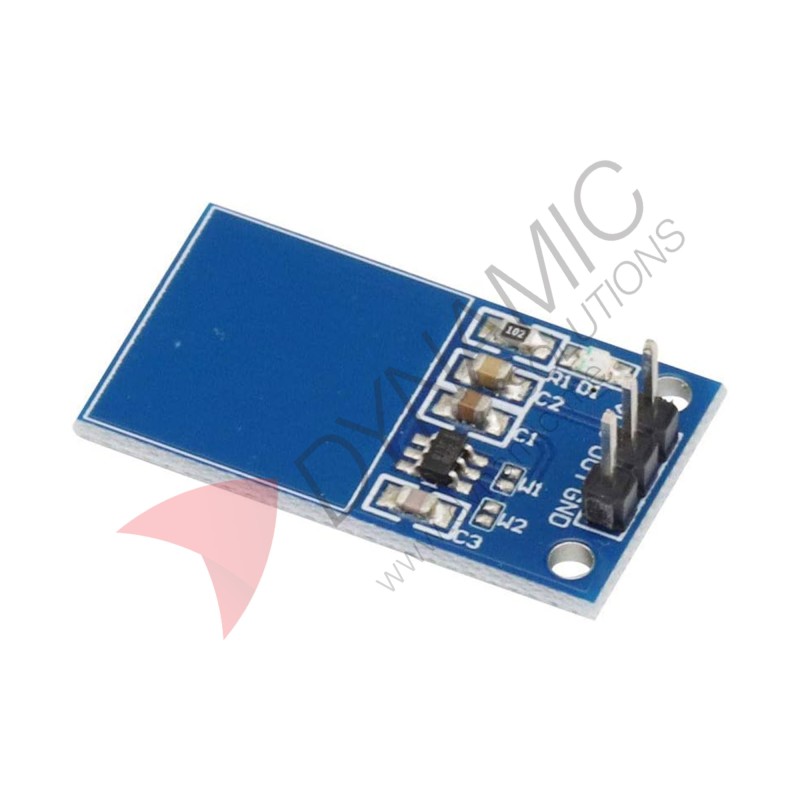

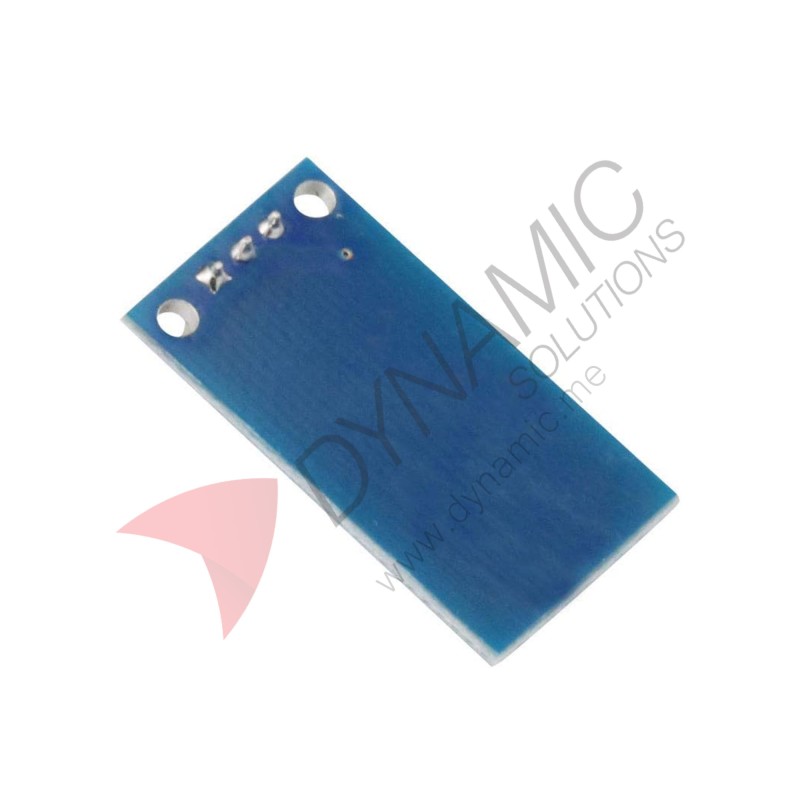

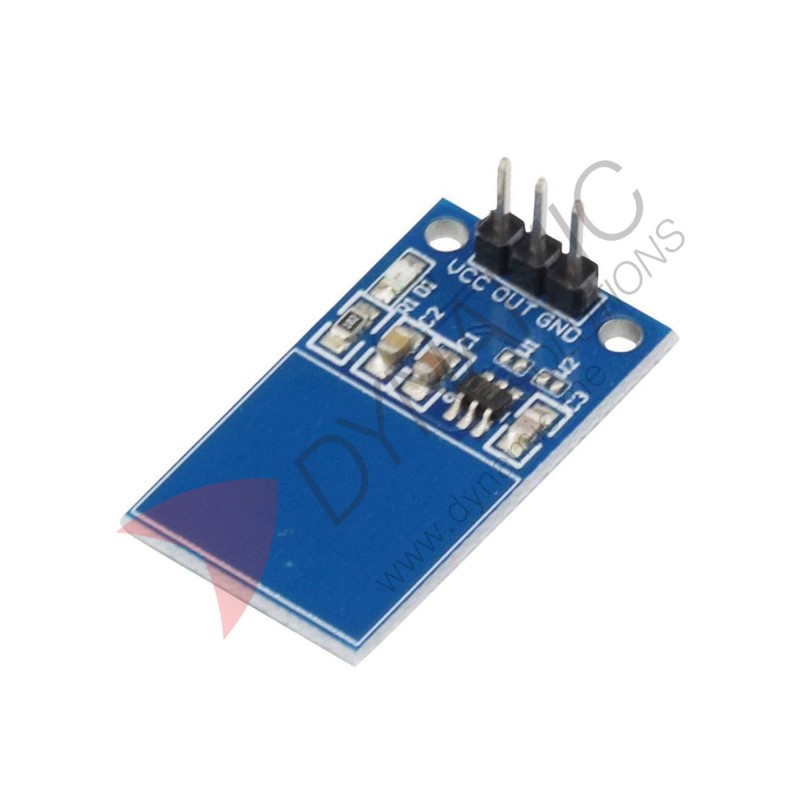

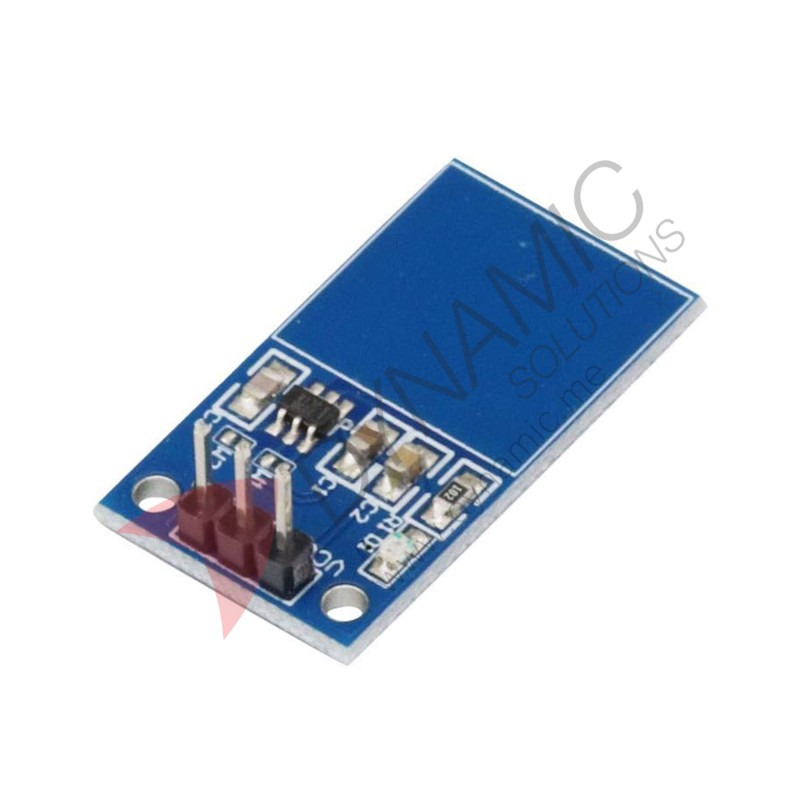

Capacitive Touch Sensor Module TTP223

Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
Capacitive Touch Sensor Module TTP223
  • Availability: In Stock
  • Weight: 0.00kg
  • Package Size: 8.00cm x 6.00cm x 1.20cm
  • SKU: ELE-DIS-048
$0.75
Ex Tax: $0.75
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The TTP223 capacitive touch sensor module replaces traditional push buttons with a touch-sensitive pad. Low-power, adjustable sensitivity, and selectable output modes make it ideal for consumer electronics, waterproof devices, and hidden button applications on non-metallic surfaces. Compatible with 2–5.5V operation.

Specifications:
  • Operating Voltage: 2.0–5.5V
  • Operating Current: Low Power Mode 1.5–4µA, Fast Mode 3.5–13µA (VDD=3V, no load)
  • Response Time: 60ms (Fast Mode), 220ms (Low Power Mode)
  • Sensitivity: Adjustable via external capacitance (0–50pF)
  • Sampling Length: Selectable via SLRFTB pin
  • Output Modes: Direct, Toggle, Open Drain, CMOS (selectable)
  • Output Logic: Active High / Active Low selectable (AHLB pin)
  • Maximum On Time: 100s (MOTB pin option)
  • External Power-On Reset: Yes (RST pin)
  • Auto Calibration: 4-second recalibration when idle
  • Usage: Consumer products, waterproof devices, push-button replacement
