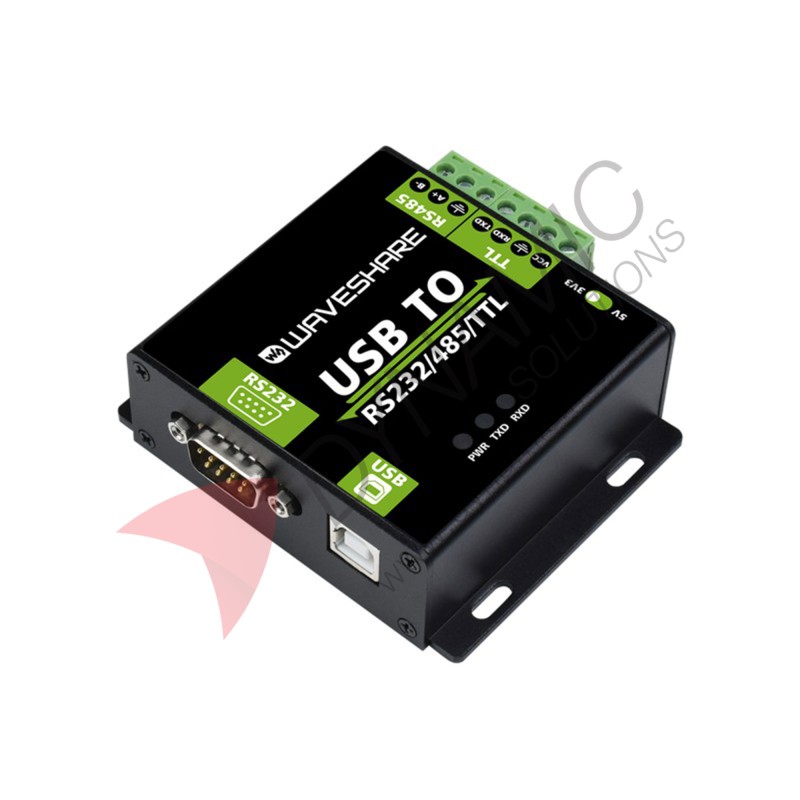

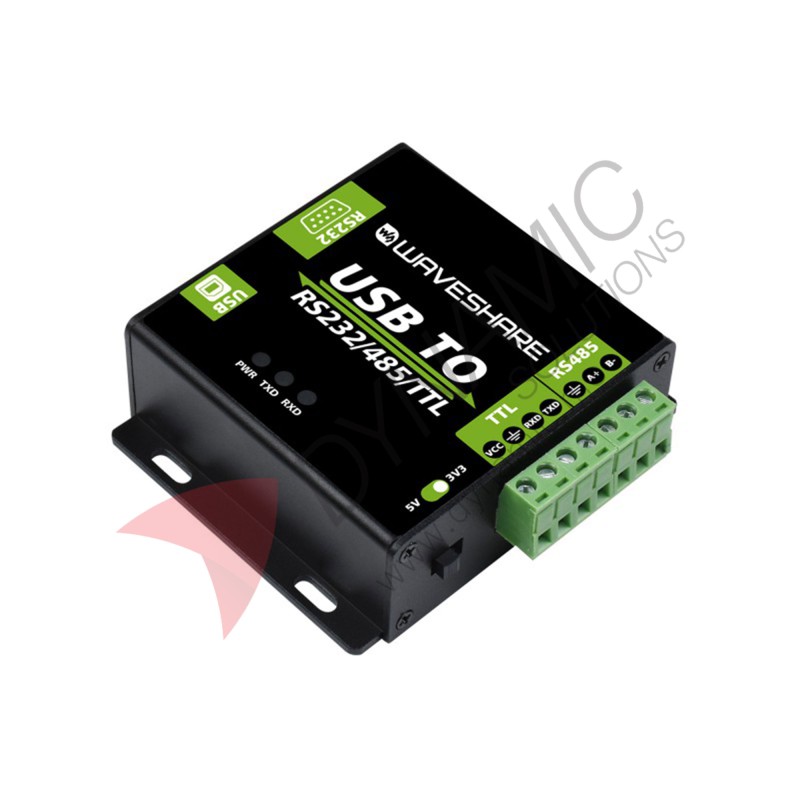

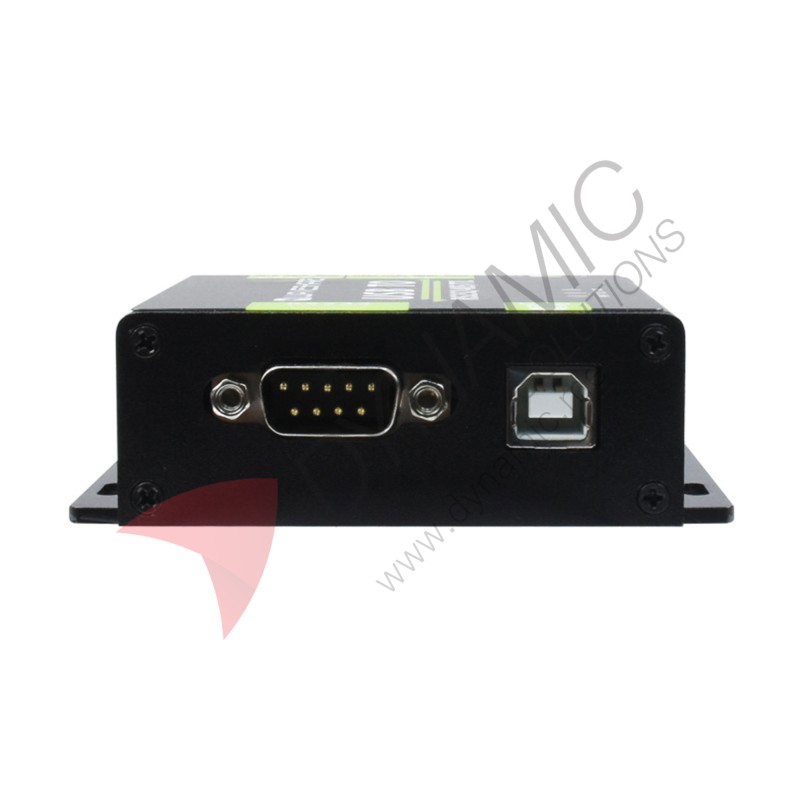

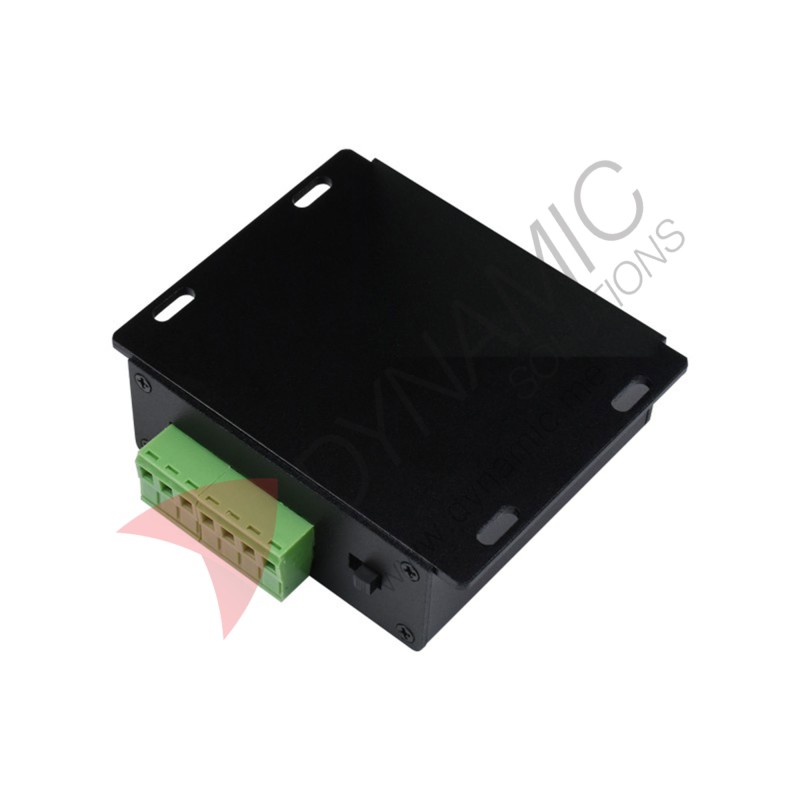

Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter

Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter
  • Availability: In Stock
  • Brand: Waveshare
  • Weight: 0.24kg
  • Package Size: 10.90cm x 15.60cm x 3.00cm
  • SKU: ELE-COM-047
Waveshare Waveshare
$56.00
Ex Tax: $56.00
Add to Cart
Buy Now Question?
Add to Wish List

Features:
The Waveshare FT232RNL Industrial Digital Isolated USB Converter is a robust and versatile solution designed for reliable high-speed communication across various industrial protocols. Equipped with the imported FT232RNL chip, it supports seamless USB conversion to RS232, RS485, RS422, and TTL interfaces. Built-in self-recovery fuse and protective diodes ensure safety against over-current and voltage fluctuations. The onboard level conversion circuit allows easy switching between 3.3V and 5V TTL logic. This compact device ensures stability and electromagnetic resilience in demanding industrial environments.

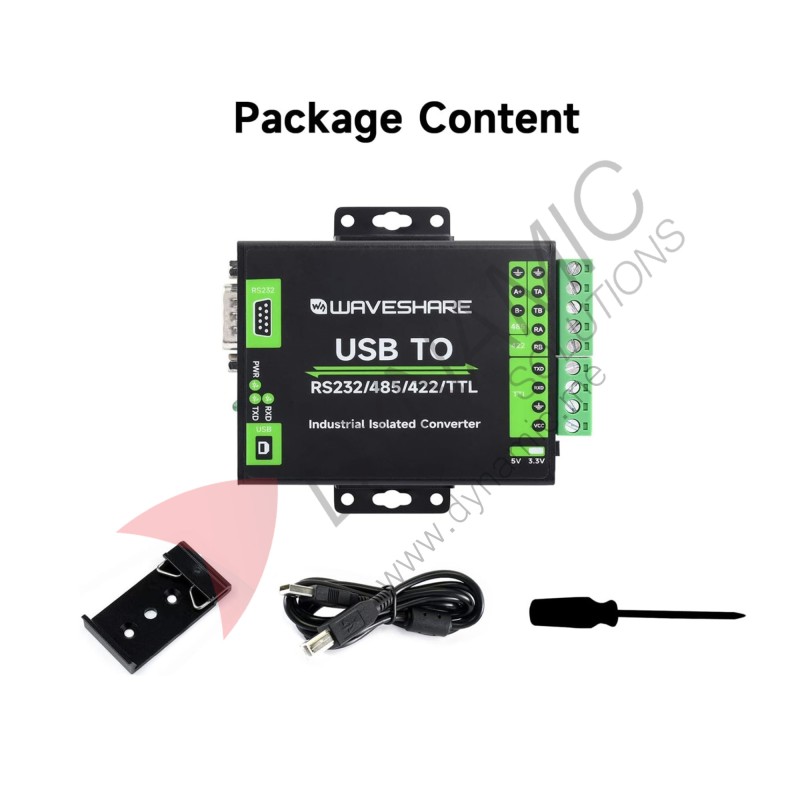

Package Includes:
  • 1 × USB to RS232/485/422/TTL Converter
  • 1 × Guide Rail Clip
  • 1 × USB Cable (Type A Male to Type B Male, approx. 1.2m)
  • 1 × Screwdriver

Specifications:
  • Product type: Industrial digital isolated converter
  • USB Interface: Working level: 5V, Interface type: USB-B, Interface protection: 200mA self-recovery fuse, isolated output
  • RS232 Interface: Interface type: DB9 male, Protection: TVS tube, surge and static protection, Transmission mode: point-to-point, Communication rate: 300bps–3Mbps
  • RS485/422 Interface: Interface type: terminal block, Direction control: automatic hardware-based, Protection: 600W lightning protection, surge and 15KV static protection (includes two 120Ω balance resistor jumper caps)
  • Transmission mode: Point-to-many (RS485 supports up to 32 nodes, RS422 up to 256 nodes; repeaters recommended for over 16 nodes)
  • Communication rate: 300bps–3Mbps
  • TTL (UART) Interface: Working level: 3.3V / 5V, Interface type: terminal block, Pins: TXD, RXD, GND, 5V/3.3V, Protection: clamping diode against overvoltage and negative pressure, Transmission mode: point-to-point, Communication rate: 300bps–3Mbps
  • Operating Environment: Temperature range: -15 to 70°C, Humidity range: 5%–95% RH

Indicator lights:
  • PWR: Power indicator, red light when USB is connected
  • TXD: Transmit indicator, lights when data is sent from USB
  • RXD: Receive indicator, lights when data is returned from device
