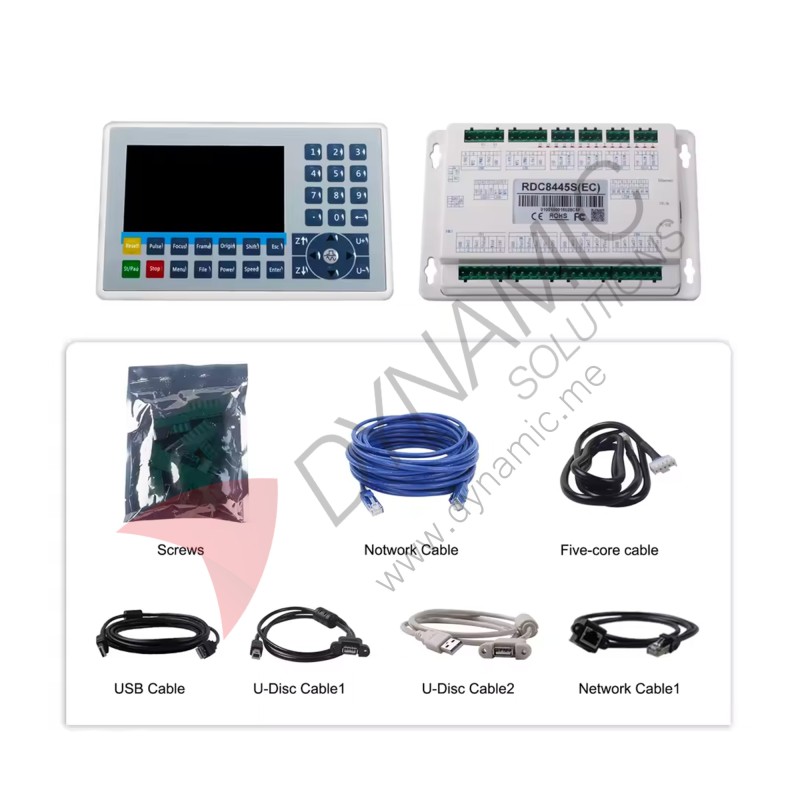

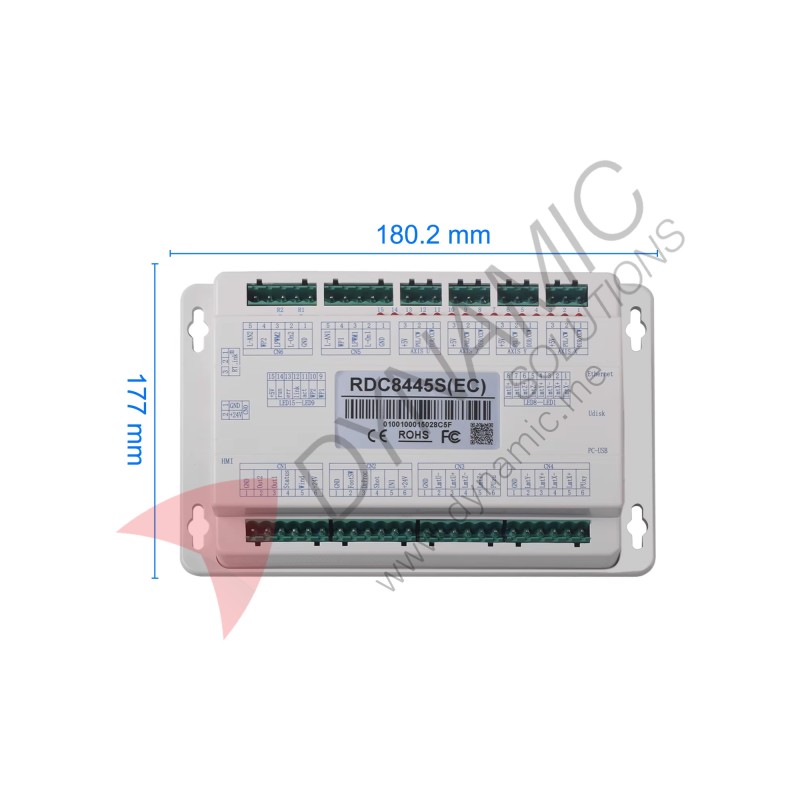

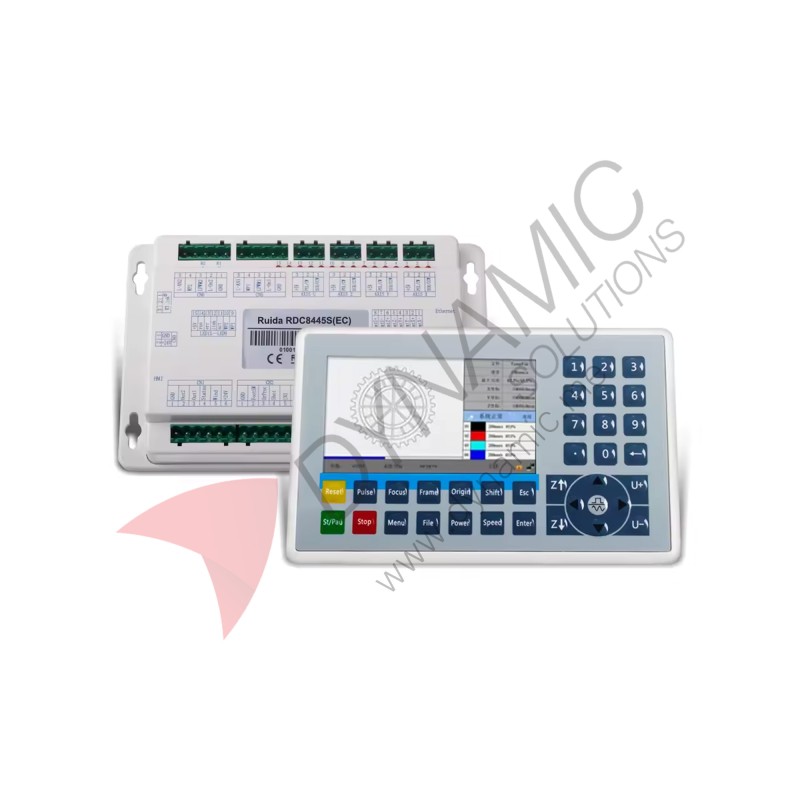

RUIDA Laser Control System RDC8445S(EC)

RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
RUIDA Laser Control System RDC8445S(EC)
  • Availability: In Stock
  • Brand: Ruida
  • Weight: 1.09kg
  • Package Size: 37.00cm x 25.00cm x 14.00cm
  • SKU: CNC-CO2-ACC-038
Ruida Ruida
$485.00
Ex Tax: $485.00
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The RUIDA Laser Control System RDC8445S EC is a high performance laser engraving and cutting controller designed for CO2 laser machines. Equipped with a 5 inch color display and intuitive human machine interface, it supports 4 axis motor control with up to 400kHz output frequency for precise and stable motion control. With 128M onboard memory, USB and network communication, optically isolated inputs and outputs, and support for dual head and vision cutting applications, it is ideal for advanced industrial laser systems.

Specifications:
  • Model: RDC8445S EC

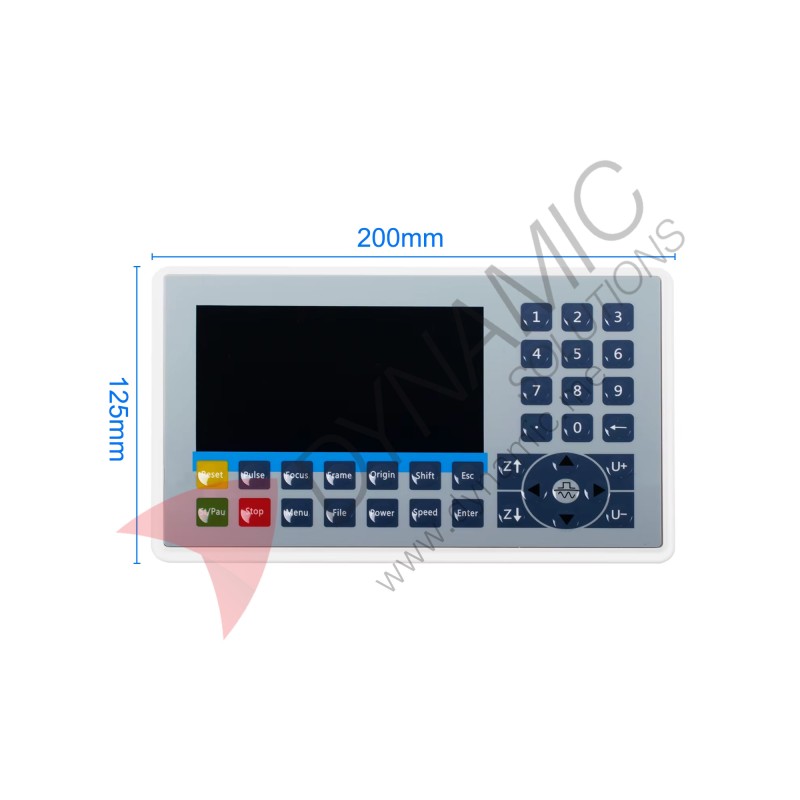

  • Display: 5 inch Color Screen
  • Motor Interfaces: 4 Axis
  • Maximum Output Frequency: 400 kHz
  • Motor Drive Current: 20 mA, Common Anode Interface
  • Onboard Memory: 128M Non Editable
  • USB Transmission Distance: Up to 5 m
  • Network Transmission Distance: Up to 200 m
  • Interpolation Accuracy: +/- 0.5 Pulse
  • OC Outputs: 4 Optically Isolated Outputs, 300 mA Driving Capacity
  • Digital Inputs: 4 Optically Isolated Inputs, 5V 12V 24V Compatible
  • Relay Drive: Supports 5V and 24V Relay
  • Extended Port: RS232 Compatible
  • Application: CO2 Laser Engraving and Cutting Machines
