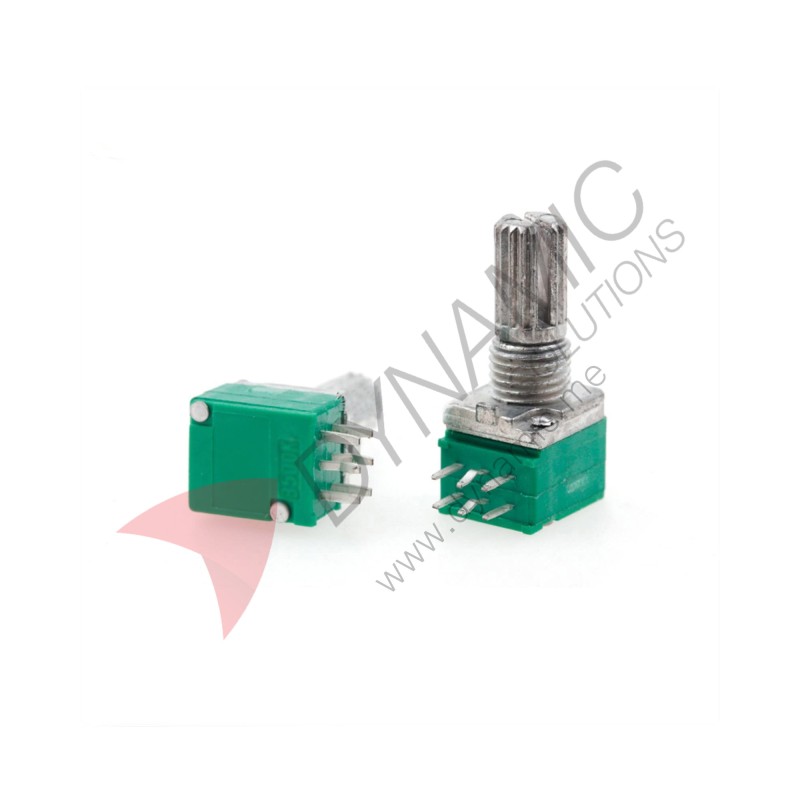

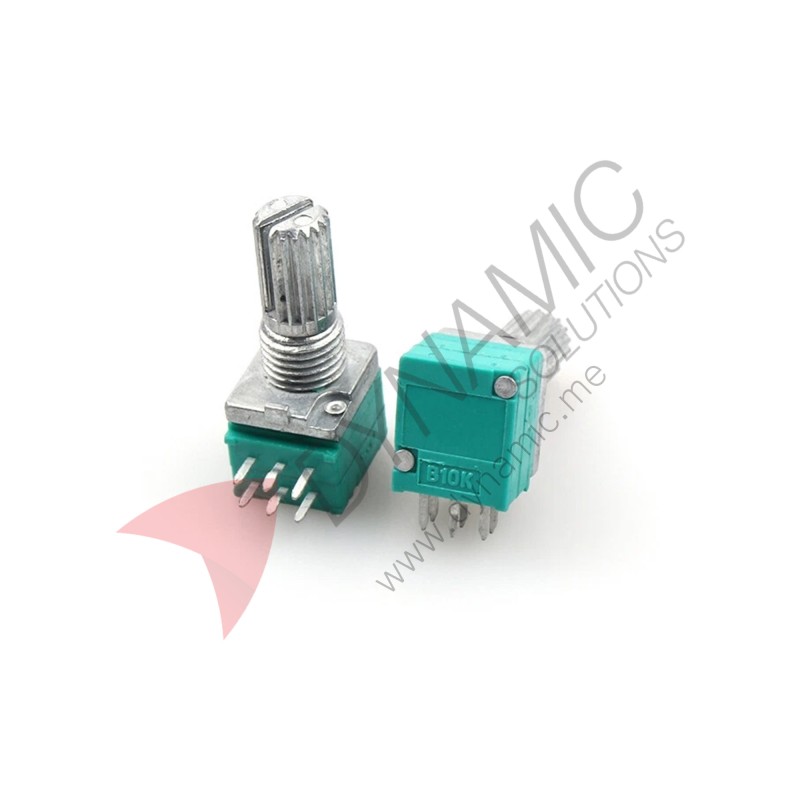

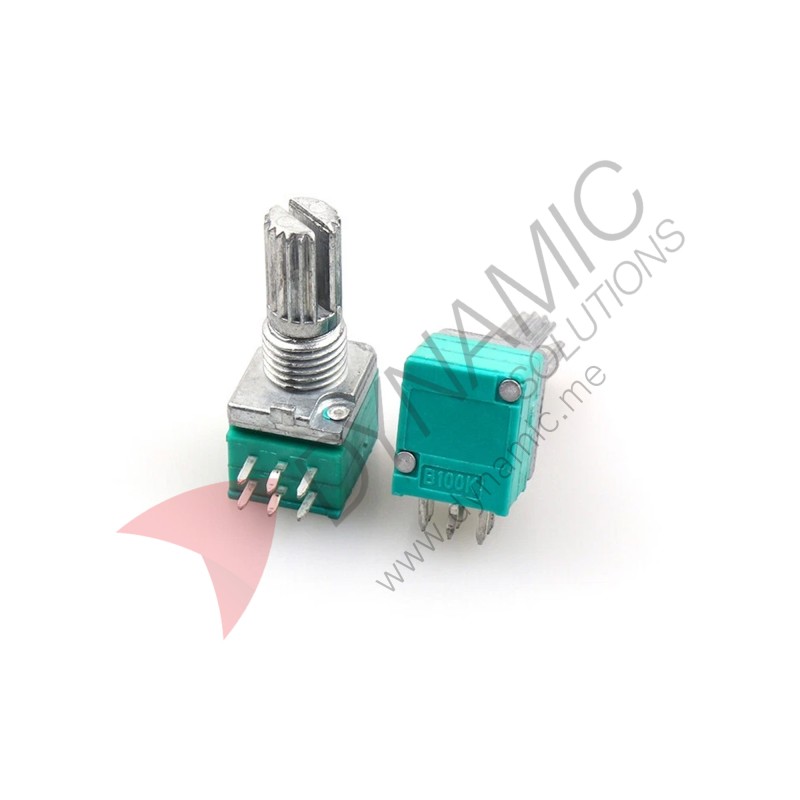

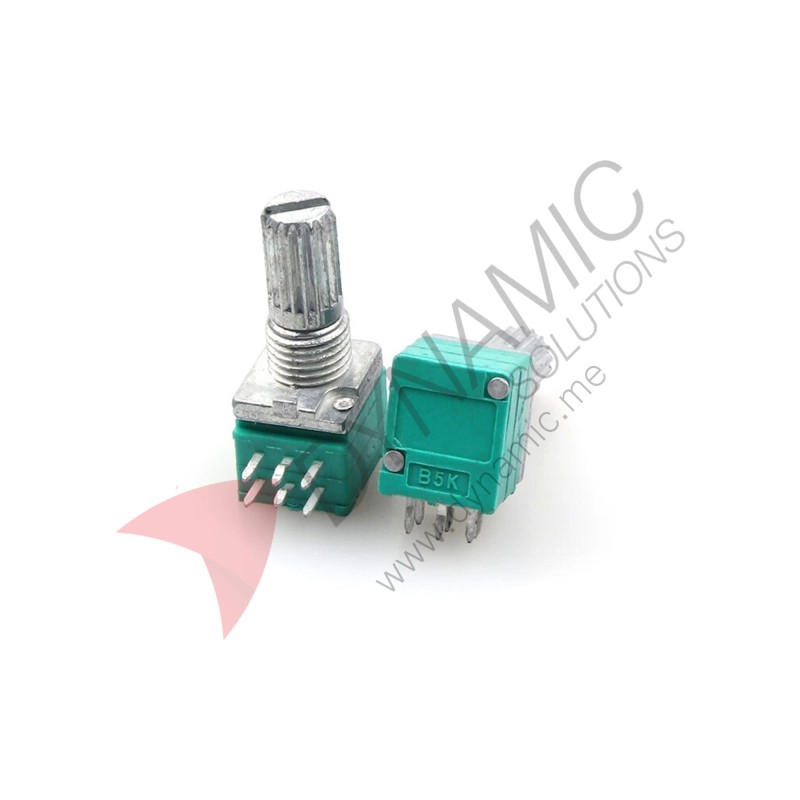

Potentiometer 6 Pin RK097G

Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
Potentiometer 6 Pin RK097G
  • Availability: In Stock
  • SKU: ELE-ELC-148
$0.30
Ex Tax: $0.30

Available Options

Add to Cart
Buy Now Question?
Add to Wish List

Features:
The RK097G Dual Potentiometer is a compact and reliable rotary control component designed for audio and electronic applications. With a 6 pin duplex design, it allows simultaneous control of two channels, making it ideal for volume control and signal adjustment. It offers smooth rotation, stable performance and long service life, with a center click position for precise adjustment. Suitable for amplifiers, mixers and DIY electronics projects.

Specifications:
  • Model: RK097G
  • Type: Dual (Duplex) Potentiometer
  • Pins: 6 Pin
  • Resistance Options: B5K, B10K, B100K
  • Total Rotation Angle: 300° ±10°
  • Rotation Torque: 1 to 20 mN·m
  • Click Position: Center
  • Click Torque: 2 to 20 mN·m
  • Push Pull Strength: Push 60N / Pull 40N
  • Resistance Tolerance: ±20%
  • Rated Power: 0.05W (curve B)
  • Max Operating Voltage: 50V AC
  • Resistance Taper: B (Linear)
  • Insulation Resistance: ≥100 MΩ
  • Slide Noise: <100 mV
  • Applications: Audio equipment, amplifiers, volume control, electronic circuits

We offer fast worldwide shipping with reliable service. Orders are processed within 12h and delivered in:

  • Lebanon:
    1–3 working days via Aramex ($4 fee, extra for machines).

  • International:
    3–10 working days (fees depend on weight/volume).

You'll receive an email with tracking details once your order ships. Import taxes may apply and are the customer's responsibility.

Dynamic.me lets buyers pay online, via Cash on Delivery (COD), or other available methods. It only facilitates payments and is not responsible for issues between buyers and sellers. Buyers' funds are held at their own risk.
