Name: Leadshine Stepper Motor Nema 34 86CM85
Brand: Leadshine
SKU: CNC-ACC-110
Price: 90.00 USD
Availability: InStock

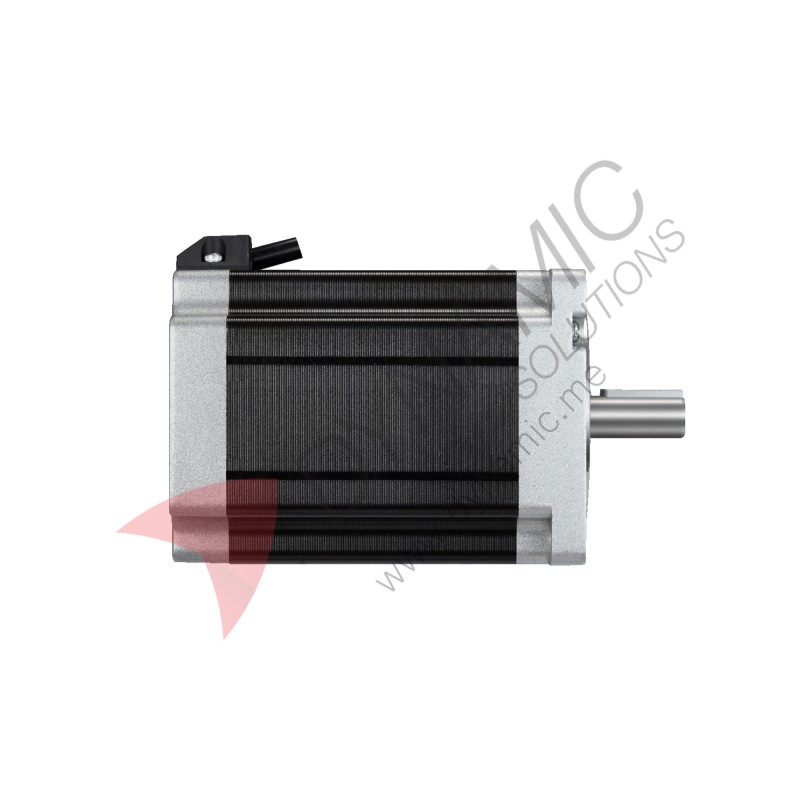

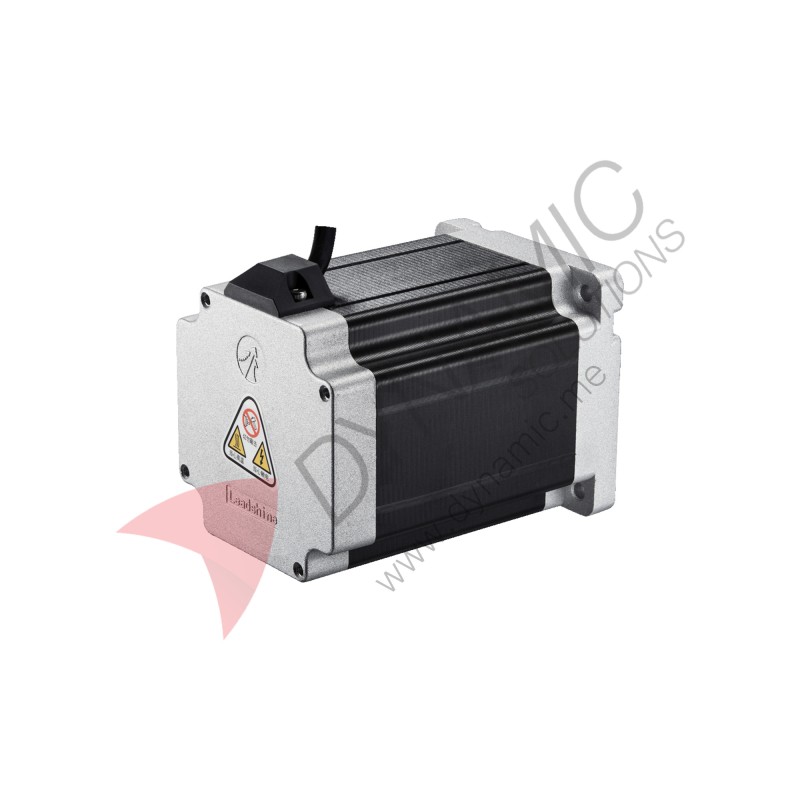

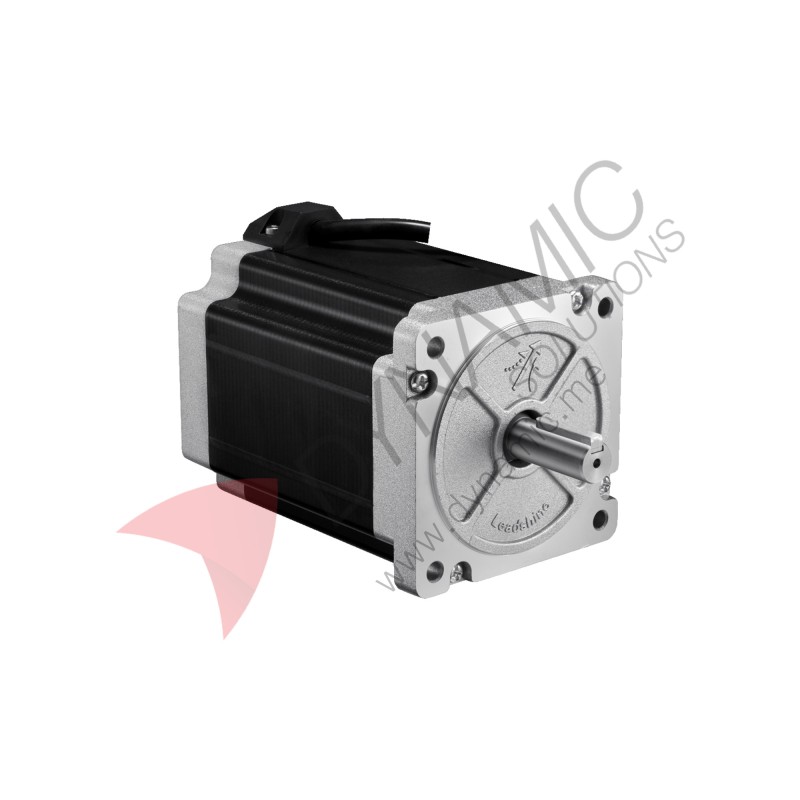

Leadshine Stepper Motor Nema 34 86CM85

Availability: In Stock
Brand: Leadshine
Weight: 3.80kg
SKU: CNC-ACC-110

Leadshine

$90.00

Ex Tax: $90.00

Qty

Description

Features:

The Leadshine Stepper Motor 86CM85 is a NEMA 34 two-phase motor with 8.5 N·m holding torque and 6A current. Built with premium bearings and shaft, it ensures high precision, low vibration, and reliable performance for CNC and automation use.

Specifications:

Model: 86CM85
Frame Size: NEMA 34
Length: 118 mm
Step angle: 1.8°
Position accuracy: 1.8° ±0.09°
Dielectric strength: 500VAC 1min
Insulation resistance: 100MΩ (500VDC)
Insulation class: B
Temperature rise (Max): 80K
Radial play: Max 0.02 mm (Load 450g)
Axial play: Max 0.08 mm (Load 900g)
Phase Current: 6.0A
Voltage: 3V
Resistance/phase: 0.53Ω
Inductance/phase: 4.25 mH
Holding torque: 8.5 N·m (1204 oz-in)
Shaft Diameter: 12.7 mm (0.5 inch)
Center Diameter: 73 mm
Inertia: 2.7 kg·cm²
Weight: 3.8 kg
IP Rating: IP40
Characteristics: Standard
Number of Phases: 2
