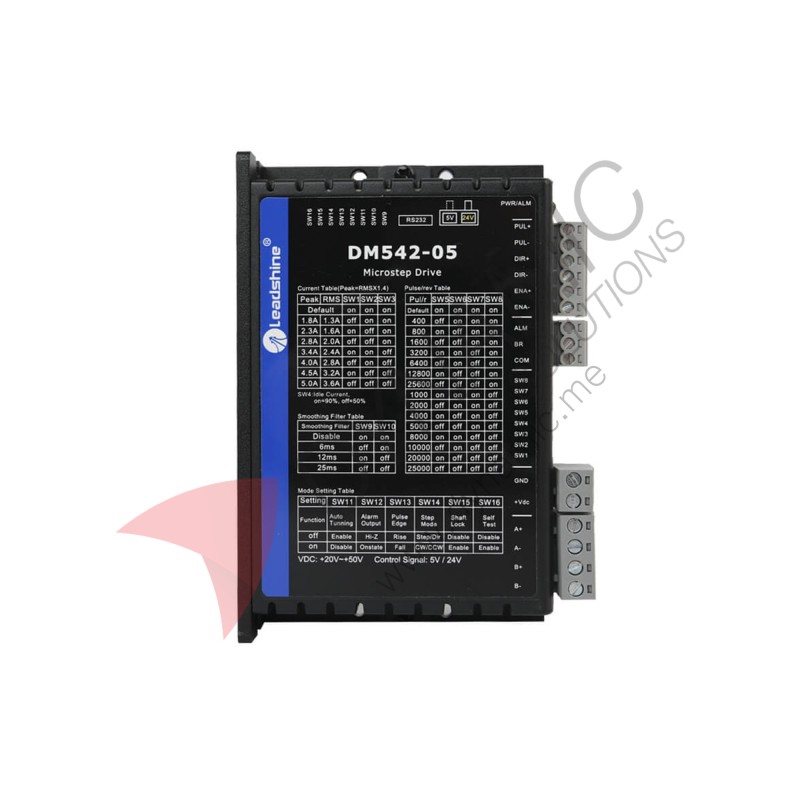

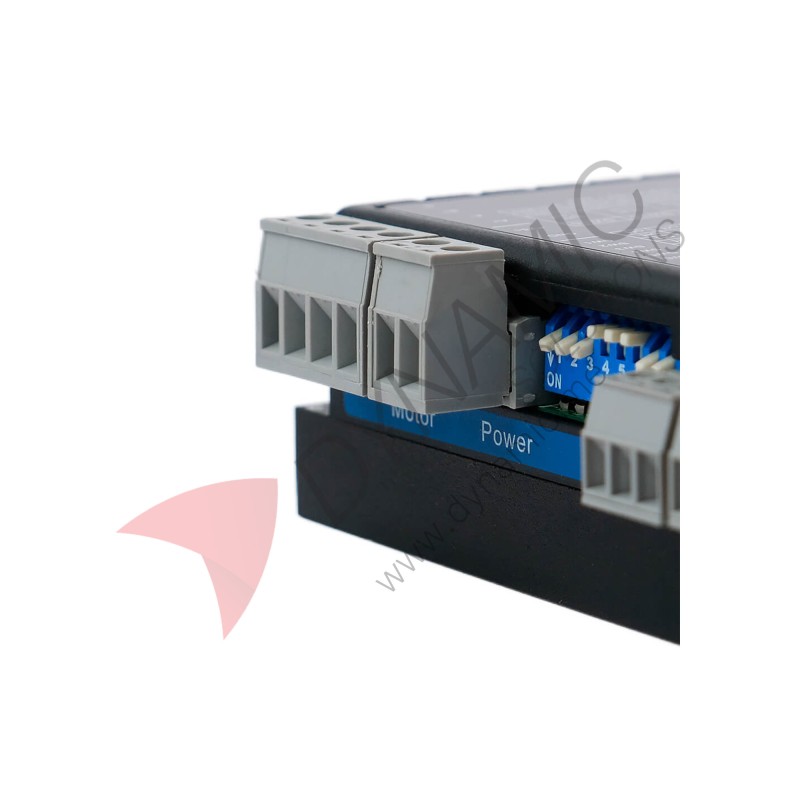

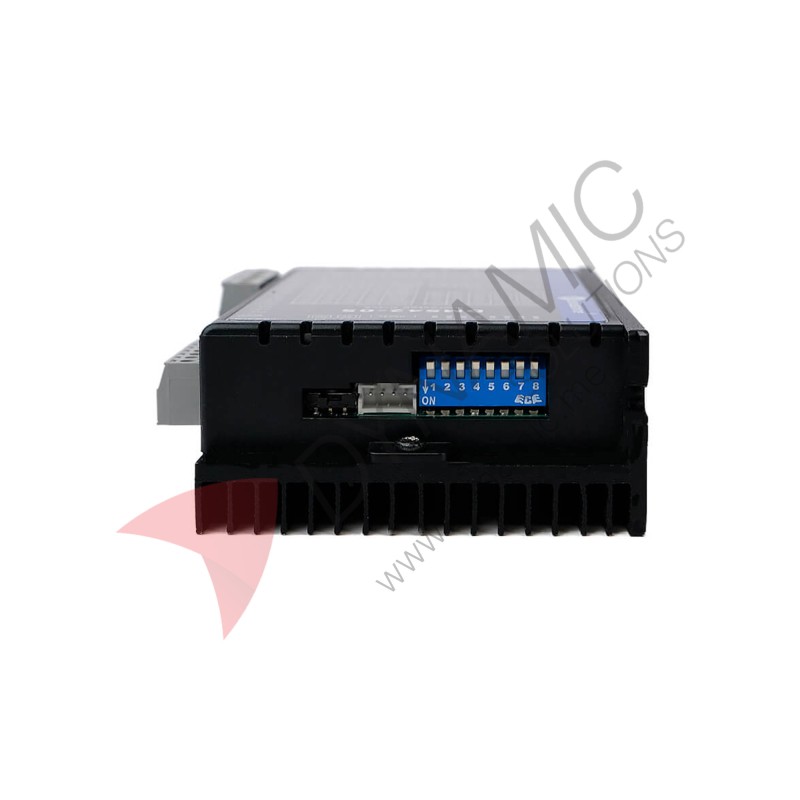

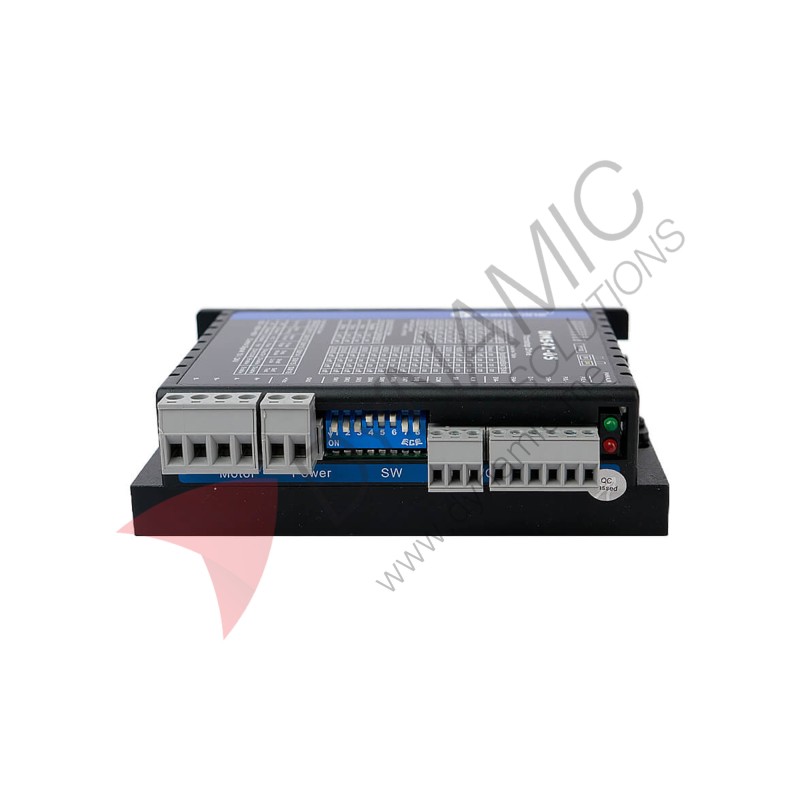

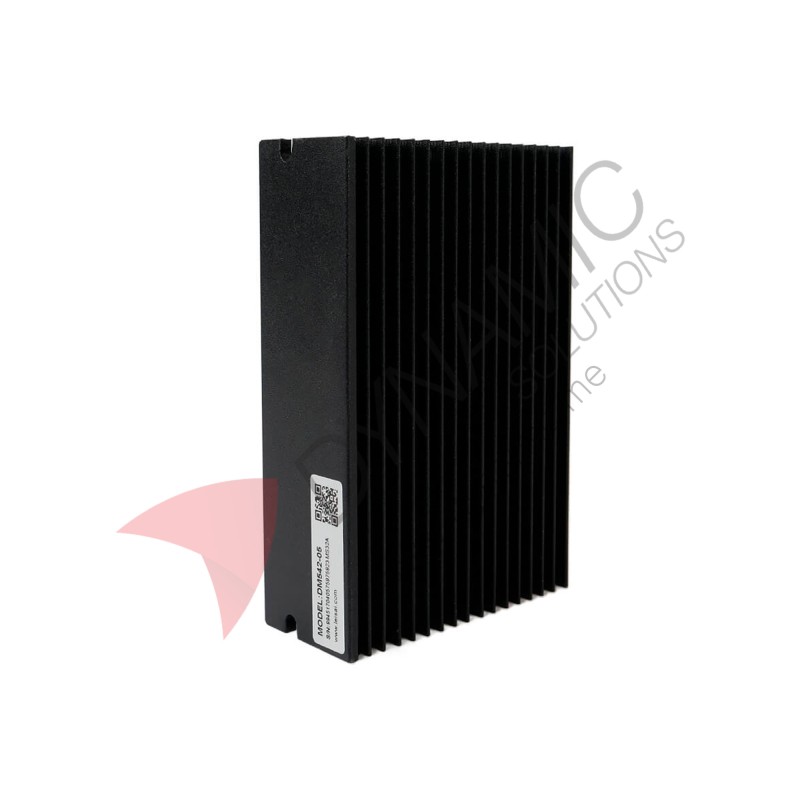

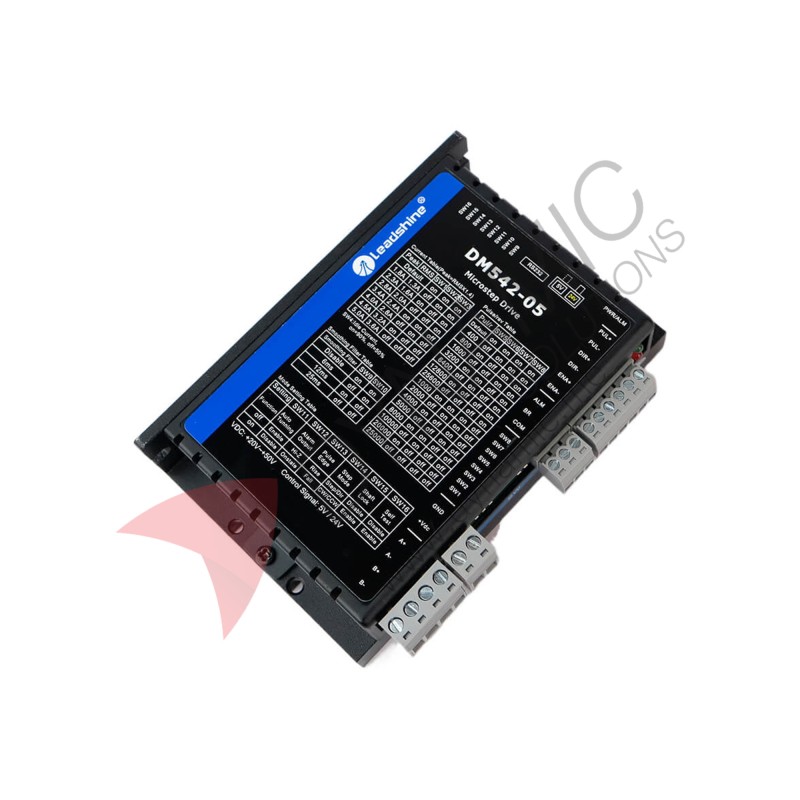

Leadshine Stepper Motor Driver DM542-05

Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
Leadshine Stepper Motor Driver DM542-05
  • Availability: In Stock
  • Brand: Leadshine
  • Weight: 0.26kg
  • Package Size: 12.00cm x 8.50cm x 3.50cm
  • SKU: CNC-COD-021
Leadshine Leadshine
$57.00
Ex Tax: $57.00
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The Leadshine Driver DM542-05 is a fully digital stepper motor driver based on advanced DSP control technology. It delivers smooth motion, optimal torque output and eliminates mid range instability for CNC machines, laser systems and automation equipment. Supporting up to 4.2A output current and 18-50VDC input, it offers multi stepping, anti resonance control and 15 selectable microstep resolutions for precise and stable motor performance.

Specifications:
  • Model: DM542-05
  • Driver Type: Digital Stepper Motor Driver
  • Supply Voltage: 18-50VDC
  • Maximum Output Current: Up to 4.2A
  • Input Pulse Frequency: Up to 200KHz
  • Control Modes: PUL DIR and CW CCW
  • Motor Compatibility: 2 Phase and 4 Phase Stepper Motors
  • Microstep Resolutions: 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
  • Input Type: Optically isolated TTL compatible
  • Protection: Overvoltage, overcurrent, phase fault
  • Additional Features: Anti resonance, automatic idle current reduction, self checking and automatic parameter setting
