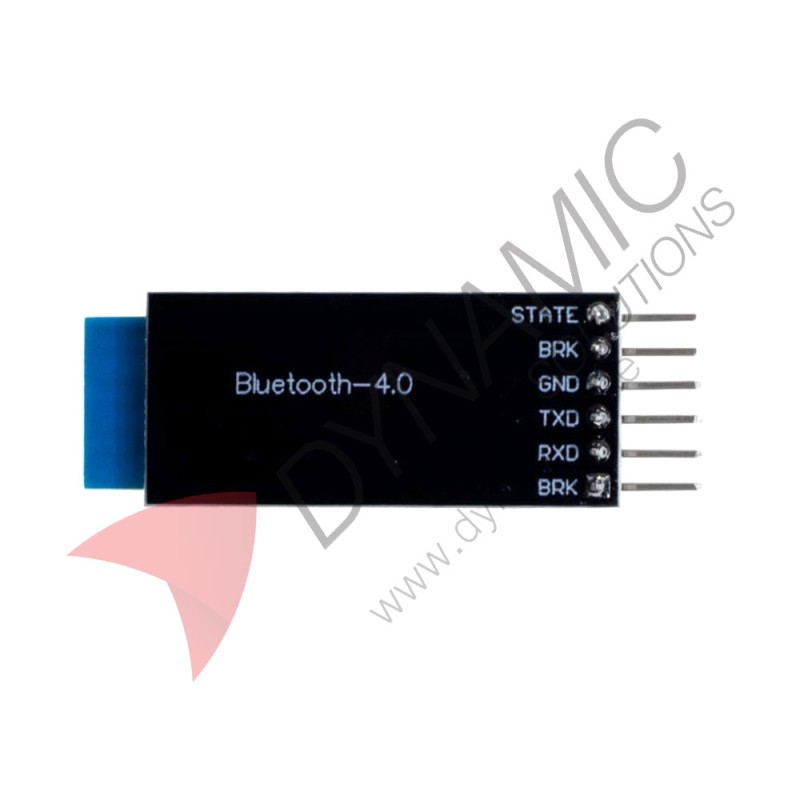

HM-10 Transparent Serial Port Bluetooth 4.0 Module with Logic Level Translator

HM-10 Bluetooth module description
Most complete, most convenient, and most stable Bluetooth data transmission, remote control, and data acquisition module
Master-slave in one, transparent transmission, replacing serial port
Remote control, transparent transmission, MCU is unnecessary
Remote data acquisition, transparent transmission, MCU is unnecessary

The HM-10 Bluetooth module for Arduino (Master Slave) uses the TI CC2540 or CC2540 chip, configure 256KB space, and support AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use.

Product Parameters
Bluetooth Protocol: Bluetooth Specification V4.0 BLE
USB Protocol: USB V2.0
Operating Frequency: 2.4GHz ISM band
Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
Transmitting Power: ≤4dBm
Sensitivity: ≤-84dBm at 0.1% BER
Transmission Rate: Asynchronous: 6 kbps
Synchronous: 6 kbps
Security Feature: Authentication and encryption
Support Service: Central & Peripheral UUID FFE0, FFE1
Power Supply: +3.3VDC 50mA
Operating Temperature: -5 ~ +65 Centigrade
Physical Dimension: 27mm x 13mm x 2.2 mm.
