GY-PCM5102 Interface I2S DAC Decoder Module PCM5102A

New

GY-PCM5102 Interface I2S DAC Decoder Module PCM5102A

Availability: In Stock
Weight: 0.01kg
Package Size: 10.00cm x 6.00cm x 1.00cm
SKU: ELE-SEN-173

$4.00

Ex Tax: $4.00

Qty

Description

Features:

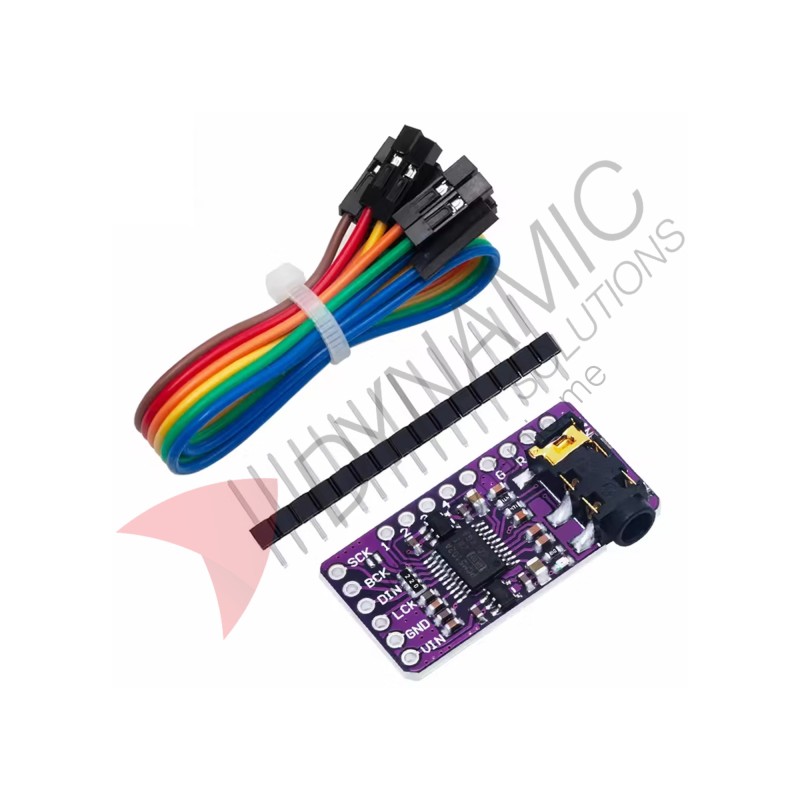

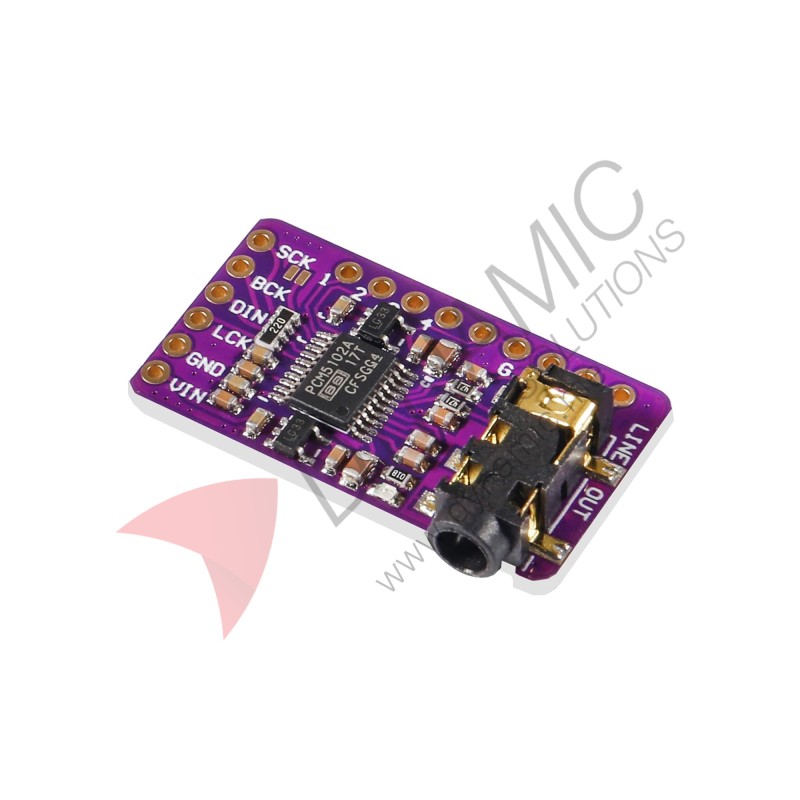

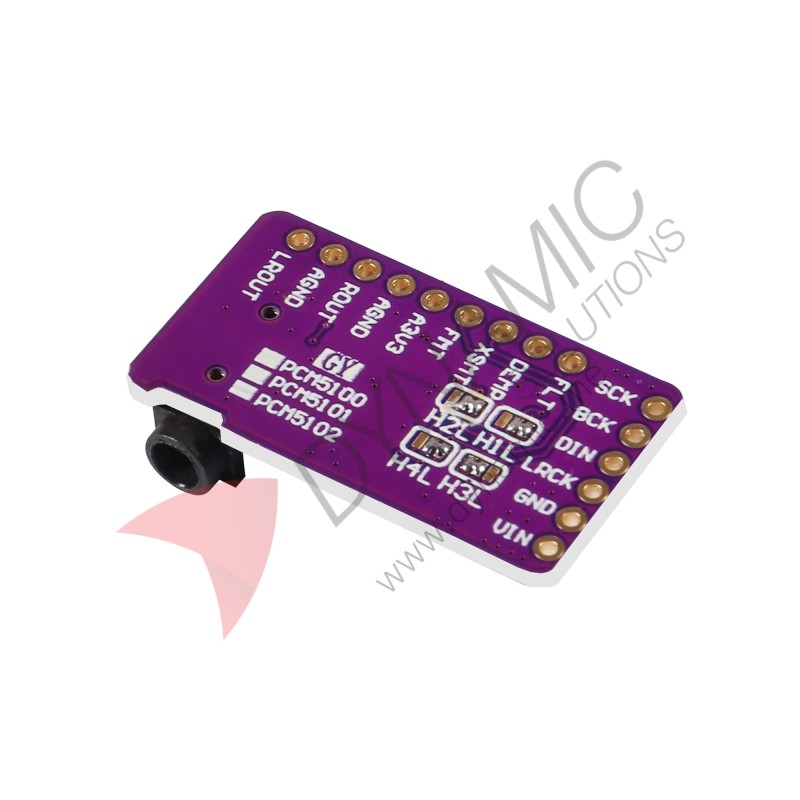

The GY-PCM5102 is an I2S DAC decoder module that converts digital I2S audio into high-fidelity analog stereo output using the PCM5102A chip. The module delivers clear, rich and detailed audio with low distortion, high dynamic range and minimal noise, and because it handles the conversion digitally it sounds considerably better than built-in analog sound on a single board computer. The module supports high-resolution audio up to 32-bit and sampling rates from 8kHz to 384kHz, with a typical dynamic range of 112dB. The module ships with a stereo line out jack soldered to the board and comes in the pHAT format for Raspberry Pi, with clearly labeled pins for quick wiring. The module is used with Raspberry Pi, ESP32, ESP8266 and Arduino to build DIY music players, audio amplifiers, home audio systems, A/V receivers, DVD and BD players, HDTV receivers and any application requiring 2VRMS audio output.

Specifications:

Operating voltage: 3.3V to 5V DC
Model: GY-PCM5102
Chipset: PCM5102A DAC
Type: I2S DAC decoder
Interface: I2S (Inter-IC Sound)
Audio output: stereo (left and right channel)
Resolution: up to 32-bit
Sampling rate: 8kHz to 384kHz
Dynamic range: 112dB typical
Signal-to-noise ratio: approx. 100dB
Output type: analog audio (L/R, GND) with stereo line out jack
Board format: pHAT

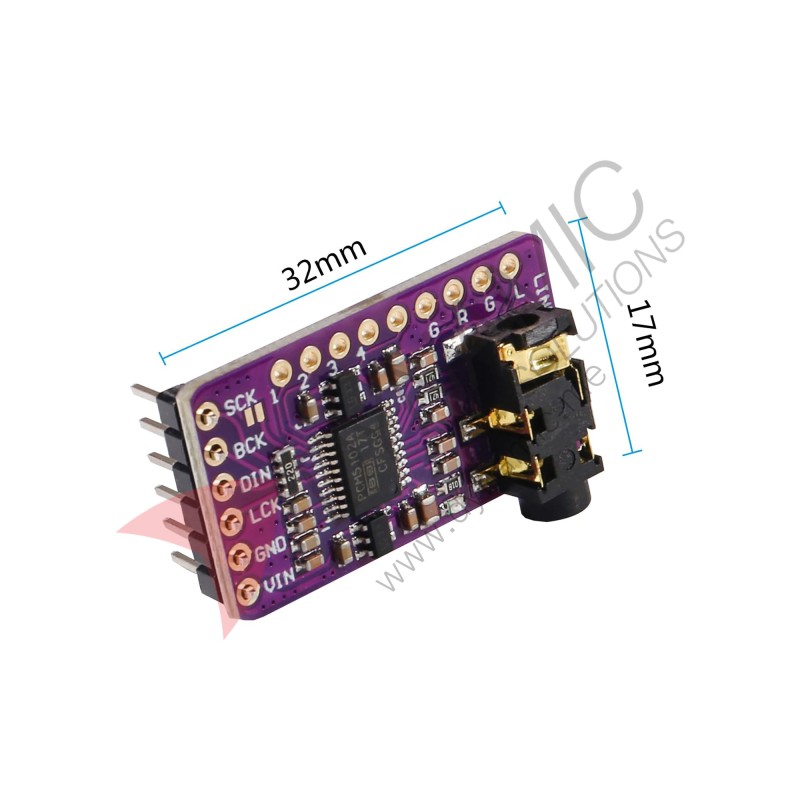

Board size: 32 x 17mm
Compatibility: Raspberry Pi, ESP32, ESP8266, Arduino (with I2S support)
