Flame Sensor 5MM Phototransistor

New

Flame Sensor 5MM Phototransistor

Availability: In Stock
Weight: 0.00kg

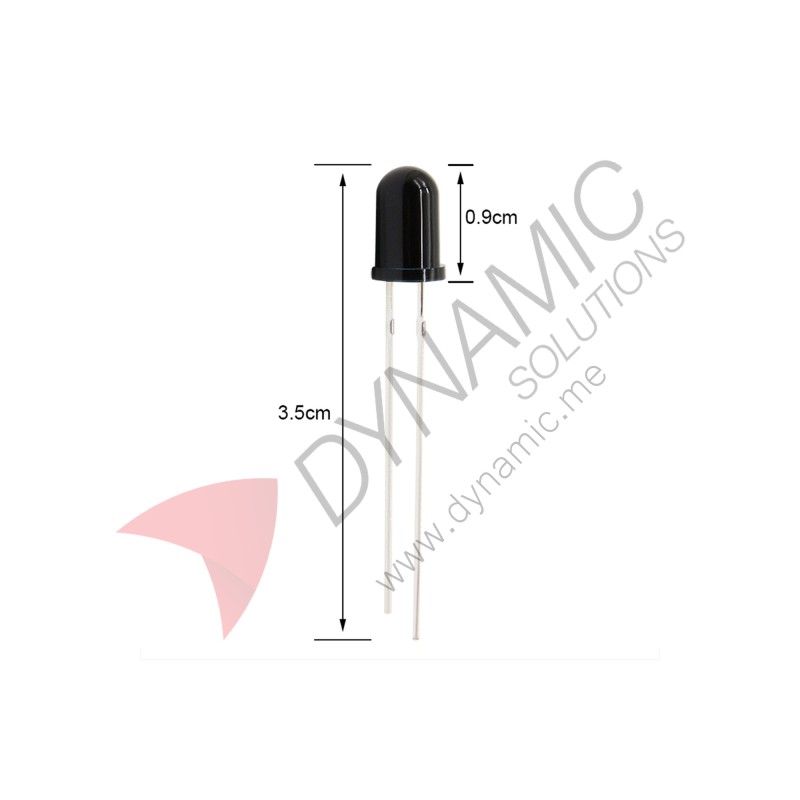

Package Size: 3.70cm x 0.60cm x 0.60cm
SKU: ELE-SEN-172

$0.15

Ex Tax: $0.15

Qty

Add to Cart

Buy Now Question?

Add to Wish List

Description

Features:

The Flame Sensor 5MM Phototransistor is an infrared sensing component that detects the light emitted by a flame within the 760nm to 1100nm wavelength range. The sensor uses an NPN silicon phototransistor housed in a 5mm black epoxy package that filters visible light and responds to the infrared radiation produced by fire. The sensor offers a detection angle of about 60 degrees and a fast 15 microsecond response time, allowing it to react quickly to flame flicker. The sensor is used in fire alarm systems, industrial safety monitoring, firefighting robots, boiler and burner flame supervision, and Arduino based fire detection projects.

Specifications:

Sensor type: NPN silicon phototransistor
Detection wavelength: 760nm to 1100nm
Peak sensitivity: 940nm
Detection angle: approx. 60 degrees
Response time: 15us rise and fall
Collector-emitter voltage: 30V max
Collector current: 20mA max
Power dissipation: 75mW
Operating temperature: -25C to +85C
Leads: 2 (collector and emitter)
