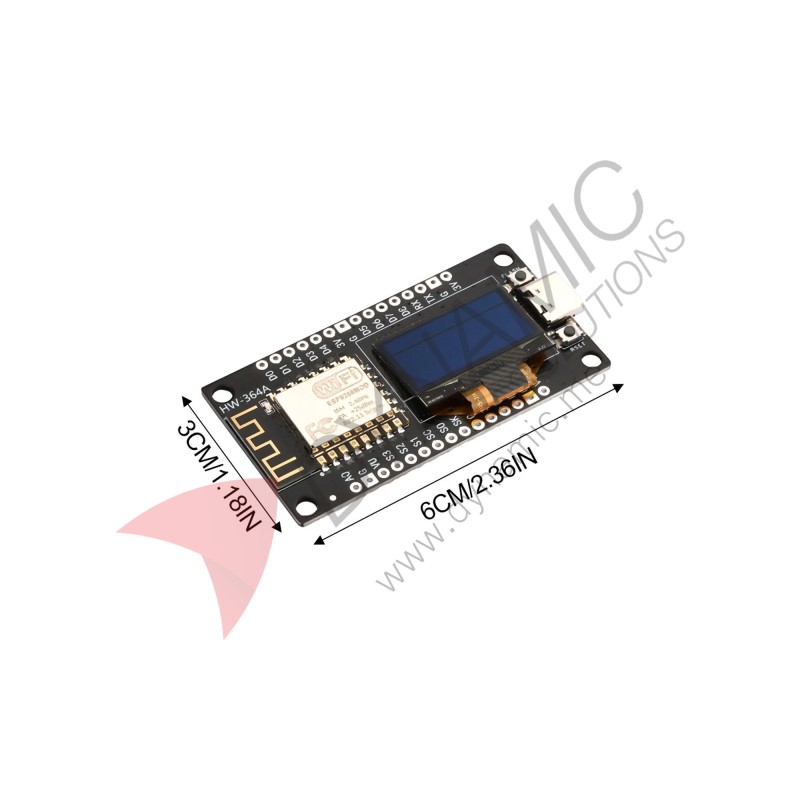

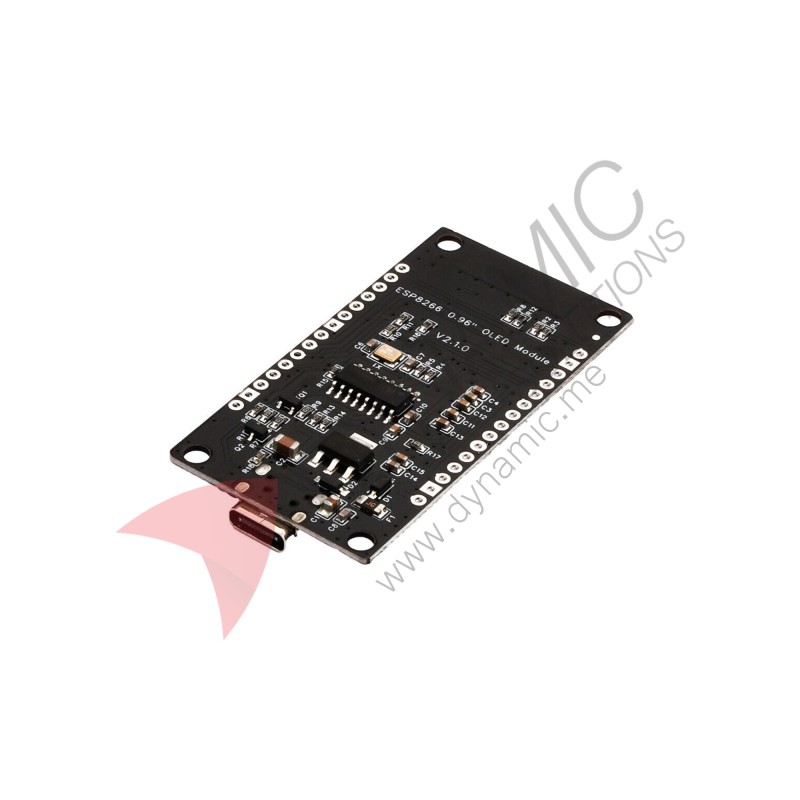

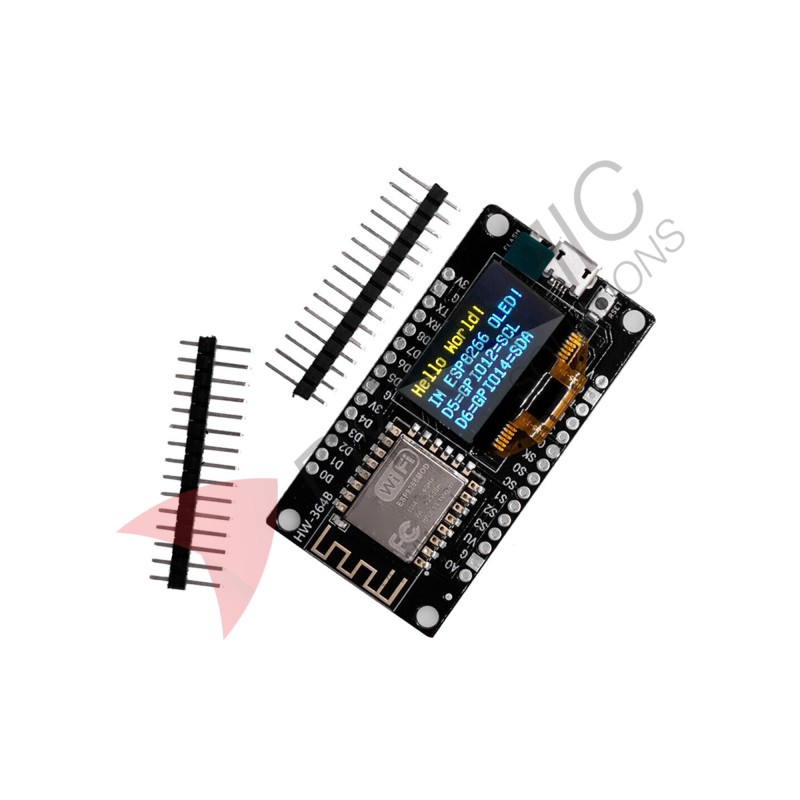

ESP8266 ESP-12F 0.96 Inch OLED Development Board

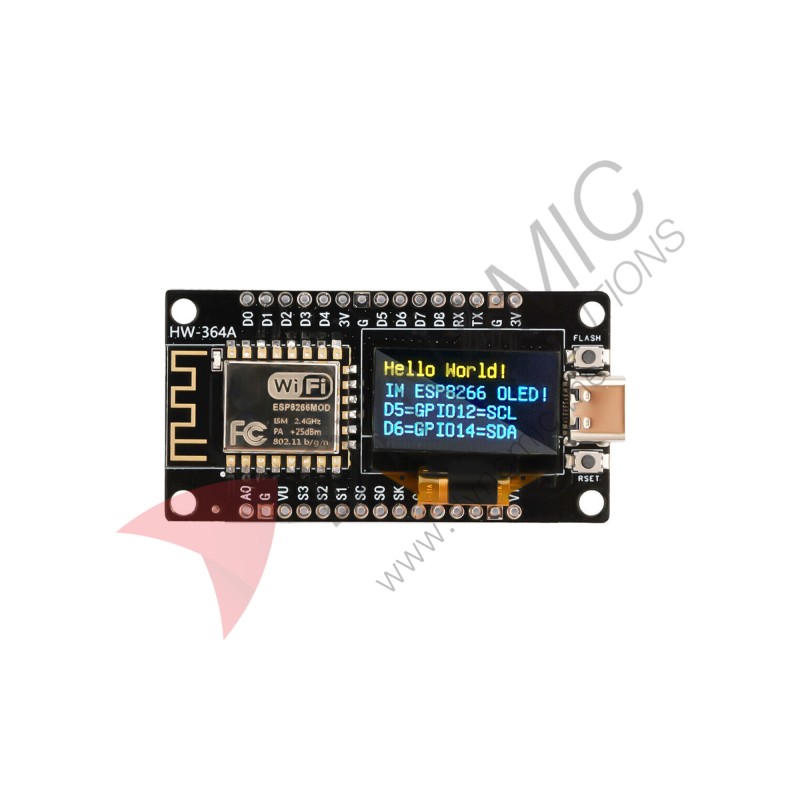

The ESP8266  0.96 Inch OLED Development Board integrates an ESP8266  and a 0.96 inch OLED screen on one board, keeping the same size and peripheral ports as a traditional ESP8266 module while adding a high-definition display. The board removes the need for wires and breadboards to drive a screen, connecting to the OLED internally over I2C on the SDA (D6 / GPIO12) and SCL (D5 / GPIO14) pins. The display is a 128x64 self-emitting OLED with an SSD1306 driver, a viewing angle above 160 degrees and a yellow-blue colour split, and it needs no backlight. The board runs an ESP8266 at 80MHz with 4MB flash memory and 64KB SRAM, carries a complete network protocol stack and security mechanism, and connects over a Type-C port with an onboard CH340 USB-TTL for plug and play. The board is used for network connection status displays, monitoring information, power levels, internet weather stations, news stations, clocks and similar IoT projects.
