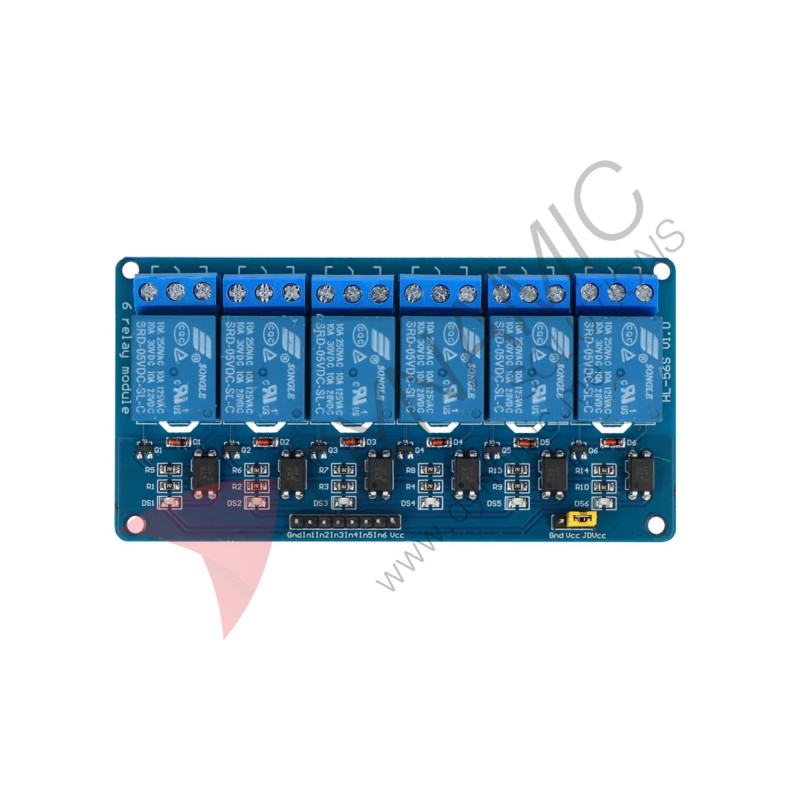

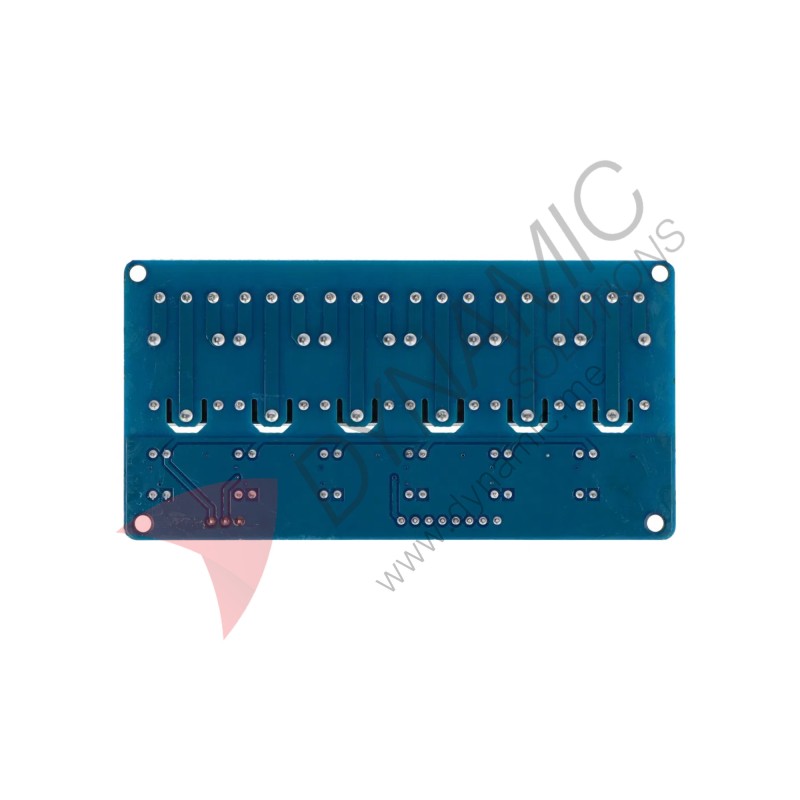

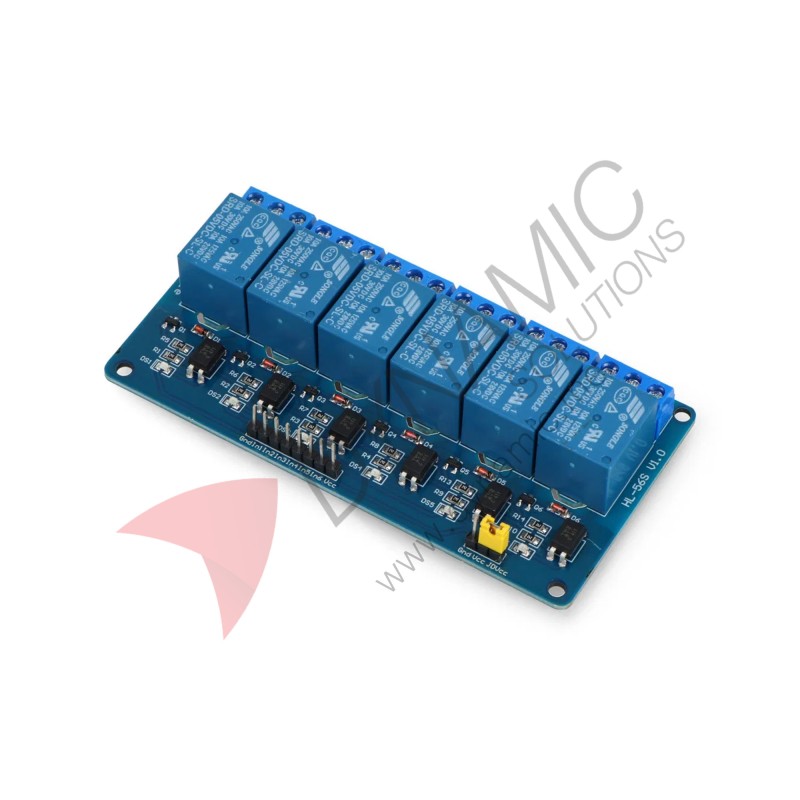

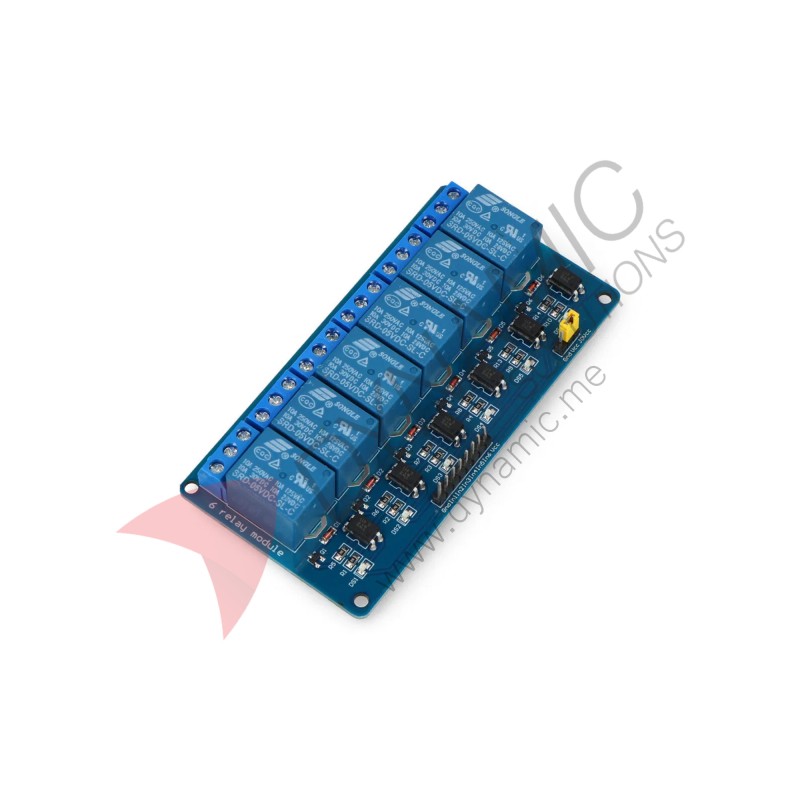

Relay Module 6 Channel 5V 10A

Availability: In Stock
Weight: 0.08kg
Package Size: 14.50cm x 9.00cm x 2.00cm
SKU: ELE-REL-016

$2.75

Ex Tax: $2.75

Qty

Description

Features:

The 6-Channel Relay Module provides reliable, isolated control for AC and DC devices. Each relay supports high loads with optocoupler isolation, status LEDs, and selectable high/low level triggering. Ideal for PLC, industrial automation, and smart home applications. Easy to install with bolt holes and terminal connections.

Specifications:

Channels: 6
Working Voltage: DC 5V
Relay Contact Capacity: AC 250V/10A, DC 30V/10A
Trigger Signal: Low or High level, selectable per channel
Trigger Current: 5mA
Isolation: Optocoupler per channel
Indicators: Power (green), relay status (red)
Module Dimensions: 108mm x 50mm x 18.6mm
Mounting: 4 bolt holes, spacing 105mm x 44mm

Module interface:

DC+: Connect to the positive of the power supply.
DC-: Connect the negative of the power supply.
IN1-IN6: According to the setting of each channel, the corresponding relay can be controlled by high or low level.

Relay output:

NO1–NO6: Relay normally open interface.
COM1–COM6 relay common interface
NC1–NC6: Relay normally closed interface.
