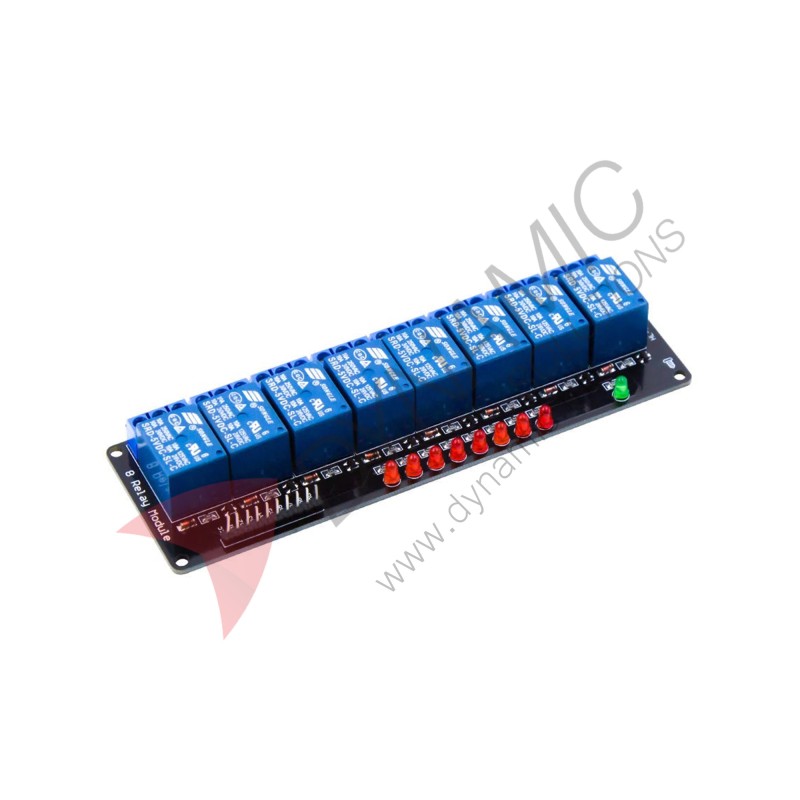

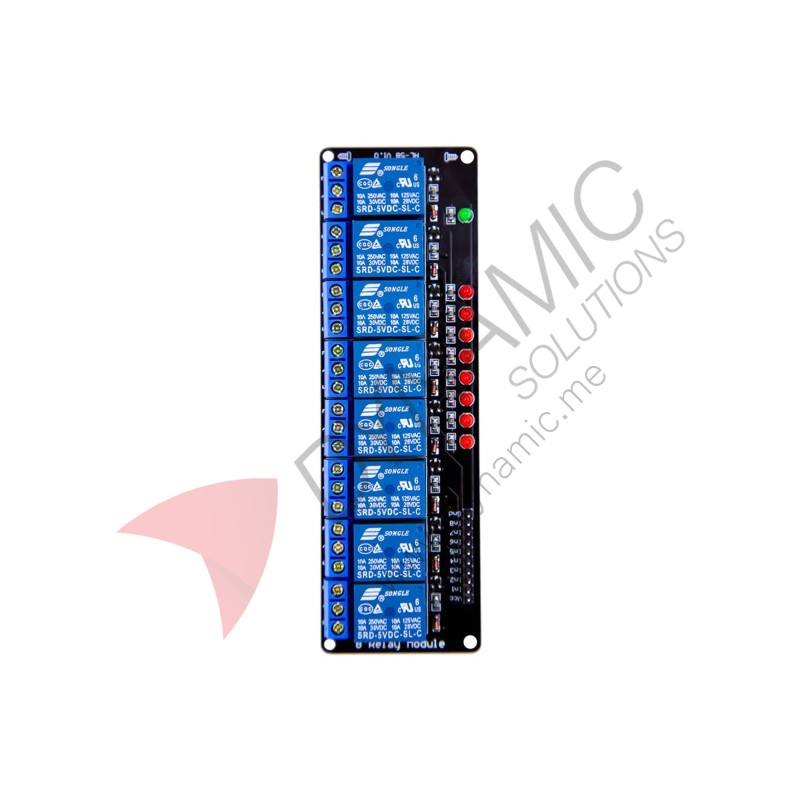

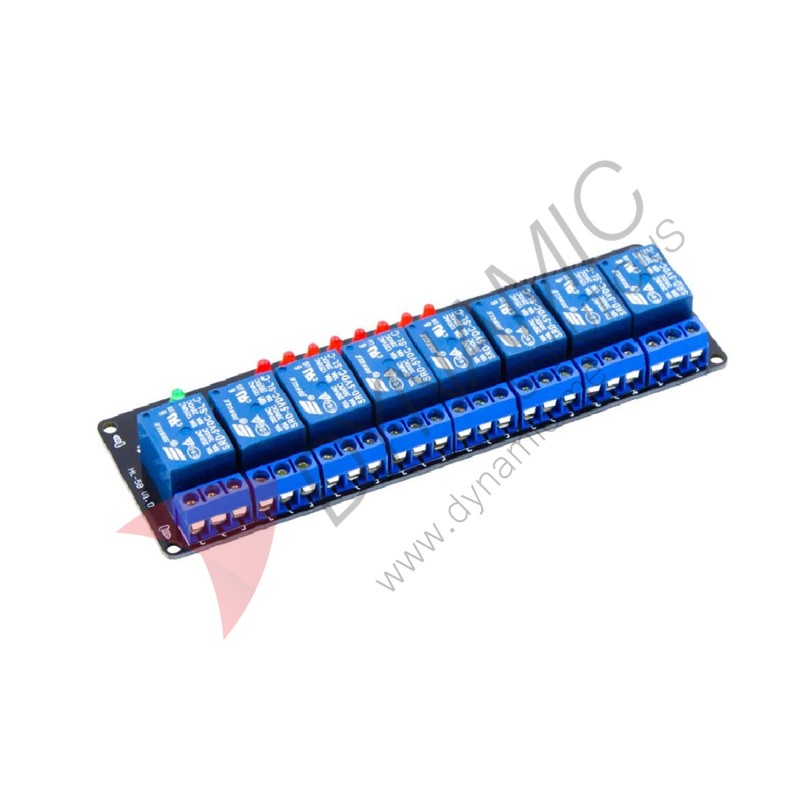

Relay 8 Channels 5V with LED

Relay 8 Channels 5V with LED
Relay 8 Channels 5V with LED
Relay 8 Channels 5V with LED
Relay 8 Channels 5V with LED
Relay 8 Channels 5V with LED
Relay 8 Channels 5V with LED
Relay 8 Channels 5V with LED
  • Availability: In Stock
  • Weight: 0.11kg
  • Package Size: 18.00cm x 9.00cm x 2.00cm
  • SKU: ELE-REL-018
$5.00
Ex Tax: $5.00
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The Relay 8 Channels 5V with LED features 8 high-power relays with LED status indicators for easy monitoring. Each channel can be triggered using low-level or high-level signals, making it compatible with 5V microcontrollers. Perfect for safely controlling AC250V/10A or DC30V/10A loads, it is ideal for home automation, industrial automation, IoT projects, smart irrigation, and security systems.

Specifications:
  • Channels: 8
  • Input Voltage: 5VDC
  • Output Voltage: AC250V / DC30V
  • Output Current: 10A Max per channel
  • Trigger Type: Low-Level (suction close) / High-Level release (configurable via jumper)
  • Trigger Current: 5mA
  • Driver: 8550 Transistors
  • LED Indicators: Power LED (Green), 8 Relay Status LEDs (Red)
  • Interface: Single-chip IO control, 3-line structure
  • Dimensions: 138 x 43 x 17 mm
  • Weight: 102 g
  • Storage Temperature: –65 to 125°C
  • Operating Temperature: –40 to 85°C
  • Usage: Home automation, industrial machinery, IoT projects, smart irrigation, security systems
