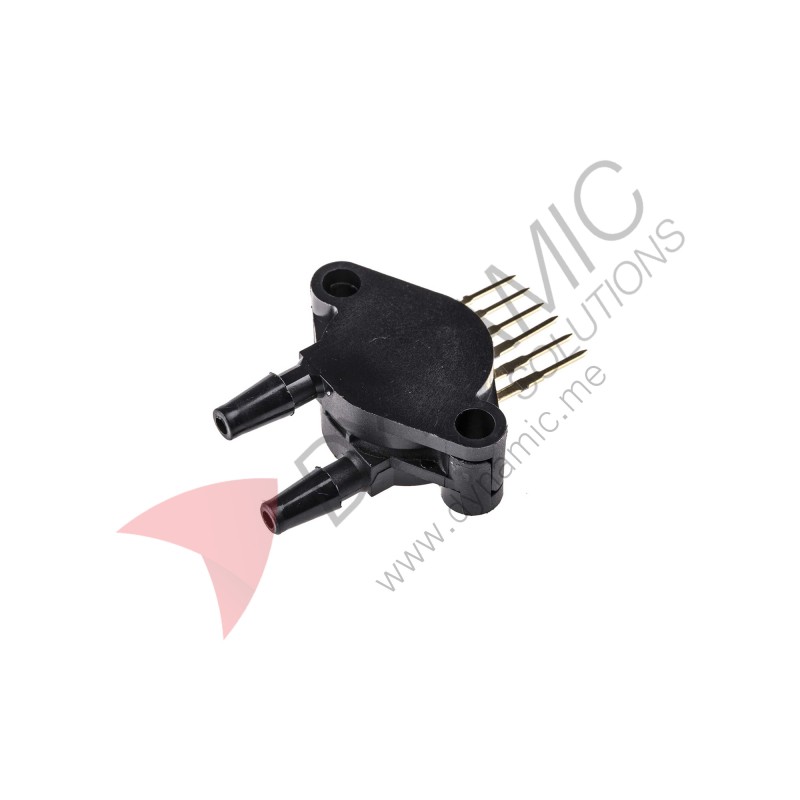

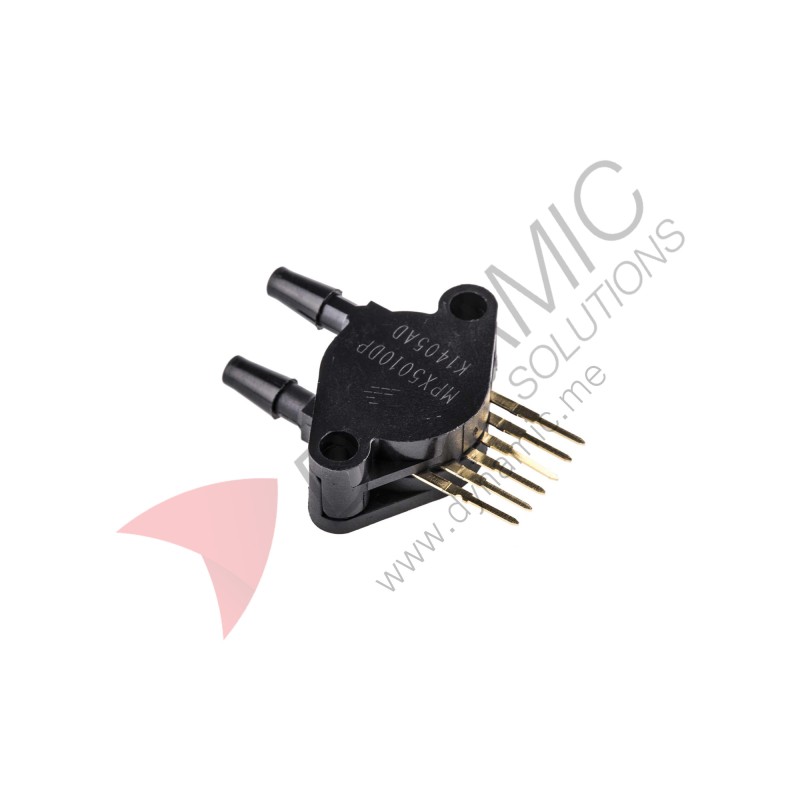

MPX5010DP Differential Pressure Sensor

Availability: In Stock
Weight: 0.01kg
Package Size: 3.80cm x 3.00cm x 1.00cm
SKU: ELE-SEN-157

$12.00

Ex Tax: $12.00

Qty

Description

Features:

The MPX5010DP differential pressure sensor delivers accurate analog output from 0–10 kPa (0–1.45 psi). Integrated, temperature-compensated, and calibrated, it is perfect for microcontroller or processor-based systems, HVAC, medical, and industrial pressure sensing applications.

Specifications:

Pressure Range: 0 to 10 kPa (0 to 1.45 psi / 0 to 1019.78 mm H₂O)
Output Voltage: 0.2 to 4.7 V (ratiometric analog)
Supply Voltage: 4.75 to 5.25 Vdc
Accuracy: ±5 % full scale (0–85°C)
Response Time: 1 ms
Operating Temperature: -40 to +125 °C
Package: Epoxy unibody with thermoplastic surface mount
Usage: Differential and gauge pressure measurement in microcontroller-based systems
