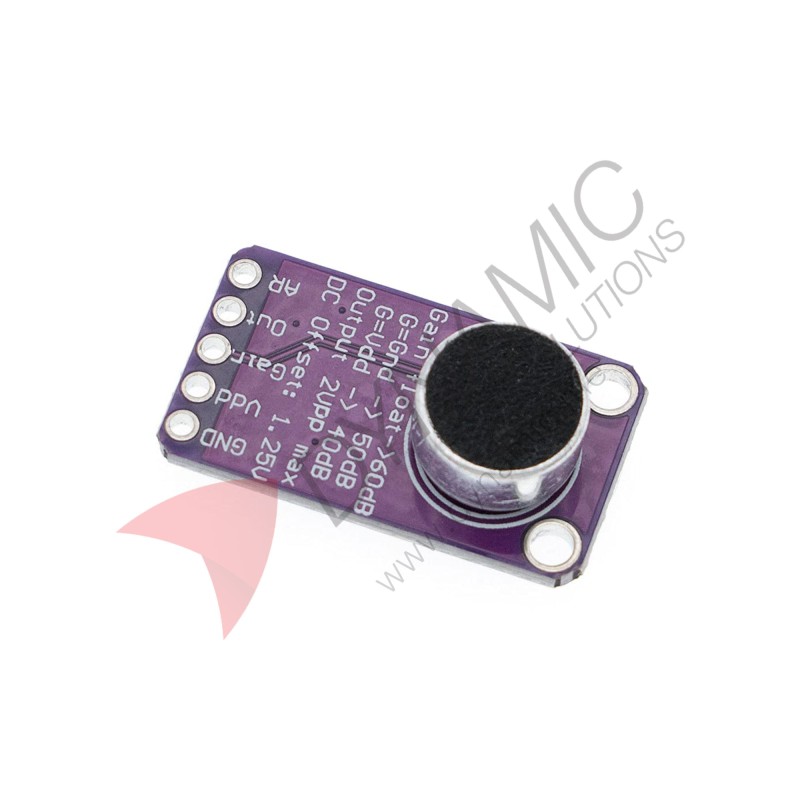

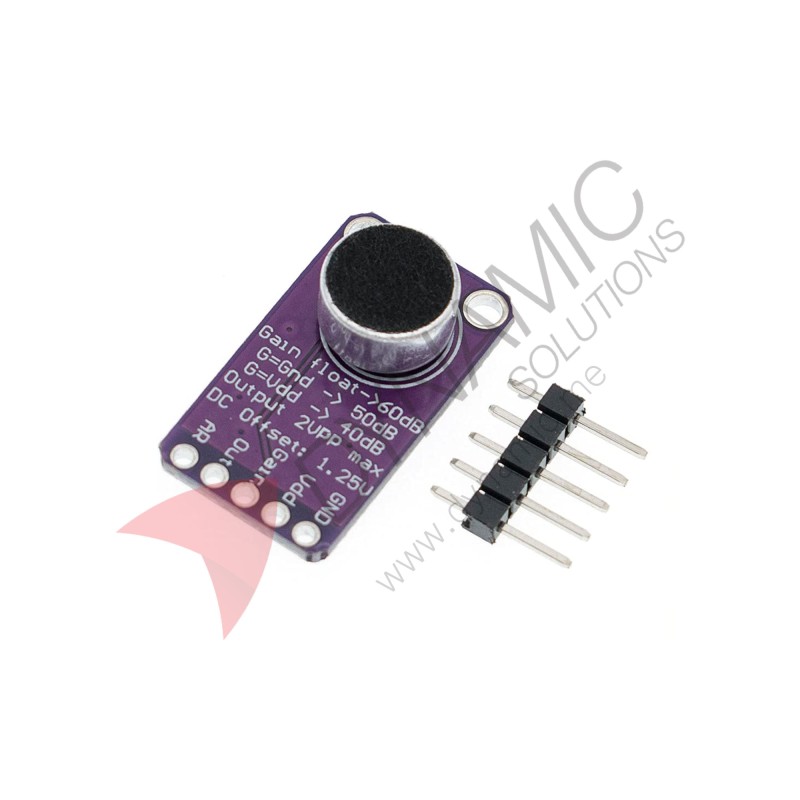

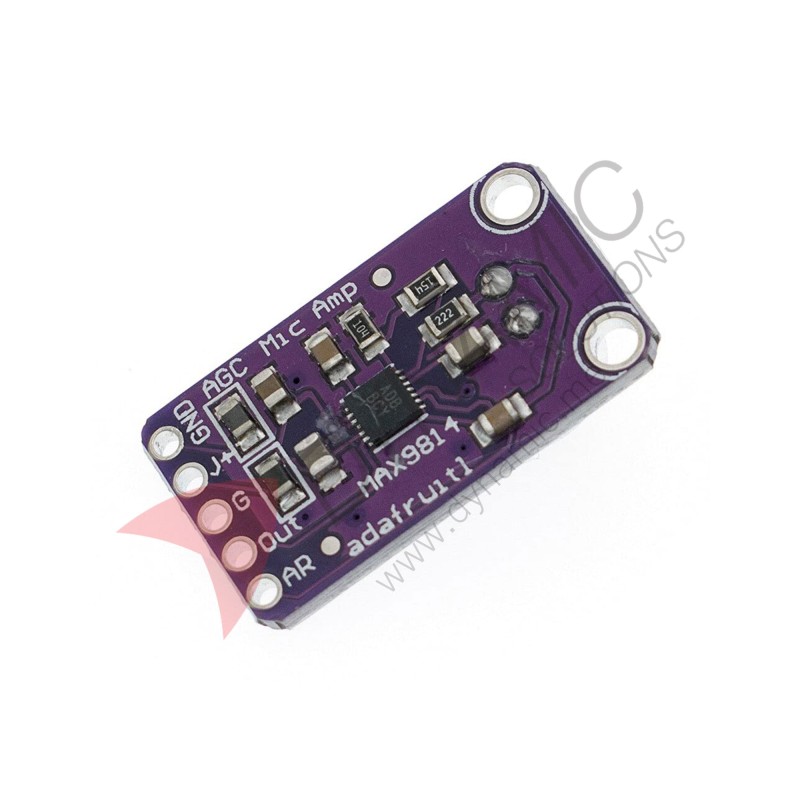

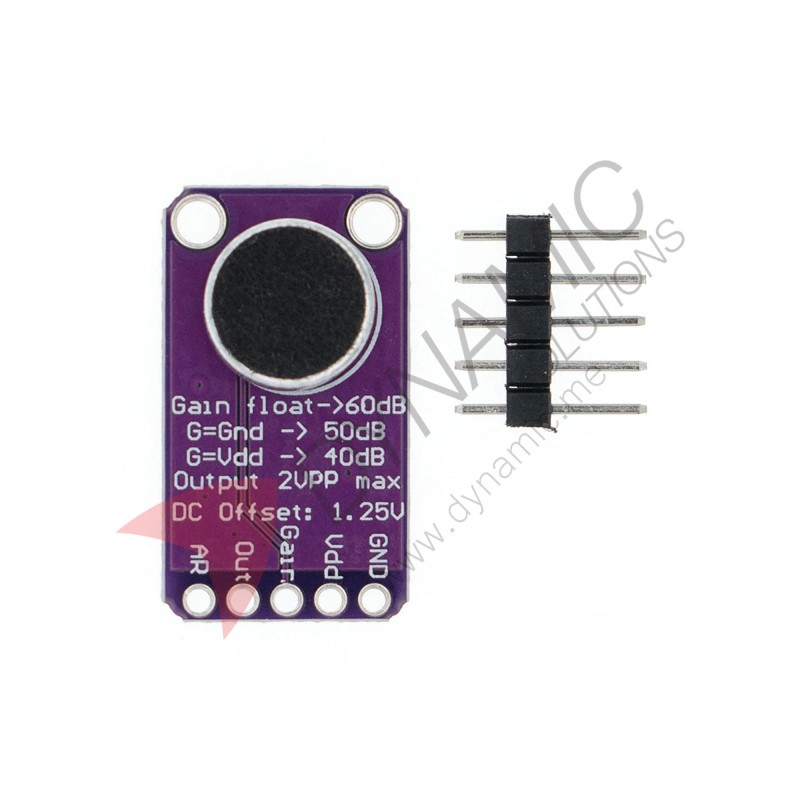

Microphone AGC Amplifier Module MAX9814

Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
Microphone AGC Amplifier Module MAX9814
  • Availability: In Stock
  • Weight: 0.00kg
  • Package Size: 6.00cm x 4.00cm x 0.80cm
  • SKU: ELE-SEN-150
$2.00
Ex Tax: $2.00
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The MAX9814 microphone AGC amplifier module provides automatic gain control for consistent audio output. Compact and efficient, it’s ideal for voice recording, audio surveillance, and embedded electronics projects.

Specifications:
  • Supply Voltage: 2.7V – 5.5V @ 3mA
  • Output: 2Vpp on 1.25V bias
  • Frequency Response: 20Hz – 20kHz
  • Programmable Attack and Release Ratio
  • Automatic Gain Control: Selectable 40dB, 50dB, 60dB
  • Low Input-Referred Noise Density: 30nV/√Hz
  • Low THD: 0.04% (typical)
  • Low Power Shutdown Mode
  • Built-in 2V Low-Noise Microphone Bias
  • Operating Temperature: -40°C to +85°C
  • Usage: Audio recording, voice detection, embedded electronics projects
