Micro:bit IOBIT V2.0 expansion board

Availability: In Stock
Weight: 0.02kg
Package Size: 10.00cm x 7.00cm x 1.20cm
SKU: ELE-DEB-IOT-034

$7.50

Ex Tax: $7.50

Qty

Description

Features:

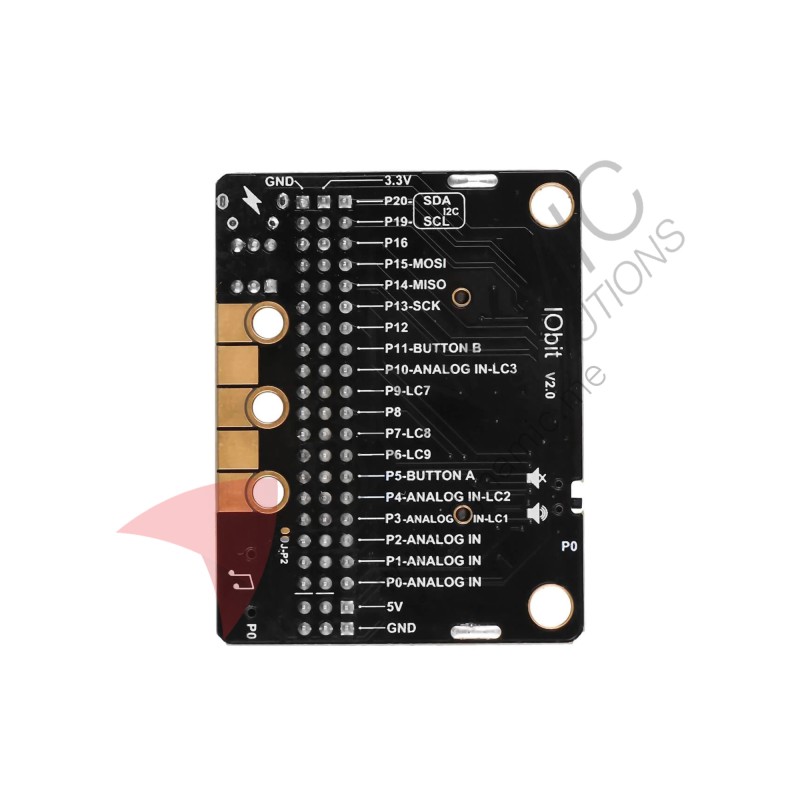

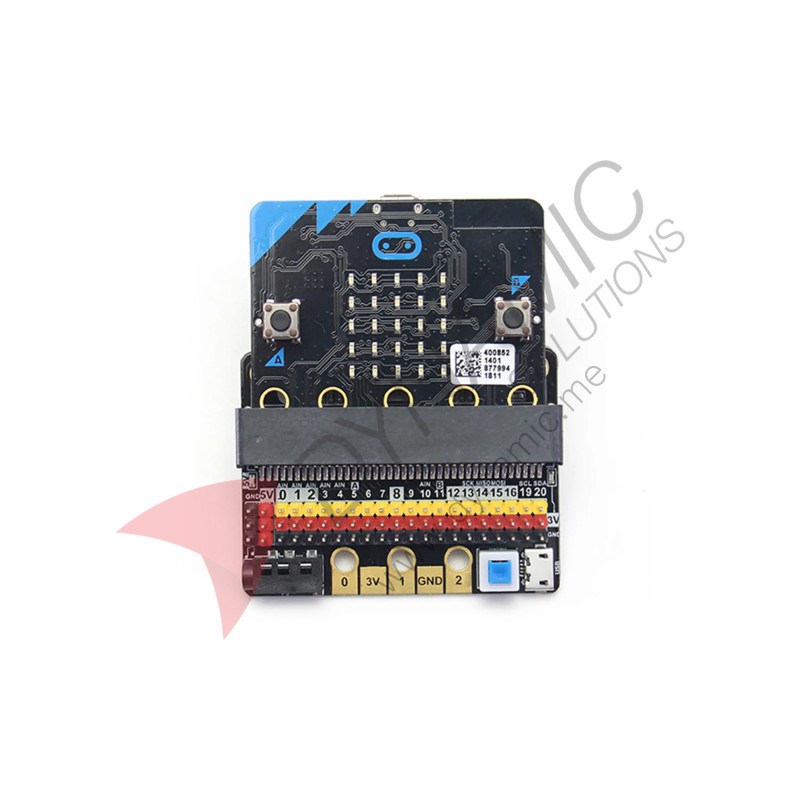

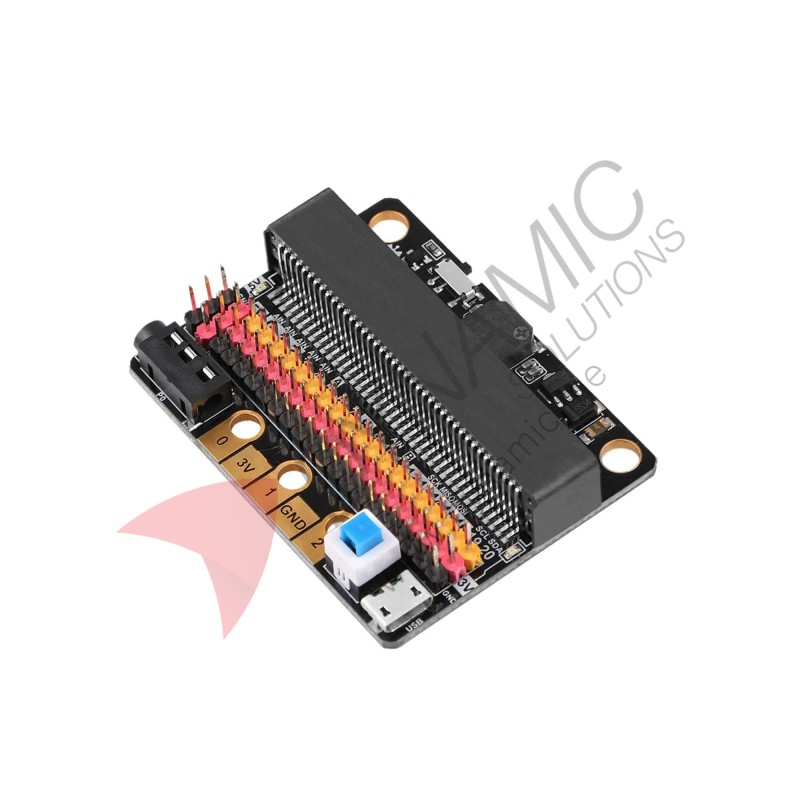

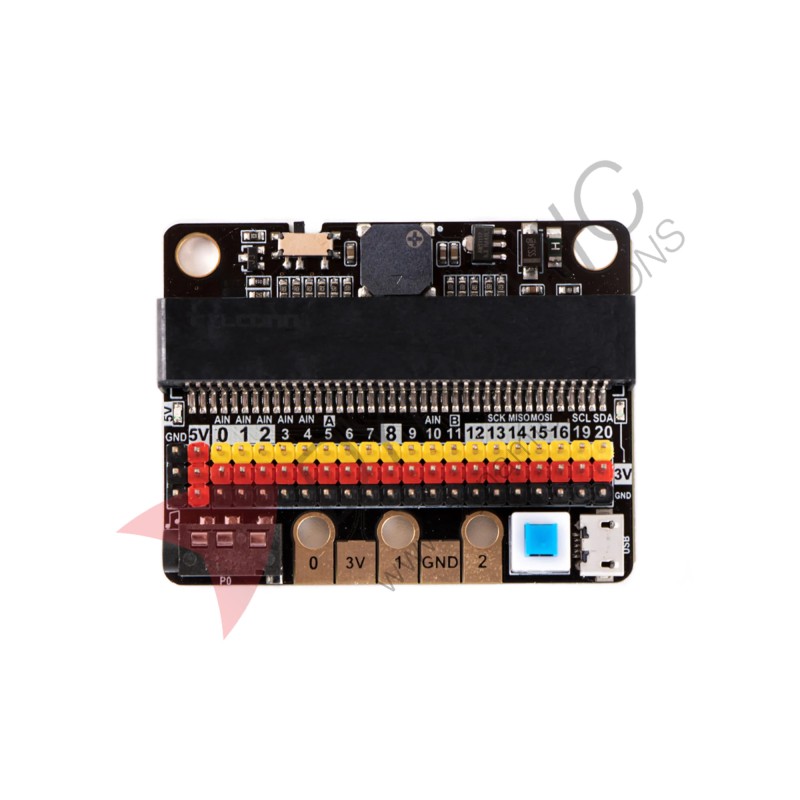

The IObit V2.0 expansion board for Micro:Bit is designed to simplify access to all Micro:Bit IO ports. Featuring both 3.3V and 5V compatibility, this board enables easy interfacing with various sensors and servos. It includes a built-in buzzer connected to pin P0 through a toggle switch, LEGO-compatible holes for mechanical integration, and short-circuit protection via a self-recovery fuse. Compared to IObit 1.0, it offers higher drive capacity, supporting multiple 9g servos. The design prevents reverse connection, making it highly suitable for educational environments, DIY projects, and electronic prototyping.

Specifications:

Dimensions: 57 × 44 × 12 mm
Power: 3.3V (Micro:Bit) / 5V (USB)
Operating Voltage: 3.3V / 5V
Hardware: Edge connector (IO x3), buzzer, 3.5mm jack, power switch
Protection: Short-circuit protection and self-recovery fuse
Interfaces: 3.3V and 5V power, yellow/black 3-pin headers
LEGO-compatible mounting holes
Usage: Ideal for Micro:Bit IO expansion, sensor connection, and servo control
