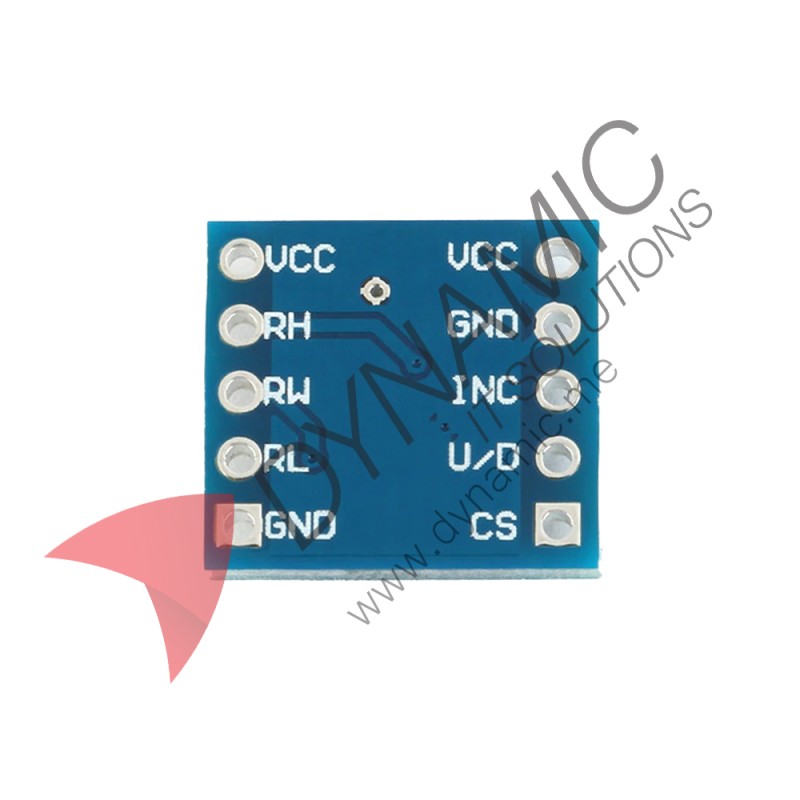

Digital Potentiometer X9C104 Module

Specifications:
- Working voltage: 5V
- Total resistance: 100KΩ
- Terminal voltage: -5~5V
- Number of taps: 100
- Interface mode: CS, U/D, INC
- Resistance increase mode: linear
- Working current: 3mA
- Package: 8SOIC
- Temperature: -40~+85 °C
- Tap position is automatically saved when power is off

Functional Description
- Temperature compensation function, resistance error between terminals: ±20%
- Sliding position data can be saved for a long time, 100 years
- Higher resistance resolution: 1%
- The changes in the digital potentiometer are stepped or incremental, and the resistance changes linearly.

E.g
X9C104, with a resistance range of 40R-100K, is divided into 100 steps, and the increment of each tap point is 1010R.
