DDS Function Signal Generator Module DIY Kit

DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
DDS Function Signal Generator Module DIY Kit
  • Availability: In Stock
  • Weight: 0.10kg
  • Package Size: 16.00cm x 12.00cm x 3.00cm
  • SKU: ELE-KIT-060
$17.50
Ex Tax: $17.50
Add to Cart
Buy Now Question?
Add to Wish List

Features:

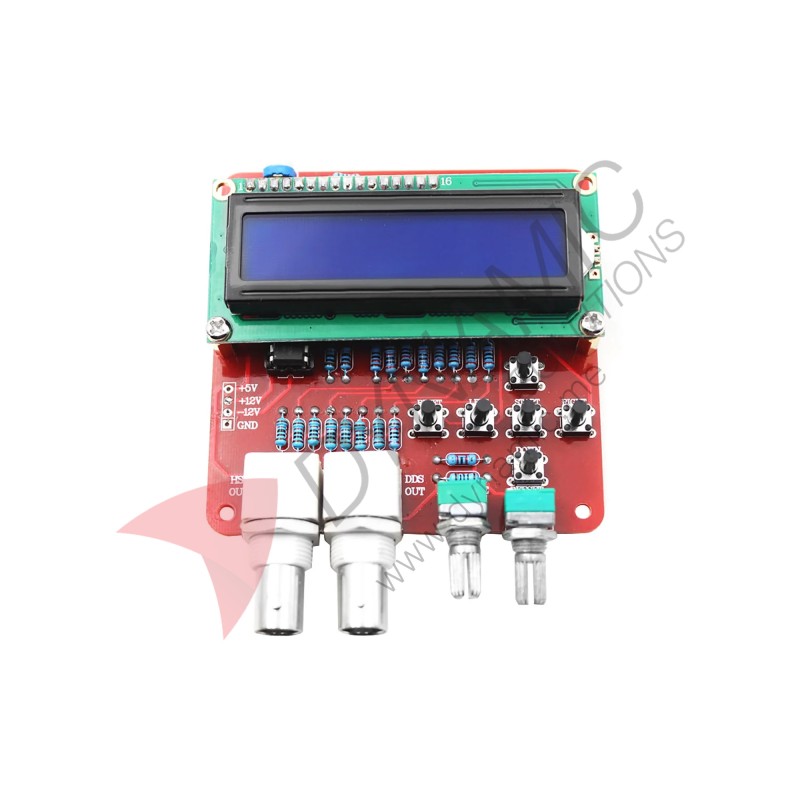

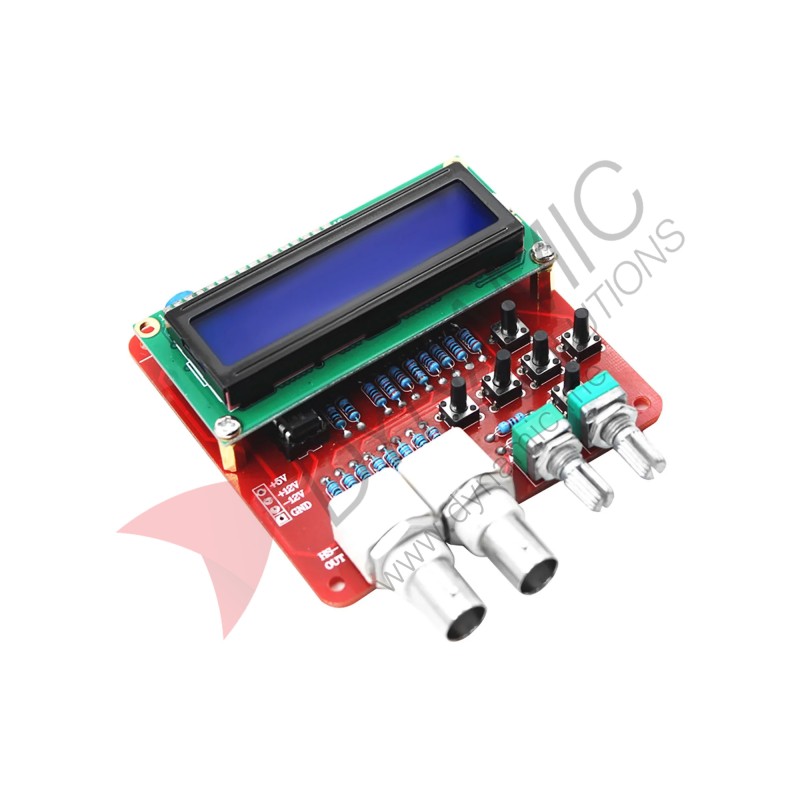

This DDS signal generator DIY kit provides a full range of waveform outputs including sine, square, triangle, and noise. It supports high-speed output up to 8MHz with adjustable amplitude and offset. An intuitive LCD menu and keypad interface allow quick frequency tuning. Perfect for electronics learners and testing applications.

Specifications:
  • Signal types: sine, square, triangle, saw, reverse saw, ECG, noise
  • High-speed signal output: 1MHz, 2MHz, 4MHz, 8MHz
  • DDS signal with variable amplitude and offset
  • Frequency step settings: 1Hz, 10Hz, 1000Hz, 10000Hz
  • Outputs: dual (1x DDS signal, 1x high-speed square wave)

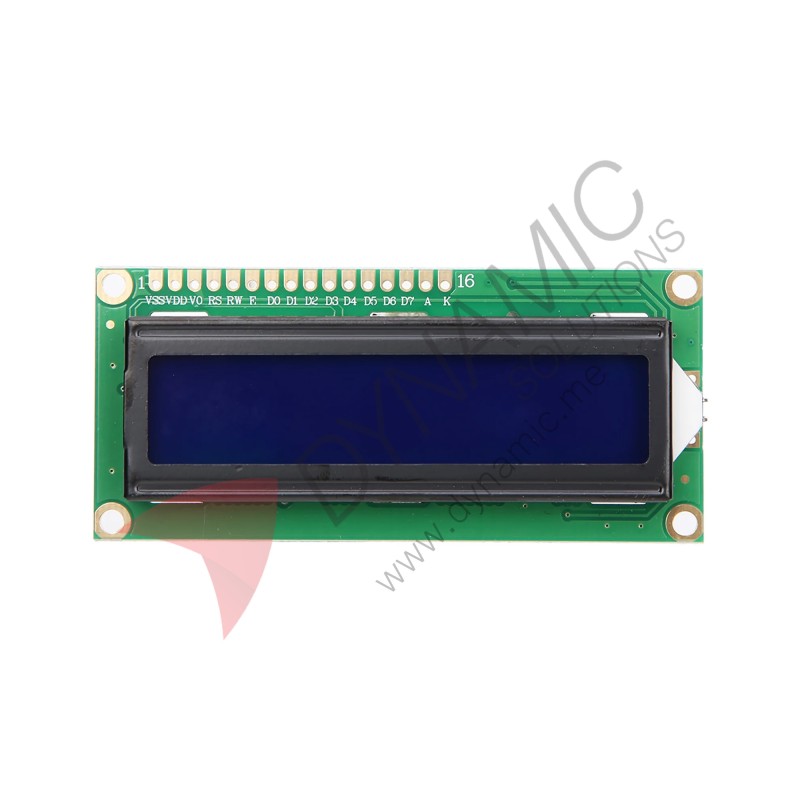

  • User interface: 5-button keypad with 2x16 character LCD
  • Power supply: +5V / +12V / -12V DC
  • Material: high-quality PCB with electronic components

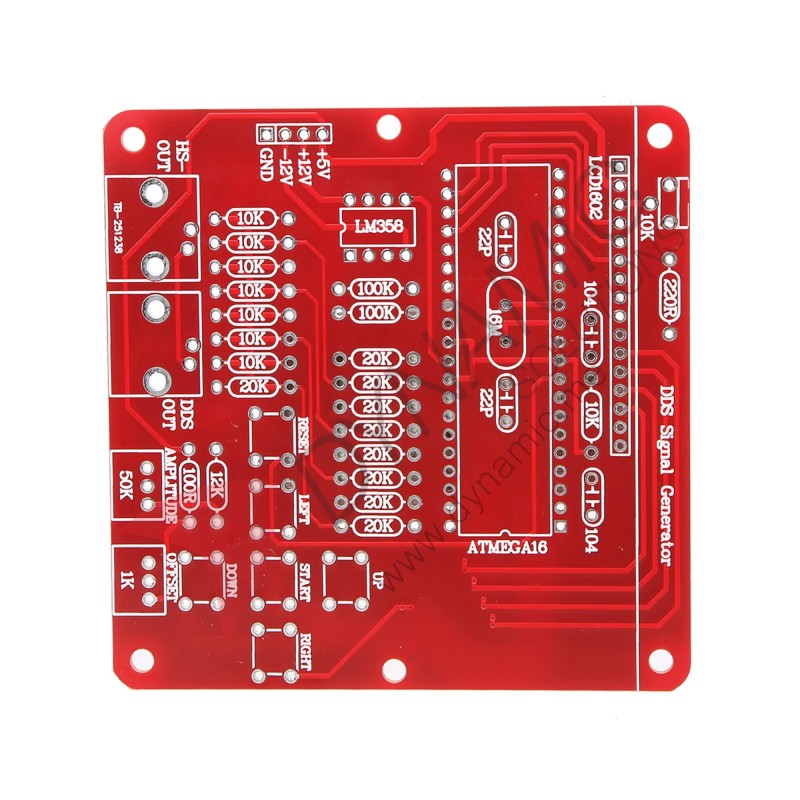

  • Red board dimensions: 80 x 80 mm
  • LCD screen size: 65 x 15 mm
  • Features: stores last config after power cycle

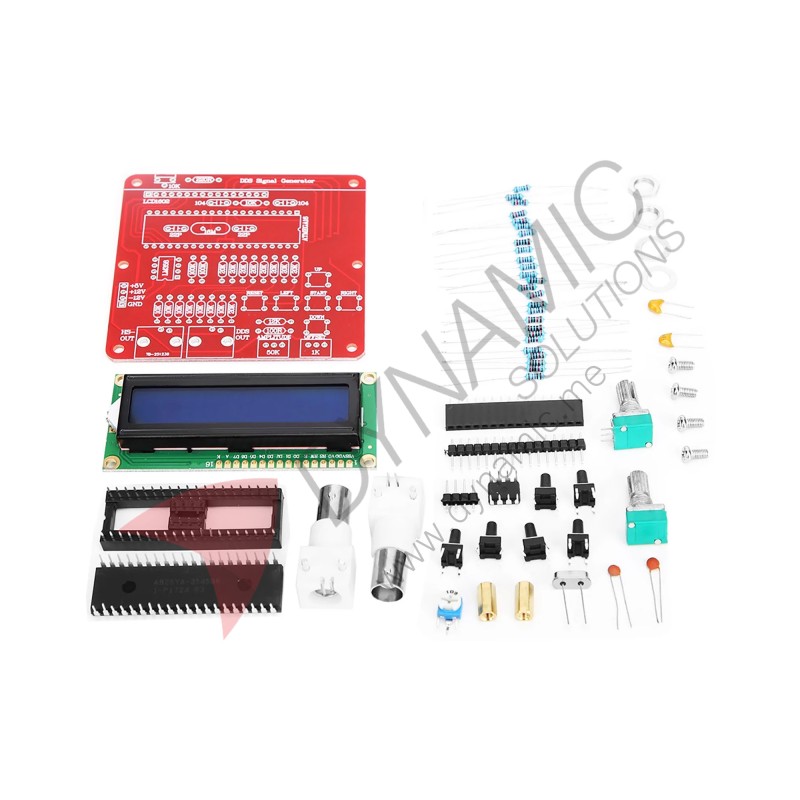

  • Package includes: component bag for full DIY assembly
