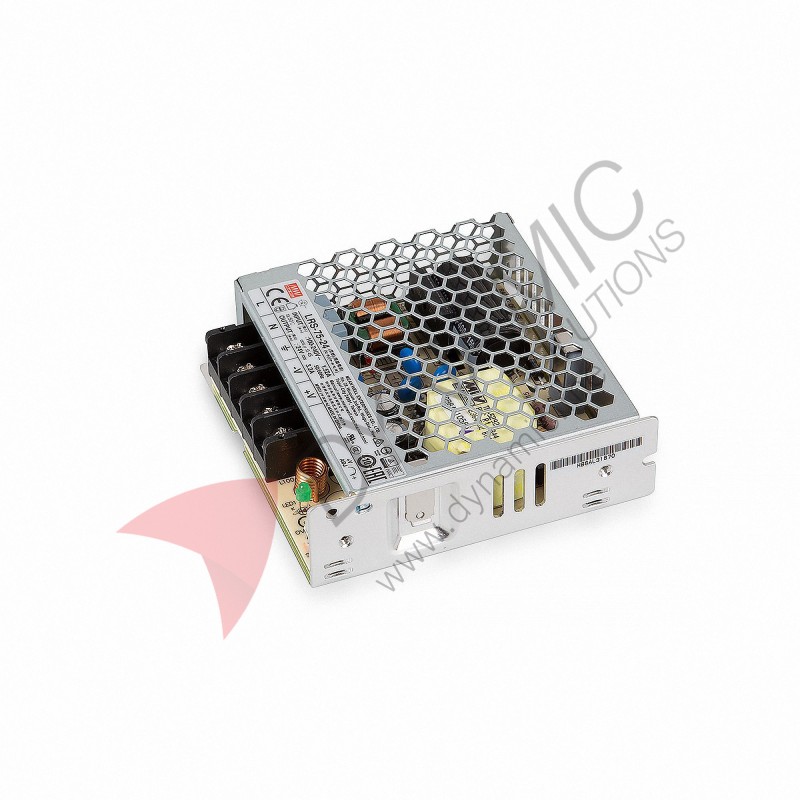

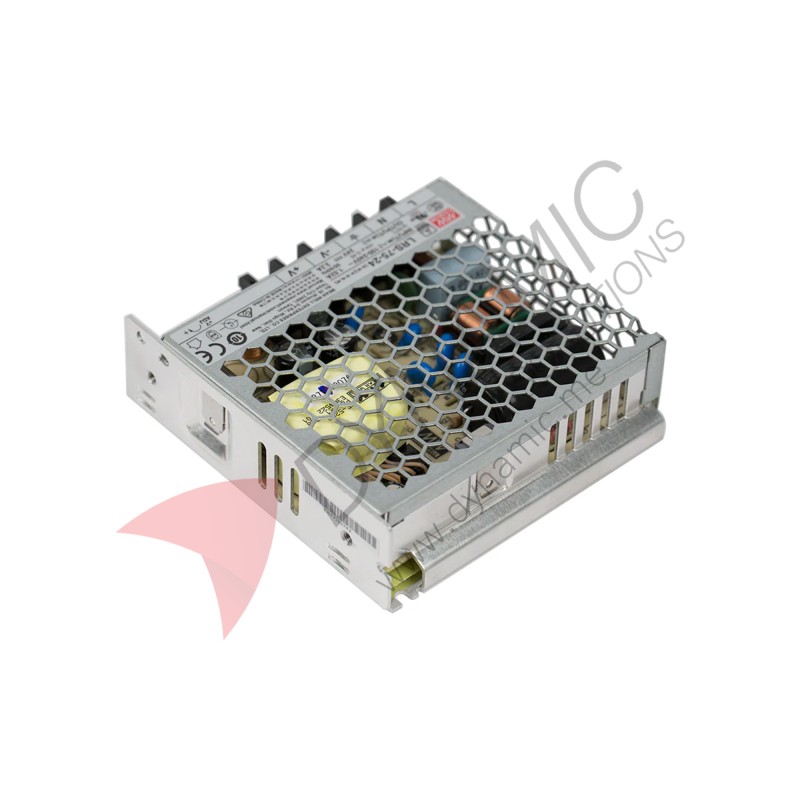

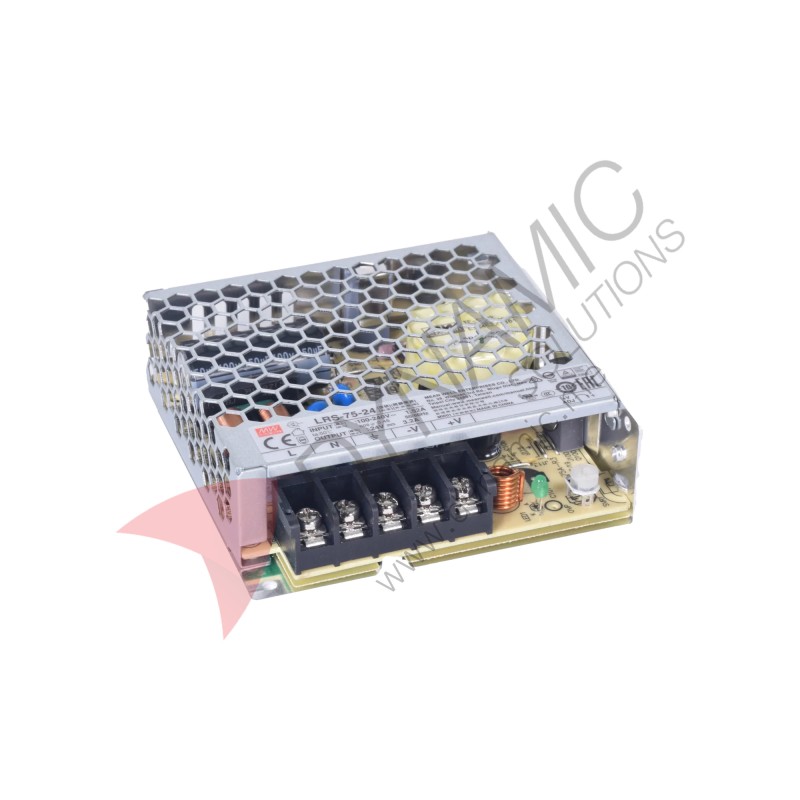

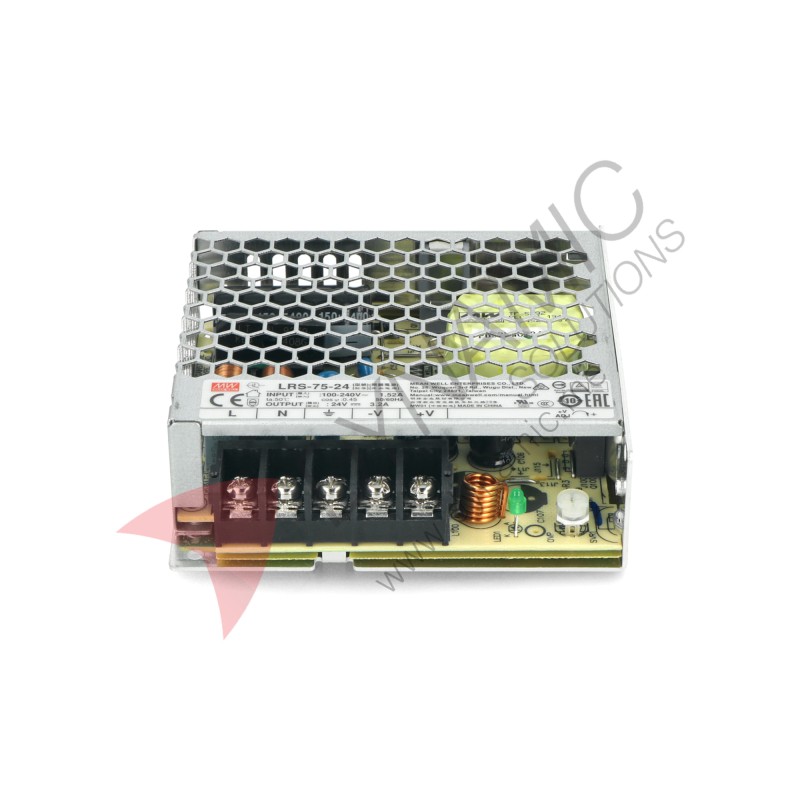

Meanwell Power Supply LRS-75-24

Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
Meanwell Power Supply LRS-75-24
  • Availability: In Stock
  • Brand: Meanwell
  • Weight: 0.23kg
  • SKU: CNC-ACC-111
Meanwell Meanwell
$26.00
Ex Tax: $26.00
Add to Cart
Buy Now Question?
Add to Wish List
Download Datasheet

Features:
The Meanwell LRS-75-24 is a 75W single output enclosed switching power supply designed with a compact 30mm low-profile case. It supports a universal 85–264VAC input, delivers a stable 24V DC output at 3.2A, and achieves up to 90% efficiency. It is suitable for industrial automation, control systems, instrumentation, and household appliances.

Specifications:
  • Model: LRS-75-24
  • Output voltage: 24V DC
  • Rated current: 3.2A
  • Current range: 0 ~ 3.2A
  • Rated power: 76.8W
  • Voltage adjustment range: 21.6 ~ 28.8V
  • Ripple & noise (max): 150mVp-p
  • Voltage tolerance: ±1.0%
  • Line regulation: ±0.5%
  • Load regulation: ±0.5%
  • Efficiency (typical): 90%
  • Input voltage range: 85 ~ 264VAC / 120 ~ 373VDC
  • Frequency range: 47 ~ 63Hz
  • AC current (typical): 1.4A/115VAC, 0.85A/230VAC
  • Inrush current: 65A (cold start, 230VAC)
  • Leakage current: <0.75mA/240VAC
  • Protection: Short circuit, overload, overvoltage
  • Operating temperature: -30 ~ +70℃ (derating applies)
  • Working humidity: 20 ~ 90% RH non-condensing
  • Storage temperature & humidity: -40 ~ +85℃, 10 ~ 95% RH
  • Vibration resistance: 10 ~ 500Hz, 5G
  • MTBF: 3334.3K hrs (Telcordia SR-332)
  • Dimensions: 99 × 97 × 30mm (L×W×H)
  • Weight: 0.23 kg
  • Cooling: Free air convection
