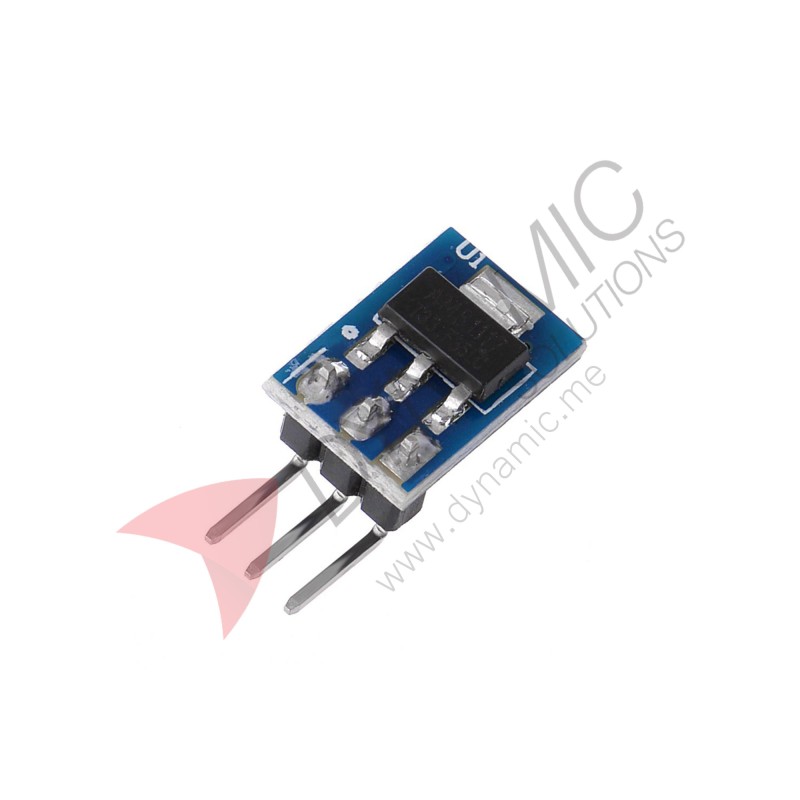

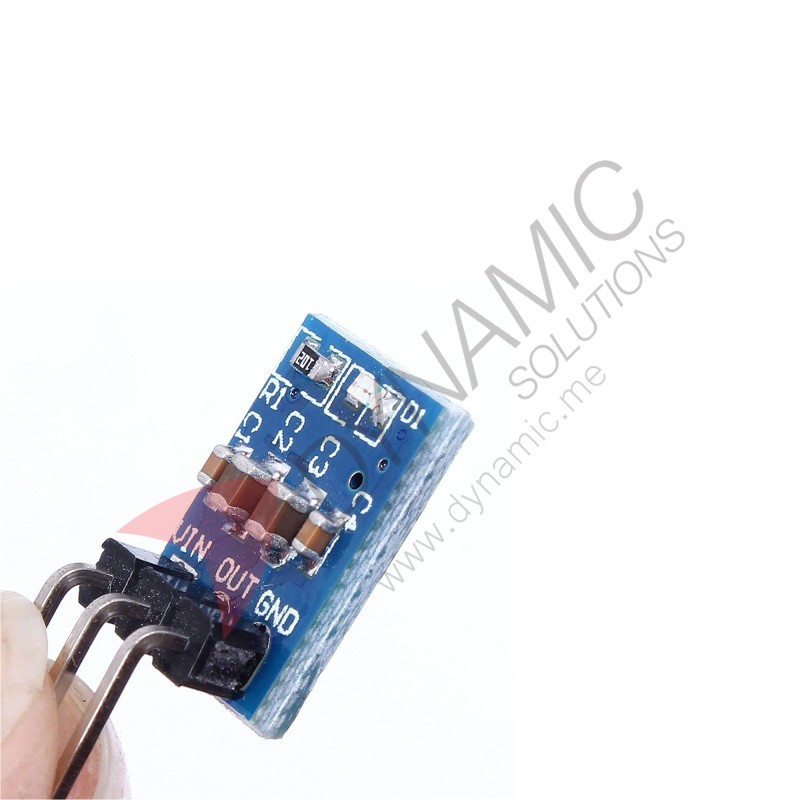

DC Voltage Regulator Step Down Power Supply Module 4.75V-12V to 3.3V 800mA
- Availability: In Stock
- Weight: 0.01kg
- Dimensions: 0.12cm x 0.80cm x 0.20cm
- SKU: ELE-SEN-110
from
$0.50
Ex Tax: $0.50
Features:
A compact step-down voltage regulator is designed for a stable 3.3V output in low-power electronic projects. Offers high precision and reliable performance with built-in current limit and thermal protection.
Specifications:
- Input Voltage: 4.75V–12V
- Output Voltage: 3.3V ±1%
- Output Current: Up to 800mA (1A max)
- Quiescent Current: ≤10mA
- Ripple Rejection: ≥60dB
- Voltage Drop (Max): 1.3V
- Current Limit: 900–1500mA
- Operating Temp: -40°C to 125°C
- Module Size: 8.6mm × 12.33mm
Note:
Do not exceed input voltage or reverse polarity to avoid damage.
Ensure proper heat dissipation to prevent overheating.
