Creality Hi Combo 3D Printer

Creality Hi SPECIFICATIONS

Printing Technology: Fused Deposition Modeling
XYZE Motor: Step-servo motor for X/Y axis; step motor for others
Build Volume: 260 × 260 × 300 mm
3D Printer Dimensions: 409 × 392 × 477 mm
Printer Package Dimensions: 650 × 460 × 240 mm
Combo Package Dimensions: 650 × 460 × 560 mm
File Transfer: USB drive/: iFi
Display Screen: 3.2" color touch screen
3D Printer Net Weight: 8.75kg
3D Printer Gross Weight: 11.58 kg
Combo Net Weight: 13.31 kg
Combo Gross Weight: 19.14 kg
Monitoring Camera: Yes
Auto Filament Relay: Yes (with CFS)
Filament Run-out Sensor: Yes
Filament Tangle Detection: Yes
Input Shaping (G-Sensor): Yes
Lighting Kit: Yes
Printing Speed: 300 mm/s typical speed; 500 mm/s max speed
Rated Voltage: AC 100~240V / 50 Hz
Acceleration: ≤ 12000 mm/s²
Rated Power: 1150W@220V; 390W@110V
Printing Accuracy: 100±0.1 mm
Supported Filaments: Hyper-PLA/PLA/PETG/ABS/PLA-CF
Layer Height: 0.1-0.35 mm
Slicing Software: Creality Print 5.1 and newer versions
Extruder: Direct drive extruder
Max Number of Filaments: 1 (without CFS); 16 (with four CFS)
Filament Diameter: 1.75 mm
UI Languages: English, German, Spanish, French, Italian, Portuguese, Turkish, Russian, Japanese, Chinese
Nozzle Type: Durable tri-metal nozzle
RFID Filament: Optional
Nozzle Diameter: 0.4 mm, compatible with 0.6/0.8 mm
Support File Formats: G-code/3MF
Nozzle Temperature: ≤ 300 ℃
CFS: Yes
Heatbed Temperature: ≤ 100 ℃
CFS Connection: ≤ 4 (Separate power source required for 2 and more units)
Build Plate: Two-sided epoxy flexible build plate
APP for Cloud Printing: Creality Cloud

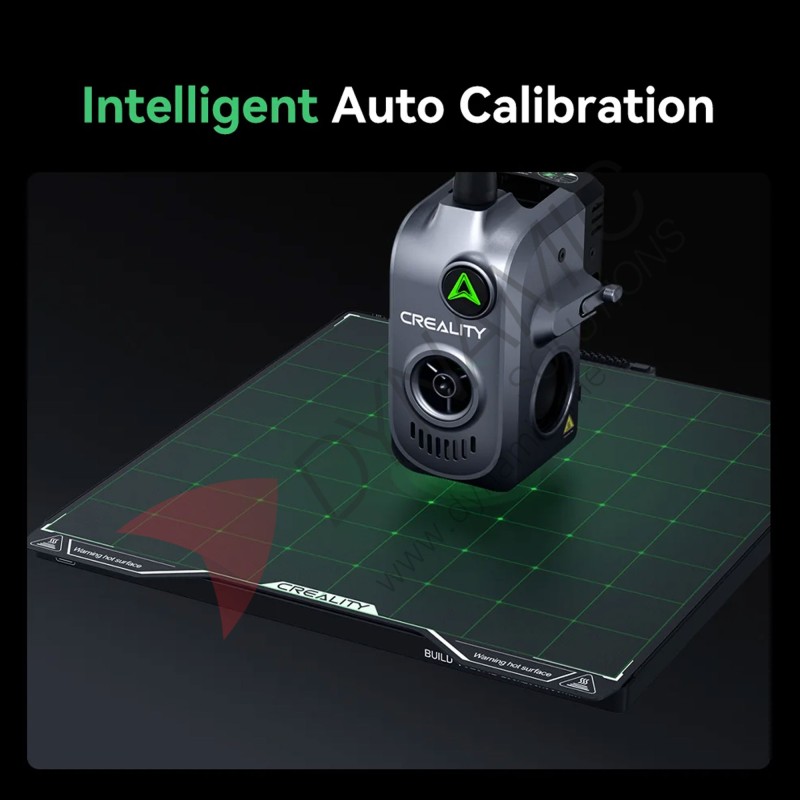

Leveling Mode: Full-auto leveling
File Storage: 8G EMMC



CFS Specifications
Product: CFS
Supported:3D Printer: Creality Hi
Dimensions: 379 x 314 x 276 mm
Connection Port: Creality 485 × 2
Net Weight: 4.56 kg
Power Supply: DC 24V
Number of Filament Slots: 4
Rated Power: 20W
Drying Method: Desiccant
Status Indicator: Indicator light (white/red) × 4
Filament Buffer: IN x 4 & OUT x 1
Display Screen: Segment LCD - showing temperature and humidity:
Number of Extensions: ≤ 4
Filament Spool Compatibility: 1 kg filament spool; diameter: 197-202 mm, thickness: 42-68 mm
RFID Filament Recognition: Yes
Supported Filaments: PLA/PETG/ABS/ASA/PET/PLA-CF
*Not compatible with flexible TPU, damp BVOH/PVA, or warped cardboard spools.
Filament Diameter: 1.75±0.05 mm
Auto Filament Relay: Yes
