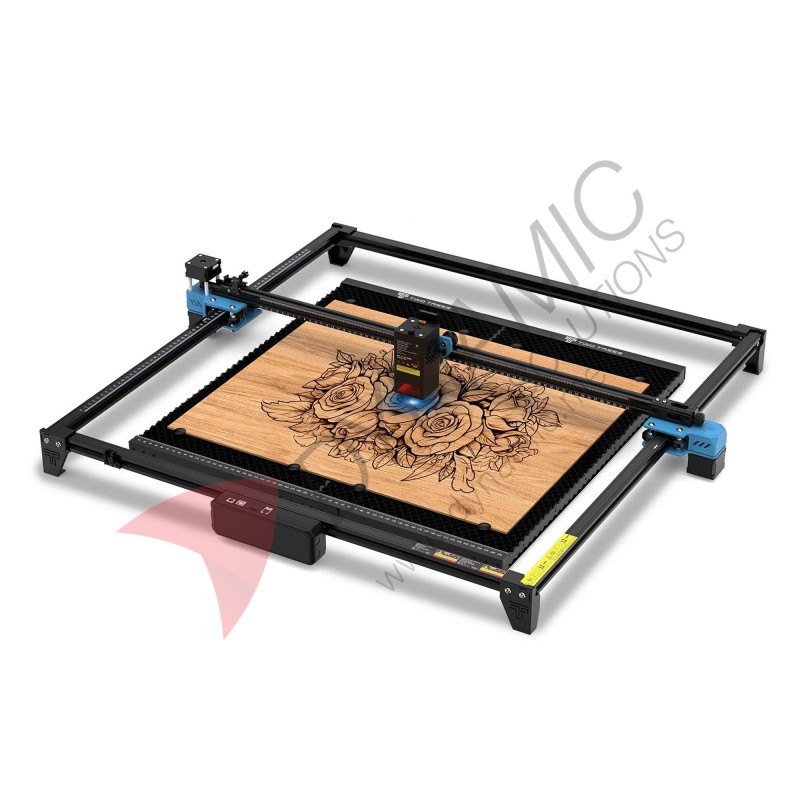

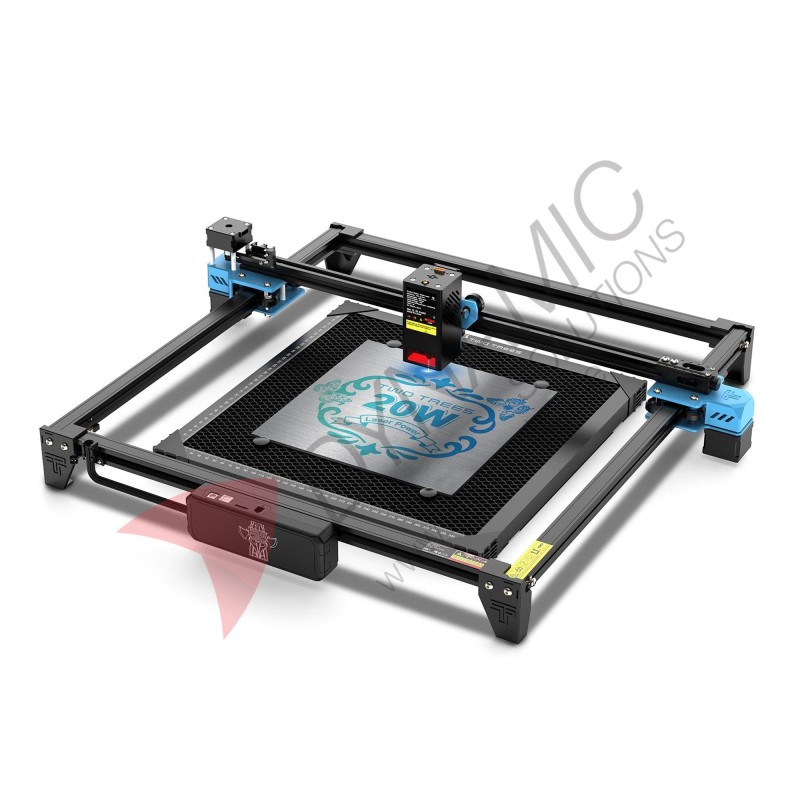

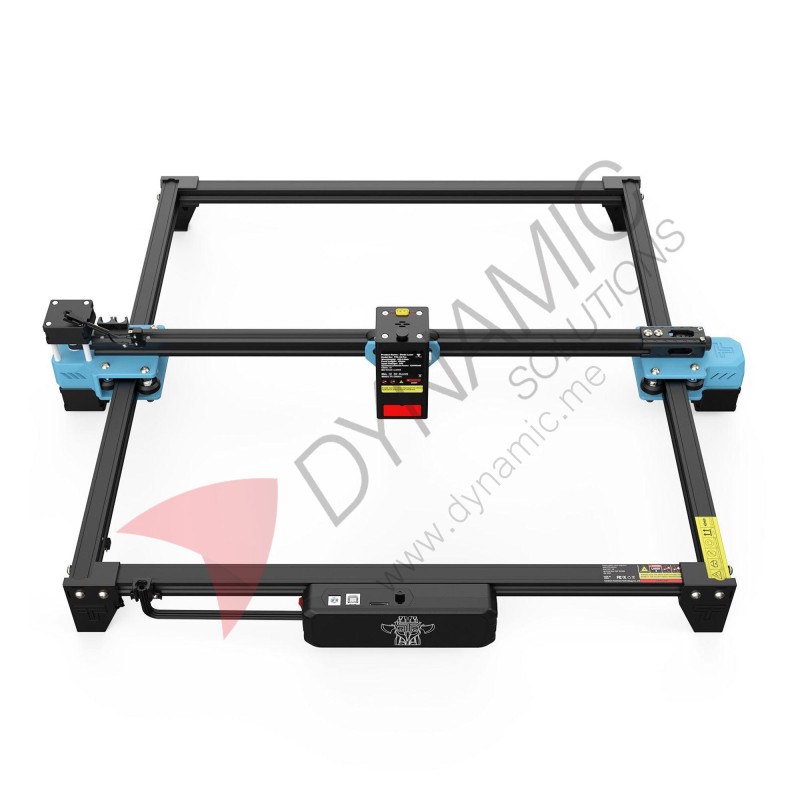

TwoTrees Laser Diode Engraver TTS-20 MAX

Model: TwoTrees Laser Diode Engraver TTS-20 MAX
Working/Engraving Area: 600 × 600 mm

Laser Power: 20 W compressed spot (COS technology), wavelength 450 ± 5 nm, output ~20 W (fr.twotrees3dofficial.com)
Spot Size: 0.08 × 0.08 mm, rectangular spot
Machine Size: 787 × 770 × 124 mm
XY Positioning Accuracy: 0.01 mm positioning; ±0.1 mm engraving precision
Engraving Speed: Up to 30,000 mm/min (≈500 mm/s)
Height Adjustment: Manual lifting module
Control Board: 32 bit mainboard with USB, Wi Fi/Bluetooth/app/web terminal support
Power Supply: 24 V 4 A DC (~96 W input)
Machine Weight: Approx. 3.6 kg
Supported Files: NC, DXF, BMP, JPG, PNG, G-code
Software Compatibility: LaserGRBL (free), LightBurn, supports Windows & macOS
Continuous Operation: Max ~6 hours recommended
Operating Conditions: 5–40 °C, 20–60 % humidity
Construction: Aluminum profile + injection-molded parts
Language Support: Multi language UI, English, German, French, Russian, Portuguese, Italian, Japanese, Korean, etc.

Notable Features & Real‑world Insights
High‑Precision Spot: Excellent spot compression for detailed engraving (0.08 mm), consistent with advanced COS diode setups
Fast & Affordable: Offers rapid engraving at high speeds—presented at a competitive price point, reflecting broader-feeling “generic” lines of Chinese diode lasers .
Material Capabilities: Designed for wood, acrylic, leather, paper, sponge, plastic, bamboo, and stainless steel (mainly marking only) .
Assembly & Control: Semi-assembled, plug‑and‑play with diverse connection options (USB, app, Wi‑Fi, webpage control)
Best Practice: Many users recommend using LightBurn and adding air assist + honeycomb bed for cleaner results
Limitations: While capable of marking coated or stainless steel, the max won’t engrave raw metal deeply—diode lasers' wavelength limits apply
